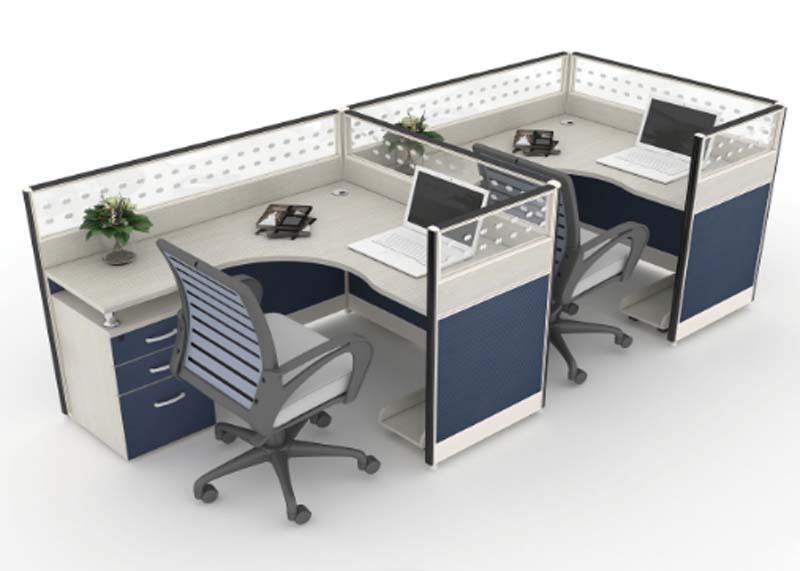

Product supplierTwo-Person Curved L-Shaped Office Cubicle Workstation with Storage Pedestals, E1-grade particle board with melamine laminate finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1830 × 1880 × 1575 mm | |
|---|---|---|
| Overall workstation footprint | 1830 x 1880 x 1575 mm | |
| Desk working surface height | 750 mm | |
| Individual L-shaped desktop per user | 1400 x 1200 mm | |
| Desktop thickness | 38 mm | |
| Privacy partition total height | 1200 mm | |
| Partition panel thickness | 41 mm | |
| Under-desk 3-drawer pedestal dimensions | 406 x 432 x 660 mm | |
| Seated knee clearance height under desktop | 650 mm | |
| Knee clearance depth per workstation | 600 mm | |
| Cable grommet diameter | 60 mm | |
| PVC edge banding thickness | 1 mm | |
| Adjustable foot leveler height adjustment range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 283 kg | |
|---|---|---|
| Uniform static desktop load capacity per user | 300 kg | |
| Fabric panel acoustic noise reduction coefficient | 0.35 | |
| Melamine surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight per workstation | 136 kg | |
| Structural warranty for metal frame and desktops | 5 years | |
| Available standard color options | 14 | |
| Caster load rating per chair caster | 50 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | E1-grade particle board with melamine laminate finish | |
|---|---|---|
| Desk edge protection | 1mm thick PVC edge banding, impact and moisture resistant | |
| Support frame and partition posts | 1.0mm thick powder-coated cold-rolled steel | |
| Lower privacy panels | Foam-padded MDF core wrapped in dark blue woven fabric | |
| Upper divider panels | Frosted perforated acrylic with aluminum trim | |
| Drawer pedestals | Melamine-finished engineered wood with steel drawer slides | |
| Drawer pulls and hardware | Brushed silver-finish steel handles and corrosion-resistant connectors | |
| Adjustable feet | Chrome-plated steel with non-slip rubber base | |
| Cable grommets | ABS plastic round desk wire pass-throughs | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Dual 60mm ABS grommets per desktop route power/data cables below work surface | |
|---|---|---|
| Under-desk storage | Three lockable drawers per user store office supplies and A4/letter files | |
| Floor leveling | 15mm adjustable steel feet compensate for uneven office flooring | |
| Privacy screening | 1200mm high dual-material dividers block line of sight and reduce cross-workstation noise | |
| Modular connectivity | Pre-drilled panel connection points allow expansion to multi-seat clusters | |
| Knee space access | Curved front desk edge creates unobstructed 600mm deep leg room for seated users | |
| Drawer operation | Smooth ball-bearing full-extension slides enable full access to drawer contents | |
| Surface maintenance | Stain, water, and scratch resistant melamine finish wipes clean with standard office cleaners | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Provides individual dedicated work zones with privacy screening for shared office spaces | |
|---|---|---|
| Small business staff work areas | Compact footprint fits two employees in minimal floor space for small office suites | |
| Call center and administrative work zones | Low-distraction partitions support focused work for administrative or call center staff | |
| Temporary project team spaces | Modular design allows quick reconfiguration for project-based team seating | |
| Startup co-working spaces | Dual seating configuration provides affordable dedicated workstations for co-working members |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and performance requirements, applicable for desktop height and load testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensional requirements for work chair fit at desk height | |
| EN 1022:2018 | Furniture stability test standard applicable for freestanding workstation structural validation | |
| EN 12521:2015 | Resistance to surface damage requirements for laminate work surfaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | Office chairs standard for compatibility with desk knee clearance dimensions | |
| ANSI/BIFMA X5.6-2022 | Panel systems performance standard for partition durability and stability | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and recycled content validation |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for desktop and pedestal construction | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks, applicable for load and stability validation | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood products, mandatory for E1-grade board verification | |
| GB/T 3326-2016 | Furniture dimensional and tolerance standards for desk and seating clearance verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for desktop and pedestal construction; 2. GB/T 3327-2017: Performance test methods for office desks, applicable for load and stability validation; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood products, mandatory for E1-grade board verification; 4. GB/T 3326-2016: Furniture dimensional and tolerance standards for desk and seating clearance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
