PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1500 × 1200 mm
Overall workstation dimensions	1600 x 1500 x 1200 mm
Work surface height	750 mm
Work surface thickness	25 mm
Privacy partition total height	1200 mm
Privacy partition panel thickness	60 mm
Mobile storage pedestal dimensions	400 x 500 x 650 mm
Corner cable grommet diameter	80 mm
Seated knee clearance width at entry	800 mm
Under-desk knee clearance height	650 mm
Partition frame profile thickness	1.2 mm
Side modesty panel height	650 mm
Edge banding thickness	2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface static load capacity	150 kg
Pedestal caster rolling durability	20000 cycles
Drawer slide operational durability	50000 cycles
Workstation net weight (without packaging)	85 kg
Recommended user weight capacity	150 kg
Work surface finish abrasion resistance	2000 cycles
Warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural frame	Powder-coated aluminum alloy
Work surface substrate	E0-grade melamine-faced MFC board
Work surface edge banding	2mm thick PVC edge trim
Privacy partition panels	Fabric-wrapped fiberboard with upper open metal frame
Under-desk modesty panels	White melamine-faced MFC board
Mobile pedestal body	Powder-coated cold-rolled steel
Pedestal drawer pull	Brushed aluminum alloy handle
Cable grommet	ABS plastic
Adjustable foot glides	Nylon with steel threaded insert
Frame surface finish	Electrostatic powder coating
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management grommet	80mm round pass-through at worktop corner
Mobile storage pedestal	Lockable rolling unit with 1 utility drawer and 1 storage cabinet
Modular connection design	Pre-drilled frame connection points for linking to adjacent workstations
Adjustable leveler feet	Threaded nylon glides at all frame base points
Partial height privacy screen	1200mm tall panels with open upper frame sections
Curved corner knee well	Concave cutout at L-corner for seated user access
Pedestal caster mobility	Four swivel casters on mobile pedestal base
Tackable fabric partition surface	Woven fabric panel facing user side
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office layouts	Single-seat cubicle for individual staff work positions
Small business workspaces	Standalone L-shaped workstation for startup or branch office setups
Administrative and clerical work areas	Suited for data entry, document processing and general desk tasks
Modular office expansion projects	Connectable unit for growing teams adding workstations
Back-office support departments	Ideal for HR, finance and operations staff roles
Temporary office fit-outs	Quick-assembly knock-down design for short-term leased spaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applies to seated-height work surface
EN 1335-1:2020	Office furniture reference for seated workstation clearance dimensions
EN 1022:2019	Furniture seating stability standard reference for workstation load testing
EN 71-3:2019+A1:2021	Migration of certain elements standard for accessible furniture components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products safety and performance standard, applicable to work surface load testing
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to mobile pedestal drawer and cabinet performance
ANSI/BIFMA X5.6-2022	Panel systems standard, applicable to modular partition frame and panel durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to MFC worktop and panel components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel pedestal and frame components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E0 grade ≤0.05mg/m³ for worktop substrate
GB/T 4893.8-2013	Surface abrasion resistance test method for furniture finishes, applicable to melamine worktop

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to MFC worktop and panel components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel pedestal and frame components;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E0 grade ≤0.05mg/m³ for worktop substrate;
4. GB/T 4893.8-2013: Surface abrasion resistance test method for furniture finishes, applicable to melamine worktop;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L-CURV-1600-BLUE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L-CURV-1600-BLUE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L-CURV-1600-BLUEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

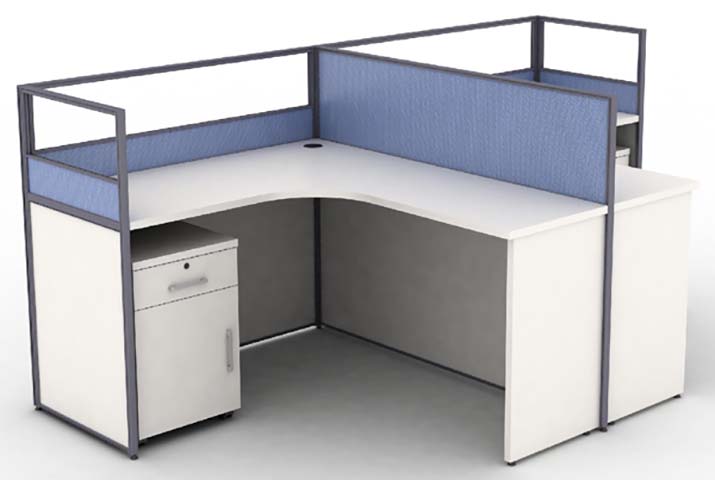

This unbranded L-shaped single-seat modular office cubicle workstation, model WS-L-CURV-1600-BLUE, delivers a balanced combination of personal privacy, functional workspace, and flexible configuration for commercial office environments. Its overall form follows a low-profile L-shaped layout, with 1200mm tall blue fabric-wrapped privacy panels topped with open metal frame sections that define a dedicated individual work zone without fully blocking ambient light or cross-room visibility. The curved concave cutout at the L-shaped corner creates a comfortable seated knee well, paired with 800mm of entry knee clearance and a 750mm high work surface set to standard ergonomic desk height. The white melamine-faced worktop sits on a powder-coated aluminum alloy frame, with 25mm thick E0-grade MFC substrate finished with 2mm PVC edge trim for clean, durable edges. Matching white melamine-faced MFC modesty panels are mounted under the desk surface, while an 80mm round ABS cable grommet at the worktop corner supports integrated cable routing. Each workstation includes a lockable powder-coated cold-rolled steel mobile storage pedestal, fitted with a brushed aluminum alloy handle, one utility drawer, one enclosed storage cabinet, and four swivel casters for easy repositioning. Threaded nylon adjustable foot glides with steel inserts at every frame base point allow stable leveling on uneven flooring. The work surface supports a 150kg static load, with abrasion-resistant finish rated for 2000 cycles of use; pedestal casters deliver 20000 cycles of rolling durability, and drawer slides support 50000 operational cycles, backed by a 3-year warranty. Pre-drilled connection points on the frame enable seamless linking to adjacent matching units for scaled layouts. This workstation is suited for open-plan office individual staff positions, small business and startup workspaces, administrative and clerical zones for data entry and document processing, back-office HR, finance and operations departments, modular team expansion projects, and temporary fit-outs for short-term leased spaces, with a knock-down design that allows 40 minutes of assembly time per set. Procurement teams should note units ship as one set across multiple cartons, with a total packaged gross weight of 180kg and 1 cubic meter of packaging volume per set; the unbranded model offers flexible, reconfigurable seating without fixed long-term layout constraints.

L-Shaped Single-Seat Modular Office Cubicle Workstation with Mobile Storage Pedestal Specifications
