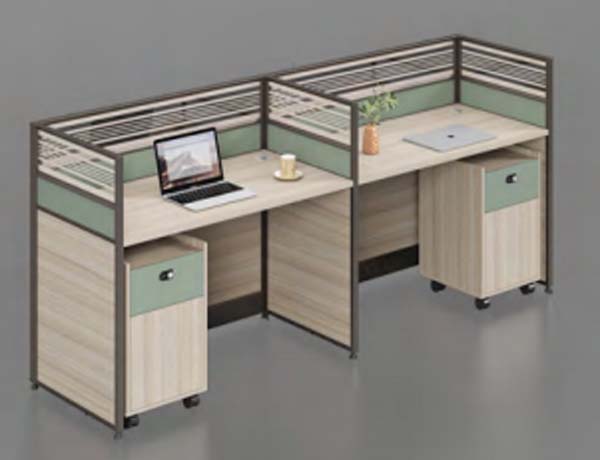

Name: 2-Person L-Shaped Office Cubicle Workstation with Mobile Pedestals
Brand: Fanshidun
SKU: 4TB06F

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3020 × 1530 × 1200 mm
Overall footprint	3020 x 1530 x 1200 mm
Work surface height	750 mm
Individual work surface size per position	1200 x 600 mm
Seated knee clearance height under desktop	650 mm
Seated knee clearance width per position	600 mm
Partition panel total height	1200 mm
Desktop panel thickness	25 mm
Privacy partition panel thickness	60 mm
Mobile drawer pedestal dimensions (with casters)	394 x 502 x 603 mm
Frame member wall thickness	2 mm
Lower modesty panel height	400 mm
Cable grommet diameter per work position	60 mm
Caster wheel diameter on mobile pedestals	50 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load capacity per work surface	150 kg
Recommended maximum user weight per work position	136 kg
Melamine surface abrasion resistance	2000 cycles
Drawer glide cycle durability	50000 cycles
Caster rolling durability	40000 cycles
Manufacturer warranty period	10 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface and modesty panels	25mm E1-grade melamine-faced chipboard with 2mm PVC edge banding
Partition frame structure	2mm thick powder-coated dark gray steel
Middle partition accent panels	Particleboard core wrapped in sage green commercial polyester fabric
Upper partition sections	Perforated steel mesh with matching powder-coated finish
Mobile pedestal body	18mm light wood grain melamine-faced engineered wood
Mobile pedestal lockable drawer front	Sage green painted engineered wood matching partition accents
Drawer glide hardware	Cold-rolled steel full-extension suspension slides
Pedestal casters	Black nylon dual-wheel casters, 2 lockable per unit
Cable management grommets	Injection-molded ABS plastic with brush insert
Frame leveling feet	Injection-molded nylon with adjustable steel insert
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular partition configuration	Interlocking screen panels form separate private work zones for two seated users
Mobile pedestal storage	Each position includes a rolling 3-drawer pedestal with one lockable top drawer
Cable management system	Dual 60mm desktop grommets route power and data cables to under-desk raceways
Partition light transmission	Perforated upper mesh panels allow natural light flow while maintaining seated privacy
Pedestal mobility	Dual-wheel casters allow pedestals to be repositioned or removed for flexible under-desk access
Modesty panel privacy	Solid lower panels block seated leg visibility from adjacent positions and walkways
Frame leveling adjustment	Adjustable base feet compensate for uneven floor surfaces to keep work surfaces level
Drawer lock function	Keyed lock on pedestal top drawer secures personal office supplies and documents
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Provides semi-private work zones for two employees while maintaining open sightlines above partitions
Small business corner office layouts	Fits unused corner space to maximize floor area efficiency for two-person teams
Startup and co-working spaces	Modular design supports flexible reconfiguration as team sizes change over time
Administrative and back-office departments	Includes integrated under-desk storage to organize office supplies and paperwork
Call center and customer service zones	Partition height reduces cross-talk distraction while allowing supervisor visibility
Hybrid work shared workspaces	Mobile pedestals can be repositioned to support hot-desking use cases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop and frame performance
EN 1335-2:2009	Office chair compatibility dimensions for seated knee clearance requirements
EN 1023-2:2000	Storage furniture safety requirements applicable to mobile drawer pedestals
EN 13722:2004	Office furniture performance requirements for movable storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for static load, durability and stability testing
ANSI/BIFMA X5.9-2019	Storage units standard for mobile pedestal drawer and caster performance
ANSI/BIFMA X7.1-2022	Formaldehyde emission standard for low-emitting office furniture components

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desktops and pedestals
GB/T 3327-2017	Performance requirements for office desks and workstations, applicable to load testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1-grade substrate
GB/T 24821-2009	Safety requirements for office panel furniture, applicable to partition frames and edges

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desktops and pedestals;
2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to load testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade substrate;
4. GB/T 24821-2009: Safety requirements for office panel furniture, applicable to partition frames and edges;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L2-WSG-02

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L2-WSG-02

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L2-WSG-02Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun CUB-L2-WSG-02 is a 2-person L-shaped office cubicle workstation designed to balance personal privacy, collaborative accessibility, and space efficiency for shared work environments. Its angular L-layout creates two distinct dedicated work positions oriented to make use of corner floor space, with 1200mm tall privacy partitions separating the two zones. Upper partition sections use perforated steel mesh to preserve natural light flow and open sightlines above seated eye level, while lower solid modesty panels block leg visibility from adjacent seats and walkways, and central accent panels are wrapped in soft sage green commercial polyester fabric paired with a dark gray powder-coated steel frame for a polished, professional aesthetic. All work surfaces and modesty panels are constructed from 25mm E1-grade melamine-faced chipboard with 2mm PVC edge banding, finished in a light wood tone that complements the sage green accent details and matte dark gray frame. Each 1200mm x 600mm work surface sits at a standard 750mm height, with 650mm of seated knee clearance below, supported by a steel frame fitted with adjustable base feet to compensate for uneven flooring. Every position includes a matching mobile pedestal built from 18mm light wood grain melamine-faced engineered wood, with a lockable sage green top drawer, full-extension cold-rolled steel drawer glides, and black nylon dual-wheel casters (two lockable per unit) that allow the pedestal to be repositioned or fully removed for flexible under-desk access. Integrated cable management uses dual injection-molded ABS grommets with brush inserts on each desktop to route power and data cords to under-desk raceways, reducing surface clutter. This workstation supports a 150kg static load per work surface, with a 10-year manufacturer warranty covering core construction and hardware durability. It is well suited for open-plan office staff areas, small business corner layouts, startup and co-working spaces, administrative back-office departments, call center zones, and hybrid work shared environments, where its modular interlocking panel design supports flexible reconfiguration as team needs shift. For procurement, note that each unit ships in two cartons, requires 40 minutes of assembly per set, and is delivered with all required hardware including lockable casters, cable management components, and matching storage pedestals to avoid separate accessory purchases.

2-Person L-Shaped Office Cubicle Workstation with Mobile Pedestals Specifications
