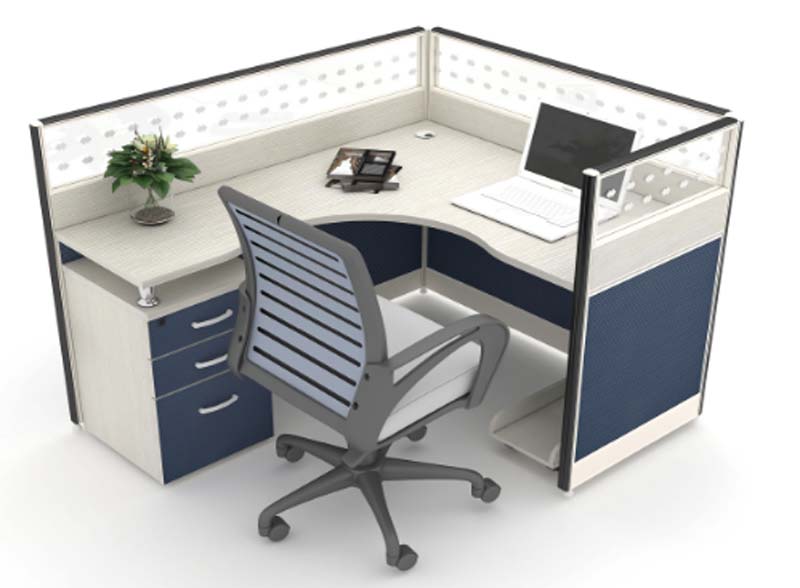

Single-User L-Shaped Curved Corner Office Cubicle Workstation with Integrated 3-Drawer Pedestal and Right Open Shelf (model CUB-L1800-CRV-3DRW) is listed under L-Shaped Office Desk. Dimensions: 1800 × 1800 × 1200 mm. Materials: E1 grade melamine-faced particle board, 25mm thick. Load capacity: 80 kg. Product Features: blue-white,color,scheme,partial-height,privacy,screens,L-shaped,curved,work,integrated,drawer,storage,under-desk,open,shelf. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | KANAITE | Model | CUB-L1800-CRV-3DRW |
| Overall dimensions (W × D × H) | 1800 × 1800 × 1200 mm | overall workstation footprint | 1800 x 1800 x 1200 mm |
| desk work surface height | 760 mm | single-side desk surface depth | 600 mm |
| desk panel thickness | 25 mm | privacy partition overall thickness | 60 mm |
| partition lower fabric panel height | 900 mm | partition upper translucent panel height | 300 mm |
| 3-drawer fixed pedestal dimensions | 420 x 550 x 725 mm | knee well clear width | 800 mm |
| knee well clear height under desk | 680 mm | right under-desk open shelf dimensions | 400 x 500 x 300 mm |
| support leg diameter | 50 mm | partition frame extrusion width | 40 mm |
| Carcass Panel Thickness | 25 mm | Back Panel Thickness | 9 mm |
| Door / Drawer Front Thickness | 22 mm | desk surface uniform static load capacity | 80 kg |
| drawer slide open/close cycle life | 50000 cycles | workstation net weight range | 75 kg |
| upper partition panel light transmittance | 50% | adjustable leveling foot adjustment range | 15 mm |
| applicable user count | 1 person | standard commercial product warranty | 5 years |
| Shelf Distributed Load | 30 kg/shelf | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Hinge Opening Angle / Life | 165°; 80000 cycles | desk work surface substrate | E1 grade melamine-faced particle board, 25mm thick |
| desk edge banding | 2mm thick PVC wear-resistant edge trim, rounded curved profile | lower partition panel | Dark blue woven fabric-wrapped sound-dampening panel over fiberboard core |
| upper partition panel | Frosted translucent acrylic panel with punched ventilation dot pattern | partition support frame | Black powder-coated aluminum alloy extrusion, 1.2mm wall thickness |
| drawer fronts | Dark blue melamine-faced particle board with curved white ABS pull handles | pedestal cabinet carcass | Light off-white melamine-faced particle board, matching desk surface finish |
| desk support leg | Polished chrome-plated steel cylindrical leg, fixed at desk-pedestal junction | drawer slide hardware | Cold-rolled steel 3-section ball-bearing slides, electroplated zinc finish |
| pedestal lock | Brass-keyed central cam lock controlling all 3 drawers | leveling feet | Reinforced nylon adjustable feet at partition and cabinet base |
| Edge Band Thickness | 2 mm | central drawer locking system | Single keyed lock secures all 3 pedestal drawers simultaneously for personal storage security |
| drawer extension | 3-section full-extension ball-bearing slides allow full drawer access for office supply storage | integrated cable management | Partition internal routing channels and pre-drilled desk grommets organize power and data cables |
| privacy partition design | 1200mm tall three-sided panels block seated line of sight between adjacent workstations | under-desk right open shelf | Fixed open compartment provides storage for CPU tower, personal items or office documents |
| floor leveling adjustment | Adjustable feet at base compensate for uneven office flooring to keep desk surface stable | curved work surface design | Rounded front corner edge reduces contact pressure and improves seated movement range |
| modular connection capability | Partition frame connectors allow linking multiple identical workstations into larger open-plan office layouts | Cable / Vent Opening Reference | If fitted, 80 mm diameter |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
| Reference Packaging Volume | 0.65 m³/set | open-plan office staff workstations | Suitable for corporate administrative, data entry and general staff work areas with modular layout needs |
| call center and shared office spaces | Provides individual privacy and dedicated storage for high-density seated work environments | government and institutional offices | Meets durability and storage requirements for long-term daily public sector office use |
| startup and small business offices | Compact L-shape maximizes floor space efficiency for small open office footprints | training room dedicated workstations | Fixed storage and cable management support long-duration training and computer-based work |
| single-user home office setups | Integrated storage and privacy panels suit dedicated professional work-from-home spaces | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1800 × 1200 mm | |
|---|---|---|
| overall workstation footprint | 1800 x 1800 x 1200 mm | |
| desk work surface height | 760 mm | |
| single-side desk surface depth | 600 mm | |
| desk panel thickness | 25 mm | |
| privacy partition overall thickness | 60 mm | |
| partition lower fabric panel height | 900 mm | |
| partition upper translucent panel height | 300 mm | |
| 3-drawer fixed pedestal dimensions | 420 x 550 x 725 mm | |
| knee well clear width | 800 mm | |
| knee well clear height under desk | 680 mm | |
| right under-desk open shelf dimensions | 400 x 500 x 300 mm | |
| support leg diameter | 50 mm | |
| partition frame extrusion width | 40 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desk surface uniform static load capacity | 80 kg | |
|---|---|---|
| drawer slide open/close cycle life | 50000 cycles | |
| workstation net weight range | 75 kg | |
| upper partition panel light transmittance | 50% | |
| adjustable leveling foot adjustment range | 15 mm | |
| applicable user count | 1 person | |
| standard commercial product warranty | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| desk work surface substrate | E1 grade melamine-faced particle board, 25mm thick | |
|---|---|---|
| desk edge banding | 2mm thick PVC wear-resistant edge trim, rounded curved profile | |
| lower partition panel | Dark blue woven fabric-wrapped sound-dampening panel over fiberboard core | |
| upper partition panel | Frosted translucent acrylic panel with punched ventilation dot pattern | |
| partition support frame | Black powder-coated aluminum alloy extrusion, 1.2mm wall thickness | |
| drawer fronts | Dark blue melamine-faced particle board with curved white ABS pull handles | |
| pedestal cabinet carcass | Light off-white melamine-faced particle board, matching desk surface finish | |
| desk support leg | Polished chrome-plated steel cylindrical leg, fixed at desk-pedestal junction | |
| drawer slide hardware | Cold-rolled steel 3-section ball-bearing slides, electroplated zinc finish | |
| pedestal lock | Brass-keyed central cam lock controlling all 3 drawers | |
| leveling feet | Reinforced nylon adjustable feet at partition and cabinet base | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| central drawer locking system | Single keyed lock secures all 3 pedestal drawers simultaneously for personal storage security | |
|---|---|---|
| drawer extension | 3-section full-extension ball-bearing slides allow full drawer access for office supply storage | |
| integrated cable management | Partition internal routing channels and pre-drilled desk grommets organize power and data cables | |
| privacy partition design | 1200mm tall three-sided panels block seated line of sight between adjacent workstations | |
| under-desk right open shelf | Fixed open compartment provides storage for CPU tower, personal items or office documents | |
| floor leveling adjustment | Adjustable feet at base compensate for uneven office flooring to keep desk surface stable | |
| curved work surface design | Rounded front corner edge reduces contact pressure and improves seated movement range | |
| modular connection capability | Partition frame connectors allow linking multiple identical workstations into larger open-plan office layouts | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open-plan office staff workstations | Suitable for corporate administrative, data entry and general staff work areas with modular layout needs | |
|---|---|---|
| call center and shared office spaces | Provides individual privacy and dedicated storage for high-density seated work environments | |
| government and institutional offices | Meets durability and storage requirements for long-term daily public sector office use | |
| startup and small business offices | Compact L-shape maximizes floor space efficiency for small open office footprints | |
| training room dedicated workstations | Fixed storage and cable management support long-duration training and computer-based work | |
| single-user home office setups | Integrated storage and privacy panels suit dedicated professional work-from-home spaces |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable European standard for office desk strength, durability and stability requirements | |
|---|---|---|
| EN 1335-1:2020 | Applicable reference standard for workstation ergonomic clearance dimensions for seated use | |
| EN 1022:2018 | Applicable standard for seating and desk furniture stability verification for commercial use | |
| EN 71-3:2019+A1:2021 | Applicable standard for restriction of hazardous substances in furniture materials |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable standard for desk products static and dynamic load performance testing | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Applicable standard for panel systems/cubicle structural integrity and durability | |
| ANSI/BIFMA e3-2019e | Applicable sustainability standard for office furniture VOC and material emissions | |
| ANSI/BIFMA X5.9-2019 | Applicable standard for storage unit/pedestal load and cycle performance |
Standards applicable to China-market projects
| GB 18580-2017 | Applicable standard for formaldehyde emission limits of wood-based panel materials used in the workstation | |
|---|---|---|
| GB/T 3324-2017 | Applicable general technical requirement standard for wooden office furniture durability and dimensions | |
| GB/T 4897.3-2015 | Applicable standard for particle board substrate used for desk and cabinet panels | |
| GB 28007-2011 | Applicable standard for office furniture mechanical safety and stability requirements |
This product must meet the following technical requirements: 1. GB 18580-2017: Applicable standard for formaldehyde emission limits of wood-based panel materials used in the workstation; 2. GB/T 3324-2017: Applicable general technical requirement standard for wooden office furniture durability and dimensions; 3. GB/T 4897.3-2015: Applicable standard for particle board substrate used for desk and cabinet panels; 4. GB 28007-2011: Applicable standard for office furniture mechanical safety and stability requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
