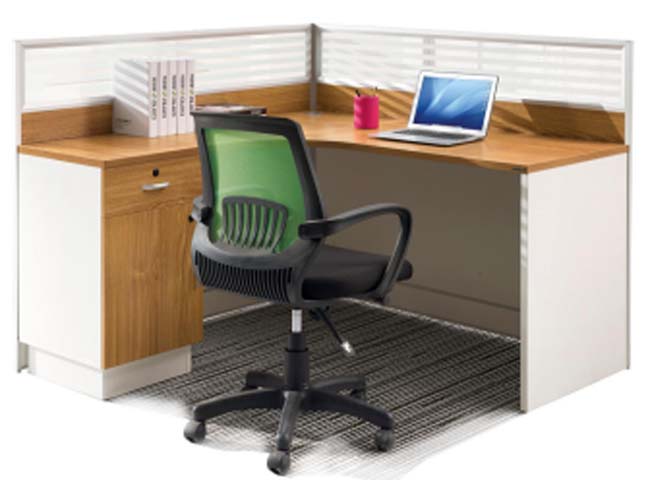

Product supplierL-Shaped Panel Workstation with Mobile Task Chair, 25 mm melamine-faced particleboard with sealed PVC edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Workstation static load capacity | 100 kg | |
|---|---|---|
| Chair recommended user weight | 120 kg | |
| Task chair net weight | 11 kg | |
| Five-star base static-load reference | 500 kg | |
| Caster rolling durability reference | 40000 cycles | |
| Seating capacity | 1 person | |
| Desktop distributed load | 60 kg | |
| Warranty target | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and returns | 25 mm melamine-faced particleboard with sealed PVC edges | |
|---|---|---|
| Storage pedestal | 18 mm melamine-faced particleboard carcass with wood-tone drawer front and off-white side panels | |
| Partition frame | Aluminum-alloy uprights and rails with light gray powder coating | |
| Upper privacy screen | Translucent ribbed polymer or glass-filled acrylic panel in aluminum frame | |
| Lower screen and modesty panel | Laminate-coated wood-composite panel with solid privacy face | |
| Drawer hardware | Steel drawer slide, steel lock cylinder, and aluminum or zinc-alloy horizontal handle |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | L-shaped desktop provides a laptop zone on the right and storage-supported task surface on the left | |
|---|---|---|
| Privacy and division | Three-sided partition screen separates one workstation and limits direct sightlines | |
| Storage operation | Left pedestal includes one lockable shallow drawer above one enclosed cabinet compartment | |
| Chair height adjustment | Pneumatic cylinder adjusts seat height over a 100 mm stroke using the under-seat lever |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for one employee in call centers, admin teams, or clerical zones because the screen adds privacy while retaining compact L-shaped storage | |
|---|---|---|
| Small private workstation | Fits reception-back offices, accounting desks, or laptop-based administrative work requiring document storage and seated task support |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 applicability | Use for office desk safety, strength, and dimensional requirements of the workstation top | |
|---|---|---|
| EN 527-2:2002 applicability | Use for mechanical safety, stability, and strength testing of the desk structure | |
| EN 1335-1:2020 applicability | Use for office task-chair dimensions and seated ergonomic verification | |
| EN 1335-2:2018 applicability | Use for chair safety, stability, and structural performance requirements | |
| EN 1335-3:2020 applicability | Use as the proposed test-method standard for chair strength and durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 applicability | Use for task-chair back, seat, base, arm, caster, and fatigue verification | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 applicability | Use for desk/worksurface strength, load, leg, and drawer-performance verification | |
| ANSI/BIFMA X5.9-2019 applicability | Use if storage pedestal drawer cycles, locks, slides, and stability require commercial verification | |
| BIFMA E3-2022 applicability | Use as an optional sustainability and material-attribute scoring framework, not as a claimed certification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 applicability | Use for wooden furniture dimensional tolerance, coating, and construction inspection of desk panels and cabinet | |
|---|---|---|
| GB/T 3325-2017 applicability | Use for metal furniture inspection of partition frames, drawer slides, handles, and structural metal parts | |
| GB/T 10357.5-2011 applicability | Use as the proposed desk strength and surface-load test basis during procurement verification | |
| GB 18580-2017 applicability | Use for formaldehyde emission limits of wood-based panels used in desk and cabinet components | |
| GB 28007-2011 applicability | Use as the proposed safety, durability, and stability reference for the child-size-independent office task chair |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 applicability: Use for wooden furniture dimensional tolerance, coating, and construction inspection of desk panels and cabinet; 2. GB/T 3325-2017 applicability: Use for metal furniture inspection of partition frames, drawer slides, handles, and structural metal parts; 3. GB/T 10357.5-2011 applicability: Use as the proposed desk strength and surface-load test basis during procurement verification; 4. GB 18580-2017 applicability: Use for formaldehyde emission limits of wood-based panels used in desk and cabinet components; 5. GB 28007-2011 applicability: Use as the proposed safety, durability, and stability reference for the child-size-independent office task chair; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
