Name: 2-Person Side-by-Side F-Layout Office Cubicle Workstation with Mobile Pedestals
Brand: Fanshidun
SKU: 56N9NT

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Overall unit dimensions (W x D x H)	2800 x 1200 x 1100 mm
Individual work surface width per user	1400 mm
Individual work surface depth per user	600 mm
Work surface height from floor	750 mm
Total partition height from floor	1100 mm
Work surface panel thickness	38 mm
Seated knee clearance height under desk	680 mm
Seated knee clearance depth per position	550 mm
Mobile pedestal dimensions (W x D x H)	400 x 520 x 600 mm
Partition panel frame thickness	60 mm
Partition lower fabric panel height	700 mm
Vented upper metal partition panel height	300 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Uniform static load capacity per work surface	300 kg
Desktop surface abrasion resistance	2000 cycles
Pedestal caster rolling load rating per wheel	35 kg
Recommended maximum user weight per station	136 kg
Desktop surface stain, water and scratch resistance	Commercial grade
Frame corrosion resistance	Powder-coated finish
Product structural warranty period	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	E1 grade particle board (MFC)
Work surface edge banding	2mm thick PVC edging
Partition frame construction	Anodized silver aluminum alloy
Partition lower privacy panels	Taupe tackable fabric over fiberboard core
Partition upper vented panels	Perforated silver powder-coated steel
Modesty panels under work surfaces	Beige melamine-faced particle board
Mobile pedestal bodies	Beige melamine-faced MDF
Mobile pedestal drawer fronts	Taupe melamine panel with integrated key lock
Pedestal casters	50mm diameter black nylon swivel casters
Partition base feet	Adjustable stainless steel leveling feet
Cable management grommets	60mm diameter ABS plastic grommets
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular partition connection system	Aluminum post-and-rail connectors
Mobile pedestal operation	Rolling casters allow under-desk positioning or movement
Cable management routing	Desktop grommets feed cables to under-desk space
Pedestal storage configuration	1 upper utility drawer and 1 lower file compartment
Leveling foot adjustment	Threaded base feet adjust for uneven flooring
Tackable fabric panel function	Lower partition fabric supports pinning of notes and memos
Upper vent panel function	Slotted metal sections allow light transmission and air circulation
Assembly method	Knock-down flat pack construction
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff work areas	Provides divided private workstations for two employees without full wall construction
Call center and administrative offices	Vented partitions reduce noise reflection while maintaining seated visual privacy
Startup and co-working flexible spaces	Modular construction allows reconfiguration as team size or layout changes
Government and enterprise back-office zones	Lockable pedestals secure personal documents for regular seated administrative work
Small business open workspaces	Compact footprint fits two work positions in minimal floor area compared to separate desks
Temporary project team work areas	Quick assembly and disassembly supports short-term project team space setups

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to desk load and stability
EN 527-2:2016	Office work tables mechanical performance test methods, applicable to structural validation
EN 1335-1:2020	Office furniture dimensional coordination, applicable to seated clearance dimensions
EN 1022:2018	Domestic and contract seating stability, applicable for adjacent chair clearance verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to work surface load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to mobile pedestal strength and lock testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to work surfaces and storage pedestals
GB/T 3327-2016	Performance requirements for office desks, applicable to work surface load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF core materials
GB/T 10357.1-2013	Furniture mechanical stability test methods, applicable to desk and partition structure

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surfaces and storage pedestals;
2. GB/T 3327-2016: Performance requirements for office desks, applicable to work surface load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF core materials;
4. GB/T 10357.1-2013: Furniture mechanical stability test methods, applicable to desk and partition structure;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-2P-F-2812-TPE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-2P-F-2812-TPE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-2P-F-2812-TPEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

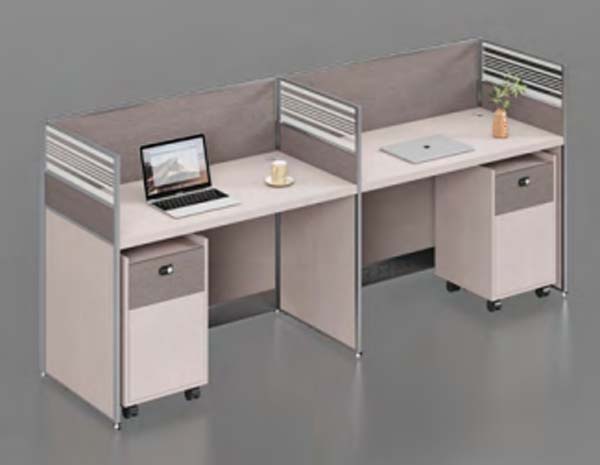

The Fanshidun CUB-2P-F-2812-TPE is a 2-person side-by-side F-layout office cubicle workstation paired with matching mobile pedestals, designed to deliver balanced privacy and collaborative access for shared work settings. The unit features a cohesive, professional visual profile with a structured partition system: lower privacy panels clad in taupe tackable fabric sit below upper perforated silver vented panels, framed by anodized silver aluminum posts and rails for a clean, commercial aesthetic. The layout allocates equal, dedicated work surface space for each user, with integrated modesty panels in warm beige melamine below each desktop, and rolling storage pedestals finished to coordinate with the cubicle’s neutral color palette.
Each work surface is constructed from E1 grade particle board with a 38mm thick core, finished with commercial-grade stain, water and scratch resistant surfacing, and sealed with 2mm thick PVC edge banding for durable daily use. The partition system combines fiberboard-cored tackable lower panels, perforated powder-coated steel upper panels, and aluminum post-and-rail modular connectors for secure, reconfigurable assembly. Each mobile pedestal is built from beige melamine-faced MDF with taupe melamine drawer fronts and integrated key locks, mounted on 50mm black nylon swivel casters for smooth movement. The workstation frame features a powder-coated finish for corrosion resistance, and threaded leveling feet compensate for uneven flooring to maintain a stable worksurface height aligned with standard seated office use.
Functional details support seamless daily operation: desktop grommets route cables cleanly to the under-desk space, while upper vented partition panels allow light transmission and air circulation to avoid the closed-off feel of solid partitions. The lower fabric panels support pinning of notes and memos, and each lockable pedestal includes one upper utility drawer and one lower file compartment to secure personal documents and work supplies. The rolling casters allow pedestals to be positioned fully under desks to save floor space, or moved as needed for cleaning or layout adjustments.
This workstation is suited for a wide range of commercial spaces, including open-plan office staff areas, call centers, administrative offices, startup and co-working flexible spaces, government and enterprise back-office zones, small business open workspaces, and temporary project team areas. It delivers seated visual privacy without requiring permanent full wall construction, reduces noise reflection in dense work environments, and offers a compact footprint that fits two work positions efficiently. Its modular design supports reconfiguration as team sizes or space needs change, and its quick assembly timeline supports both permanent and short-term space setups. For procurement teams, key considerations include noting the unit ships in two cartons per set, with a standard assembly time per unit, and includes a 5-year structural warranty. Each work surface supports commercial-grade static load capacity, with caster load ratings aligned to standard office storage use, and worksurfaces meet commercial abrasion resistance standards for long-term high-traffic use.
