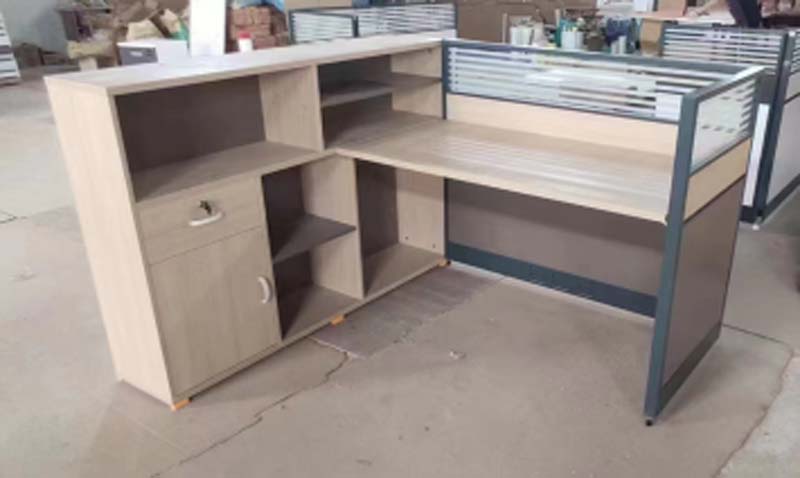

Name: L-Shaped Office Reception Desk with Integrated Storage and Frosted Slat Privacy Screen
Brand: KANAITE
SKU: 5Q2H0U

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2220 × 950 × 1170 mm
Seated work surface height	760 mm
Main work surface depth	700 mm
Side storage return width	1220 mm
Front privacy screen height	1100 mm
Knee clearance opening width	850 mm
Knee clearance minimum height	660 mm
Work surface panel thickness	25 mm
Edge band thickness	2 mm
Adjustable shelf thickness	18 mm
Drawer internal usable dimensions	400 x 350 x 120 mm
Lower cabinet internal usable dimensions	400 x 420 x 520 mm
Frosted slat screen width	1400 mm
Leveling foot adjustment range	15 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	113 kg
Main work surface static load capacity	136 kg
Drawer slide cycle rating	50000 open/close cycles
Cabinet hinge cycle rating	80000 open/close cycles
Surface abrasion resistance rating	2000 revolutions
Recommended maximum user weight for seating position	136 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panels	25mm thick MDF core with thermofused light oak laminate finish
Interior panels and shelves	18mm thick particleboard core with dark grey matte laminate finish
Privacy screen frame	1.2mm thick powder-coated dark grey steel frame
Privacy screen slats	5mm thick frosted semi-translucent acrylic panels
Drawer and cabinet hardware	Zinc alloy lock core with white ABS pull handles
Drawer slides	Cold-rolled steel ball-bearing full extension slides
Cabinet door hinges	Cold-rolled steel concealed self-closing hinges
Base support feet	Nylon-capped adjustable steel leveling feet
Lower modesty panel	18mm thick dark grey laminate particleboard
Edge banding	2mm thick impact-resistant PVC edge tape
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lockable top drawer	Secures high-value items and confidential materials via keyed cylinder lock
Adjustable open shelving	Supports 3 shelf positions spaced 32mm apart for flexible item storage
Enclosed lower cabinet	Conceals stored items behind a hinged, self-closing door to reduce visual clutter
Frosted slatted privacy screen	Blocks direct line of sight between visitors and staff work area while allowing partial light transmission
Cable management grommet	60mm diameter plastic grommet routes power and data cables through work surface
Leveling foot adjustment	Compensates for uneven floors by rotating feet to adjust base height up to 15mm
Transaction counter surface	Elevated front screen top provides flat surface for guest document signing and item handoff
Reversible layout configuration	Can be assembled for left-side or right-side storage return to fit office floor plans
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office front lobby	Provides professional visitor-facing counter with private staff work area for reception teams
Small business entryway	Fits compact entry spaces with integrated storage to eliminate separate cabinet needs
Medical clinic or dental office check-in	Elevated transaction surface supports patient sign-in and document exchange
Co-working space reception area	Durable laminate surface withstands high daily visitor traffic and regular cleaning
School administrative office front desk	Lockable storage secures student records and administrative supplies
Retail boutique customer service counter	Open shelves display brand materials while drawer stores transaction supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable for work surface performance
EN 14073-2:2004	Office storage furniture safety and durability requirements
EN 12521:2015	Furniture strength, durability and safety for non-domestic seating-related tables
EN 717-1:2004	Wood-based panels formaldehyde emission determination class E1 limit

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for static load and stability
ANSI/BIFMA X5.9-2019	Storage units performance standard for drawer and door cycle testing
ANSI/BIFMA X7.1-2020	Furniture emissions standard for low chemical and formaldehyde output

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel structural performance
GB/T 4897.3-2015	Particleboard for furniture use, applicable for core panel performance standards
GB 18584-2001	Indoor decoration material limit of harmful substances for wood furniture
GB/T 10357.1-1989	Furniture mechanical test for table static load and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural performance;
2. GB/T 4897.3-2015: Particleboard for furniture use, applicable for core panel performance standards;
3. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture;
4. GB/T 10357.1-1989: Furniture mechanical test for table static load and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · REC-L2200-OAK-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · REC-L2200-OAK-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · REC-L2200-OAK-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The KANAITE REC-L2200-OAK-GRY L-Shaped Office Reception Desk presents a streamlined, modern visitor-facing form defined by its dual-tone light oak and dark grey finish, paired with a frosted slat privacy screen that forms a clear visual boundary between guest and staff zones. Its layout positions the main work surface at a seated staff height, with a side storage return extending from the main section, while the elevated top edge of the front privacy screen acts as a dedicated flat transaction surface for guest interactions, creating a logical separation between public-facing service space and private work area. The desk is constructed with durable, purpose-selected materials. Work surface panels feature a 25mm thick MDF core with a thermofused light oak laminate finish, while interior panels, shelves, and the lower modesty panel use 18mm thick particleboard cores with a dark grey matte laminate finish. The privacy screen is supported by a 1.2mm thick powder-coated dark grey steel frame holding 5mm thick frosted semi-translucent acrylic slats. Hardware includes zinc alloy lock cores with white ABS pull handles, cold-rolled steel ball-bearing full extension drawer slides, cold-rolled steel concealed self-closing cabinet hinges, and nylon-capped adjustable steel leveling feet for stable placement. Functional design supports daily reception operations: the key-locking top drawer secures confidential materials and high-value items, adjustable open shelving offers flexible storage configurations across multiple positions, and the enclosed lower self-closing cabinet conceals stored items to reduce visual clutter. The frosted privacy screen blocks direct sightlines to the staff work area while allowing partial light transmission, a built-in cable management grommet routes power and data cords through the work surface, leveling feet adjust to compensate for uneven flooring, and the elevated transaction counter supports document signing and item handoff between staff and guests. This desk is well suited for a range of commercial spaces, including corporate office front lobbies, small business entryways, medical or dental clinic check-in zones, co-working space reception areas, school administrative offices, and retail boutique customer service counters. For procurement, note the desk ships in multiple cartons, with a reference assembly time of 40 minutes per set. The durable laminate surface supports high daily traffic and regular cleaning, and integrated storage eliminates the need for separate auxiliary cabinet purchases for smaller entry spaces.
