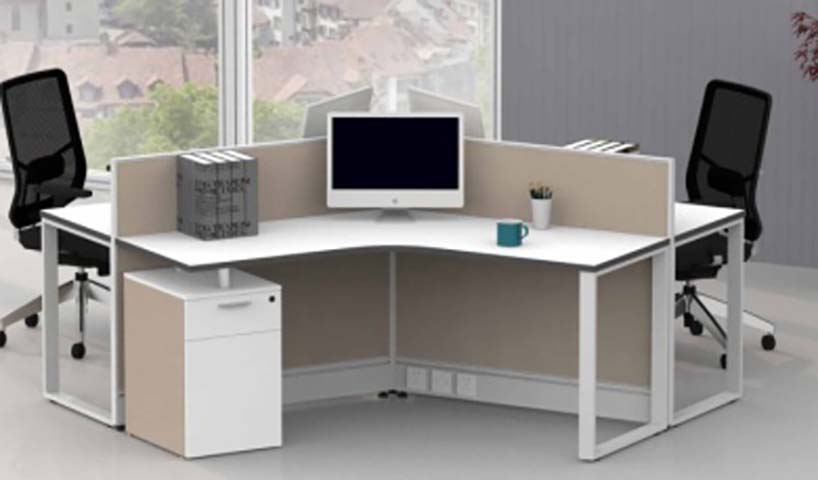

L-Shaped Partitioned Open-Plan Office Workstation Desk (model LWS-1500-WHT-PART) is listed under L-Shaped Office Desk, with overall dimensions of 1500 × 1500 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Modular,open-plan,design,low,desk-mounted,privacy,screens,cantilever,steel,frame,mobile,under-desk,pedestal. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 1500 x 1500 x 750 mm | |
|---|---|---|
| Work surface thickness | 25 mm | |
| Per-wing usable work surface depth | 600 mm | |
| Under-desk knee clearance height | 650 mm | |
| Under-desk knee clearance width at center | 800 mm | |
| Desktop privacy screen height | 350 mm | |
| Privacy screen thickness | 25 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Modesty panel height | 400 mm | |
| Steel frame leg section | 45 x 45 mm | |
| Cable grommet diameter | 80 mm | |
| Integrated power panel height from floor | 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static worktop load capacity | 136 kg | |
|---|---|---|
| Mobile pedestal drawer static load | 25 kg per drawer | |
| Drawer slide cycle rating | 50000 cycles | |
| Recommended user weight capacity | 136 kg | |
| Net workstation weight | 59 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Adjustable foot leveling range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | Thermally fused white melamine laminate over 25mm MDF core | |
|---|---|---|
| Support frame | 1.5mm wall thickness powder-coated white steel | |
| Privacy dividers | 18mm particleboard core with beige woven polyester fabric upholstery | |
| Mobile pedestal | 18mm melamine-faced particleboard cabinet with steel drawer slides | |
| Modesty panel | 18mm fabric-wrapped particleboard matching divider finish | |
| Leveling feet | Reinforced nylon base with steel threaded insert |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection | Integrated slot connectors for joining adjacent workstations in runs | |
|---|---|---|
| Cable management | Rear under-desk wire tray and desktop grommets routing to lower power panel | |
| Privacy screening | Low desk-edge dividers block direct line of sight between adjacent seats | |
| Mobile storage pedestal | Lockable 2-drawer unit on casters rolls under desk wing for file storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Provides partitioned individual workspaces without full-height cubicles | |
|---|---|---|
| Administrative and clerical departments | Fits standard computer, document storage and daily office work requirements |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks: Safety requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables: Mechanical safety requirements for strength and durability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to load, stability and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate panel components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel support frame | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to worktop stability and load |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate panel components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel support frame; 3. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to worktop stability and load; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
