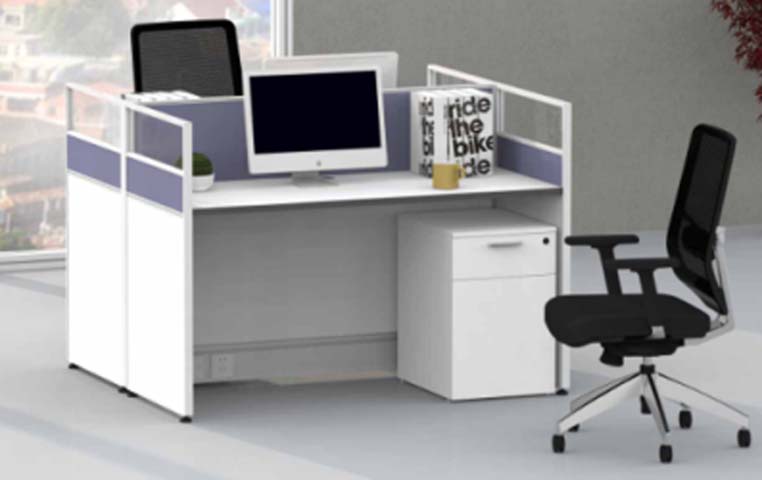

Two-Person Straight Office Cubicle Workstation with Partition Panels and Mobile Pedestal (model WS-CUB-2P-1200) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,cubicle,partial,frosted,glass,divider,under-desk,mobile,pedestal,mesh,task,chair,compatible. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Total workstation net weight | 168 kg | |
| Partition panel impact resistance | 1.5 J | |
| Recommended user capacity | 2 persons | |
| Leveling foot adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick melamine-faced particleboard, PVC edge banding | |
|---|---|---|
| Partition frame | 1.2mm thick powder-coated rectangular steel tubing | |
| Middle partition panel | 9mm thick MDF core with lavender fabric upholstery | |
| Upper partition section | 5mm thick frosted semi-transparent acrylic panel | |
| Lower partition panel | 18mm thick white melamine-faced particleboard | |
| Mobile pedestal | 0.8mm thick cold-rolled steel cabinet with epoxy powder coat |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management access | Under-desk horizontal cable tray with rear desk cutouts | |
|---|---|---|
| Modular panel connection | Steel clip-in connectors between partition sections | |
| Mobile pedestal mobility | 4 swivel nylon casters, 1 lockable drawer with central key lock | |
| Desk modesty panel | Full-width solid modesty panel under work surface |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides individual work zones with partial visual privacy for concentrated task work | |
|---|---|---|
| Call center and administrative departments | Two-seat layout supports dense staff deployment with dedicated work surfaces |
EU Market Access Requirements* EN Standards
| Office desk stability | EN 527:2002 | |
|---|---|---|
| Fabric panel flame resistance | EN 1021:2006 |
US and Canada office-furniture standards
| Work desk load test | ANSI/BIFMA X2021 | |
|---|---|---|
| Storage pedestal durability | ANSI/BIFMA X2020 |
Standards applicable to China-market projects
| Desk surface strength | GB/T 3324 | |
|---|---|---|
| Steel frame coating adhesion | GB/T 1993 | |
| Formaldehyde emission | GB 18584 |
This product must meet the following technical requirements: 1. Desk surface strength: GB/T 3324; 2. Steel frame coating adhesion: GB/T 1993; 3. Formaldehyde emission: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
