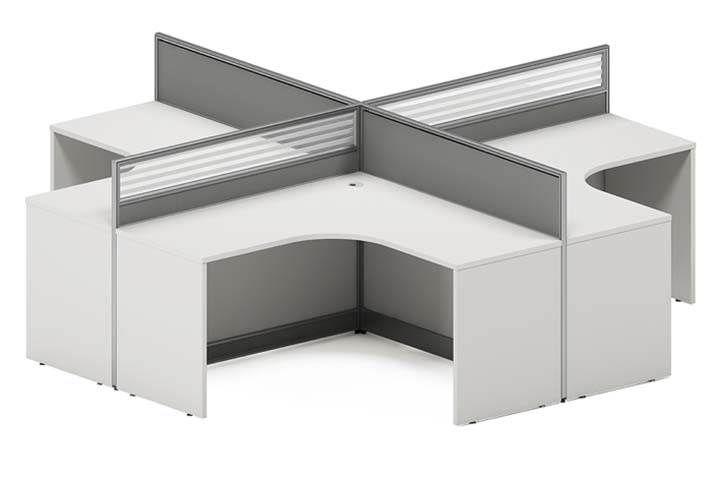

4-Person Cross Cluster Cubicle Workstation with Curved L-Shaped Desks and Privacy Dividers (model CW-4C-CURV-2830) is listed under L-Shaped Office Desk, with overall dimensions of 2830 × 2830 × 1100 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: modular,panel,construction,two-tone,gray,finish,integrated,cable,management,floor-mounted,leveling,feet,L-shaped,individual,work,zones. This page consolidates 5 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled footprint | 2830 x 2830 x 1100 mm | |
|---|---|---|
| Individual L-shaped work surface per station | 1400 x 1200 mm | |
| Work surface height from floor | 750 mm | |
| Seated knee clearance height under desk | 673 mm | |
| Work surface depth | 600 mm | |
| Work surface thickness | 25 mm | |
| Privacy screen thickness | 41 mm | |
| Privacy screen height above desktop | 350 mm | |
| Modesty panel height under work surface | 420 mm | |
| Cable grommet diameter | 60 mm | |
| Support leg cross-section | 45 x 45 mm square steel | |
| Leveling foot adjustable range | 15 mm | |
| Curved front edge radius at knee opening | 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load capacity per individual work surface | 113 kg | |
|---|---|---|
| Total unit net weight (without optional pedestals) | 120 kg | |
| Recommended user capacity | 4 adults | |
| Privacy panel visual distraction reduction | 85% | |
| Surface scratch resistance rating | 2000 cycles | |
| Leveling foot maximum load per foot | 80 kg | |
| Standard commercial warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1-grade particleboard core with thermally fused melamine laminate | |
|---|---|---|
| Desk edge banding | 2.0mm thick color-matched PVC edge banding | |
| Privacy screen frame | Powder-coated extruded aluminum alloy | |
| Privacy screen upper section | Ribbed translucent polycarbonate strip | |
| Privacy screen lower section | Solid matte gray MDF panel | |
| Support frame and modesty panels | Cold-rolled steel with electrostatic powder coating |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated under-desk cable trunking with separated strong/weak current channels and desk-top grommets | |
|---|---|---|
| Floor leveling adjustment | Threaded adjustable feet at all base contact points | |
| Modular panel connection | Tool-tightened cam lock connectors between panels and desk surfaces | |
| Work zone division | Cross-shaped X-layout partitions create 4 independent L-shaped workstations |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk load and stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstations dimensional ergonomic requirements for seated use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X7.1-2021 | Standard for panel systems office workstation structural and performance requirements |
Standards applicable to China-market projects
| GB/T 3324-2024 | General technical requirements for wooden furniture, applicable to desk surface and panel structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance | |
| GB 18584-2024 | Limit of harmful substances in wooden furniture, applicable to all finished furniture components | |
| GB/T 15102-2017 | Specification for impregnated paper laminated wood-based panel furniture surfaces |
This product must meet the following technical requirements: 1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to desk surface and panel structural performance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance; 3. GB 18584-2024: Limit of harmful substances in wooden furniture, applicable to all finished furniture components; 4. GB/T 15102-2017: Specification for impregnated paper laminated wood-based panel furniture surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
