PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users per workstation	2 users
Desktop distributed working load	80 kg
Pedestal drawer load rating	15 kg per drawer
Side cabinet shelf load	20 kg per shelf
Total product net weight	145 kg
Leveling adjustment per foot	10 mm
Drawer slide durability	50000 open-close cycles
Recommended maximum monitor load	25 kg per work surface
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak grain and sealed straight edges
Edge banding	2 mm ABS or PVC impact-resistant edge banding in matching light oak tone
Privacy screen	White fabric-look or laminate panel over composite board with light oak lower rail
Structural frame	Square or rectangular powder-coated steel uprights and rails with white finish
Modesty panels	White melamine-faced composite panels forming lower sight barriers around each seat
Drawer fronts	Light oak melamine-faced composite board with horizontal recessed pull detail
Cabinet carcass	White melamine-faced composite board panels with cam-and-dowel or screw-connected corners
Hardware	Steel cylinder lock, hinges or slide brackets, adjustable nylon glide feet, and one plastic cable grommet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Work division	A continuous corner-mounted screen separates two facing work positions while keeping each work surface independent
Cable management	One 60 mm rear desktop grommet routes monitor and power cables into the under-desk zone
Storage and lock	The integrated pedestal provides a shallow top drawer and one lower drawer/door compartment locked by a single front cylinder lock

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical or administrative clusters where low screens provide sight separation without blocking supervision
Administrative workstation area	Provides each user with a curved knee bay, rear cable port and lockable personal storage for daily documents

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2P-SCR-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2P-SCR-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2P-SCR-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Two-Person L-Shaped Panel Workstation is a structured office desk solution designed for two users who need separate work areas within one coordinated footprint. Its corner-based layout places two facing positions around an L-shaped work surface, with a continuous central screen dividing the spaces while preserving an open, supervised feel. Each user receives an independent work zone, a curved knee bay, a rear cable port, and access to integrated personal storage. The visual character combines light oak grain work surfaces and drawer fronts with white framing, modesty panels, cabinet surfaces, and screen finishes, producing a balanced commercial office appearance. Construction uses melamine-faced particleboard for the work surfaces and melamine-faced composite panels for cabinet and privacy elements. The main work surface is 25 mm thick, while the finished top is specified at 50 mm overall. Matching light oak ABS or PVC edge banding protects visible edges, and square or rectangular powder-coated steel uprights and rails provide the structural framework. White modesty panels create lower sight barriers around each seat, while the dividing screen uses a white fabric-look or laminate face over composite board with a light oak lower rail. Functional features support daily administrative work. A rear desktop grommet routes monitor and power cables into the under-desk area, which also includes a cable tray. The integrated pedestal provides a shallow top drawer and a lower drawer or door compartment, secured by a single front cylinder lock with steel lock and hinge hardware. The desk is rated for a distributed desktop working load of 80 kg, with drawer capacity of 15 kg per drawer and side cabinet shelf capacity of 20 kg per shelf. Each main seat offers 680 mm of knee clearance height and 900 mm of width. Adjustable nylon glide feet provide leveling adjustment, and drawer slides are rated for 50000 open-close cycles. This workstation is well suited to open-plan offices, clerical clusters, administrative departments, and residential work suites where two users require privacy, cable control, and lockable document storage. Its low screen configuration gives visual separation without fully enclosing either position. Procurement teams should plan for assembly, confirm access for two-carton delivery, and account for the steel-framed product weight.

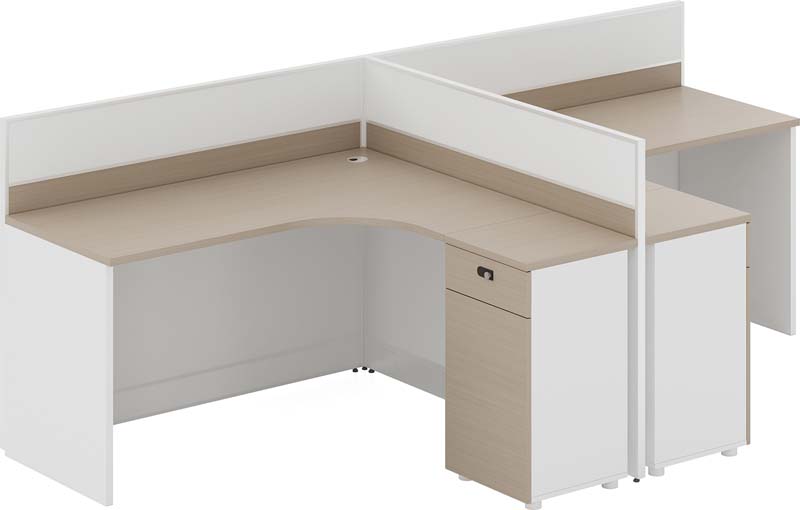

Two-Person L-Shaped Panel Workstation with Integrated Storage Pedestals
