PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1600 × 1100 mm
Overall footprint	1600 x 1600 x 1100 mm
Standard working surface height	750 mm
Desktop panel thickness	25 mm
PVC edge band thickness	2 mm
Left storage pedestal dimensions	400 x 550 x 725 mm
Low privacy screen height above desktop	350 mm
Seated knee well minimum clearance height	690 mm
Seated knee well minimum clearance width at curve	600 mm
Right-side lower CPU shelf dimensions	300 x 450 x 400 mm
Desktop cable grommet diameter	60 mm
Drawer internal usable depth	450 mm
Privacy divider panel thickness	40 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop uniform static load capacity	80 kg
Single drawer maximum static load	15 kg
Drawer slide rated operational cycles	50000
Product net weight reference	62 kg
Recommended maximum user weight capacity	120 kg
Surface scratch resistance rating (abrasion cycles)	2000
Formaldehyde emission reference maximum	0.124 mg/m³
Standard warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core and finish	25mm E1-grade particleboard with melamine laminate
Edge protection trim	2mm thick impact-resistant PVC edge banding
Pedestal drawer fronts and cabinet body	18mm melamine-faced engineered wood, light wood and white finish
Privacy screen frame	1.2mm thick white powder-coated steel tubing
Privacy screen infill panel	Fabric-wrapped fiberboard sound-dampening panel
Drawer slides	3-section full-extension cold-rolled steel ball-bearing slides
Pedestal locking system	Zinc alloy central lock securing all three drawers with keys
Right-side CPU shelf	15mm thick melamine-faced engineered wood with steel support bracket
Desk structural support legs	1.5mm thick white powder-coated square steel tubing
Drawer handles	Curved white ABS plastic recessed pull handles
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Single 60mm round grommet routes power/data cables from desktop to under-desk area
Pedestal storage security	Central keyed lock secures all three drawers to restrict unauthorized access
Drawer operation	3-section full-extension slides allow drawers to open fully for unobstructed file access
CPU storage support	Right-side open lower shelf accommodates mid-tower desktop computers for air circulation
Privacy partition function	Low rear and side screens block cross-desk sightlines for individual work focus
Seated ergonomic access	Curved contoured knee cutout positions user close to desktop without leg obstruction
Surface stain resistance	Melamine laminate surface resists common office spills and requires only damp wiping
Assembly structure	Knock-down construction allows on-site assembly with standard hex key hardware
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cubicle zones	Creates individual semi-private workspaces for administrative and operational staff
Small home office setups	Fits compact corner spaces for remote work and study use
Government and institutional work areas	Durable construction meets public sector furniture procurement requirements
Call center and shared office spaces	Low dividers balance privacy and team visibility for high-density work environments
Startup open office layouts	Modular configuration allows multiple units to be connected for team clusters
School administrative and teacher work areas	Integrated storage supports document and office supply organization for staff use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables dimensional and safety requirements, applicable to ergonomic dimension validation
EN 15372:2016	Office furniture strength and durability requirements for non-domestic storage units
EN 13722:2004	Furniture surface resistance to dry heat for office laminated surfaces

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for structural performance and durability testing
ANSI/BIFMA X5.9-2019	Storage units standard for drawer slide cycle and load performance validation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel office desk structural performance
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable to panel material acceptance
GB/T 4897.3-2003	Particleboard for furniture use, applicable to desktop and cabinet core material grading
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to desk static load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office desk structural performance;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to panel material acceptance;
3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to desktop and cabinet core material grading;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desk static load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CORNER-WS-1600-LOCKPED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CORNER-WS-1600-LOCKPED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CORNER-WS-1600-LOCKPEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

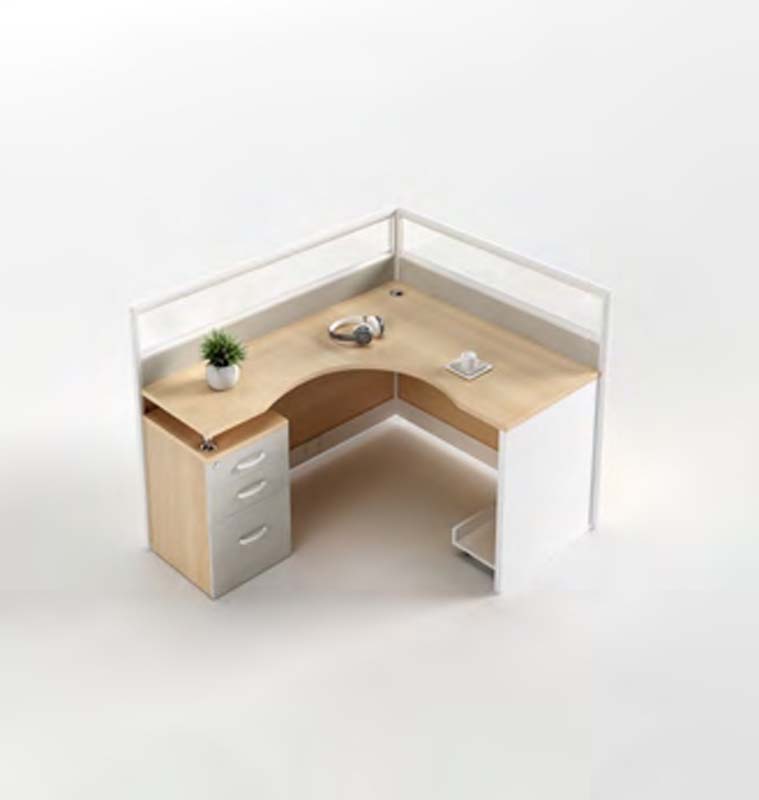

The Single-Person L-Shaped Cubicle Corner Workstation Desk with Lockable Drawer Pedestal and Privacy Screens, model L-CORNER-WS-1600-LOCKPED, features a streamlined low-profile two-tone light oak and white finish designed to fit neatly into corner positions, with a compact 1600 x 1600 x 1100 mm footprint that maximizes usable workspace without overcrowding floor areas. Its curved contoured knee cutout provides 690 mm of seated knee clearance height and 600 mm of clearance width at the curve, allowing users to sit close to the work surface without leg obstruction. Low-profile 350 mm tall privacy screens extend above the 750 mm high desktop, mounted on 1.2mm thick white powder-coated steel frames with fabric-wrapped fiberboard sound-dampening infill panels that block cross-desk sightlines while supporting ambient team visibility. The 25mm thick desktop is constructed from E1-grade particleboard with a scratch and stain-resistant melamine laminate, rated for 2000 abrasion cycles and an 80 kg uniform static load, sealed with 2mm impact-resistant PVC edge banding to protect against daily wear. A matching three-drawer pedestal sits to the left of the work surface, built from 18mm melamine-faced engineered wood, fitted with 3-section full-extension cold-rolled steel ball-bearing slides rated for 50000 operational cycles, each drawer supporting 15 kg of static load. A zinc alloy central lock secures all three drawers with included keys to restrict unauthorized access to stored documents and supplies. To the right, an open lower shelf built from 15mm melamine-faced engineered wood with steel support brackets accommodates mid-tower CPUs to support unobstructed air circulation. A single 60mm round cable grommet routes power and data cables from the desktop to the under-desk area for tidy cord management. Structural support comes from 1.5mm thick white powder-coated square steel legs, with the full unit carrying a 62 kg net weight, 0.124 mg/m³ maximum formaldehyde emission rating, and 120 kg recommended maximum user weight capacity. This workstation is suited for open-plan office cubicle zones, compact home office corners, government and institutional work areas, high-density call center and shared office floors, modular startup team clusters, and school administrative or teacher work spaces, where its integrated storage supports organized document and supply storage. For procurement, note the unit ships with a reference assembly time of 40 minutes per set, requiring on-site assembly, with packaged units totaling 1 m³ of volume per set, and that the unbranded design supports consistent multi-unit deployment for connected workspace layouts.

Single-Person L-Shaped Cubicle Corner Workstation Desk with Lockable Drawer Pedestal and Privacy Screens Specifications
