PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1600 × 1200 mm
overall footprint	1600 x 1600 x 1200 mm
desktop height	750 mm
desktop thickness	25 mm
main work surface segment depth	700 mm
return work surface segment depth	600 mm
pedestal dimensions	400 x 550 x 725 mm
partition thickness	40 mm
upper frosted glass partition height	300 mm
lower solid partition panel height	900 mm
edge banding thickness	2 mm
central knee clearance width	800 mm
knee clearance height under desktop	700 mm
support leg height	100 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

desktop uniform static load	225 kg
drawer static load capacity	15 kg
drawer slide durability	50000 cycles
net product weight	85 kg
surface abrasion resistance	2000 cycles
formaldehyde emission limit	0.124 mg/m³
recommended user weight capacity	136 kg
warranty period	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

work surface	25mm thick E1 grade melamine laminated particleboard
upper partition panel	5mm thick frosted tempered glass with white powder-coated aluminum frame
lower partition panel	40mm thick melamine faced engineered wood panel
pedestal drawer front	White melamine laminated MDF panel
pedestal cabinet door	Beige melamine laminated MDF panel
support frame and legs	1.5mm thick powder-coated black steel legs with white steel partition posts
edge trim	2mm thick PVC rounded edge banding
cable grommets	ABS plastic round cable management ports
hardware connectors	Zinc-plated steel modular panel brackets
modesty panels	18mm thick white melamine laminated particleboard
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seated privacy partition	Three-sided wrap-around screen with frosted upper glass and solid lower panels
desktop cable management	Two round ABS grommets positioned on each L segment
drawer operation	Three-section silent ball-bearing slide for upper drawer
pedestal locking	Central key lock secures both drawer and cabinet door
modular assembly	Knock-down panelized construction with bolt-on steel connectors
floor leveling	Adjustable glide feet on partition posts and pedestal legs
under-desk cable routing	Integrated cable tray along lower partition base
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office use	Single-seat cubicle for open office layouts to reduce visual distraction
call center and administrative workspace	Compact footprint ideal for high-density administrative or call center deployments
startup and co-working space	Modular design allows flexible layout changes as team size adjusts
home office dedicated workspace	Suitable for home workers requiring structured work space with privacy separation
education and training center use	Durable commercial construction for daily use by staff or trainees
recommended pairing	Matches with standard ergonomic office chairs with 480 mm seat height
available color options	Beige/white two-tone finish, with custom color options for bulk orders

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables dimensional, strength and durability requirements for work surfaces
EN 1335-2:2009	Office furniture stability requirements applicable to freestanding workstations
EN 14073-2:2004	Office storage furniture strength and durability for under-desk pedestals
EN 12521:2015	Furniture strength, durability and safety requirements for contract use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for static load, stability and durability testing
ANSI/BIFMA X5.9-2019	Storage units standard for pedestal drawer cycle and load testing
ANSI/BIFMA X7.1-2020	Formaldehyde emission standard for low-emitting office furniture panels

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desk and pedestal panels
GB 18580-2017	Formaldehyde emission limit for engineered wood panels, applicable to all wood components
GB/T 28202-2011	Office furniture workstation structural stability test standards
GB/T 4897-2015	Particleboard performance requirements for desktop and panel components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desk and pedestal panels;
2. GB 18580-2017: Formaldehyde emission limit for engineered wood panels, applicable to all wood components;
3. GB/T 28202-2011: Office furniture workstation structural stability test standards;
4. GB/T 4897-2015: Particleboard performance requirements for desktop and panel components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CUB-1600-BW-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CUB-1600-BW-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CUB-1600-BW-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

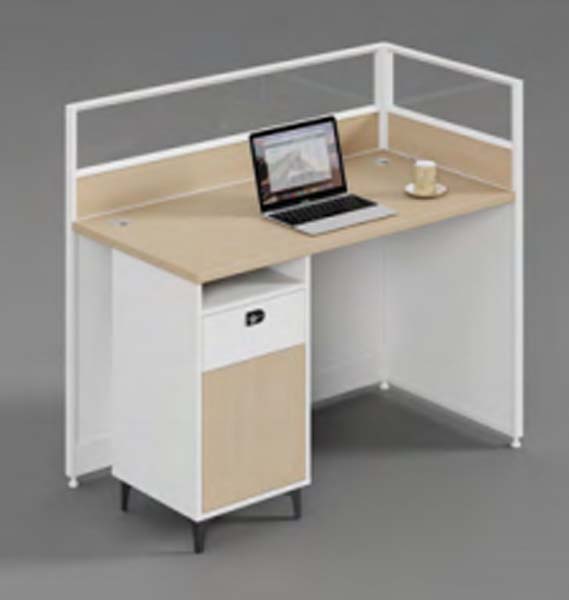

The Single-User L-Shaped Office Cubicle Workstation with Privacy Divider and Integrated Storage Pedestal, model L-CUB-1600-BW-PED, is an unbranded modular commercial seating solution designed for focused individual work across shared environments. Its visual form features a right-angled L layout with a three-sided wrap-around privacy screen: the upper partition uses frosted tempered glass set in a white powder-coated aluminum frame, paired with a solid melamine-faced engineered wood lower panel, creating a balanced barrier that reduces visual distraction without fully blocking ambient light. The work surface combines a deeper main segment and narrower return segment, finished in a neutral black and white palette with soft rounded PVC edge banding, while the integrated under-desk pedestal presents a coordinated two-tone look with a white drawer front and beige cabinet door, supported by black powder-coated steel legs and white partition posts for a streamlined, professional appearance. Construction utilizes durable, commercial-grade materials: the 25mm thick E1 grade melamine laminated particleboard work surface resists surface abrasion through 2000 cycles, with formaldehyde emission limited to 0.124 mg/m³ for improved indoor air quality. Support structures use 1.5mm thick powder-coated steel, secured with zinc-plated steel modular panel brackets, with 2mm thick PVC edge banding protecting all work surface edges from impact damage. The integrated pedestal includes an upper drawer fitted with three-section silent ball-bearing slides rated for 50000 open-close cycles, with a 15kg static load capacity, while the desktop supports a 225kg uniform static load, rated for users up to 136kg. Adjustable glide feet on partition posts and pedestal legs compensate for uneven flooring, and knock-down panelized construction enables straightforward assembly, with a 40-minute per set assembly time, shipped in two cartons per set. Functional features prioritize usability and privacy: the three-sided wrap-around screen delivers seated visual separation, while two round ABS cable grommets on each L-shaped desktop segment pair with an integrated cable tray along the lower partition base to organize power and data cords, eliminating surface clutter. A central key lock secures both the pedestal drawer and cabinet door for personal item storage, while the modular design supports flexible reconfiguration. This workstation fits open plan offices, high-density call centers, administrative work areas, co-working and startup spaces, dedicated home offices, and education or training center staff work zones, pairing optimally with standard ergonomic office chairs with a 480mm seat height. Procurement teams should note the 1600 x 1600 x 1200 mm overall footprint to plan space allocation, account for the 120kg packaged gross weight and 0.8 m³ packaging volume for shipping and receiving coordination, and confirm modular alignment with existing workspace layout plans before deployment.

Single-User L-Shaped Office Cubicle Workstation with Privacy Divider and Integrated Storage Pedestal Specifications
