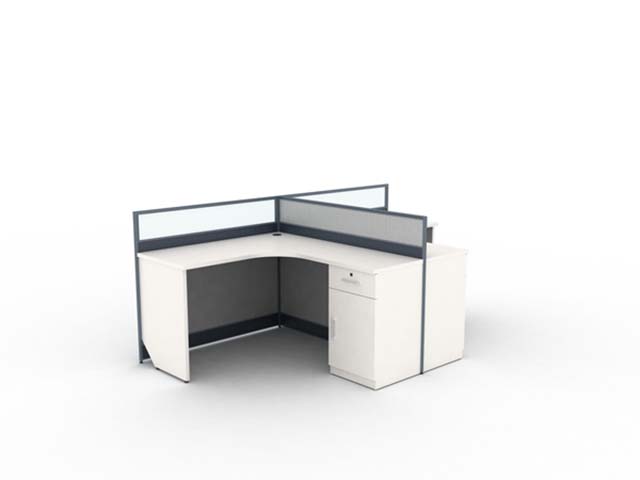

Product supplierL-Shaped Corner Office Workstation with Partial Divider Screen and Integrated Pedestal, 25mm thick melamine-faced particleboard, scratch-resistant matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Recommended maximum user weight | 120 kg | |
| Product net weight | 65 kg | |
| Design service life | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick melamine-faced particleboard, scratch-resistant matte finish | |
|---|---|---|
| Cabinet body and panels | 18mm thick melamine-faced particleboard, matching off-white finish | |
| Partition screen frame | 1.2mm thick powder-coated steel, dark gray finish | |
| Upper screen panel | 3mm thick frosted semi-transparent acrylic | |
| Lower screen modesty panel | 18mm thick melamine-faced particleboard, dark gray finish | |
| Drawer and door hardware | Cold-rolled steel hinges, ball-bearing drawer slides, keyed cam lock | |
| Base glides | Nylon adjustable height glides, 10mm adjustment range | |
| Desk edging | 2mm thick PVC impact-resistant edge banding, color-matched to panels | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Work surface layout | Curved inner-corner L-shaped top with one circular cable grommet at the inner corner | |
|---|---|---|
| Integrated storage pedestal | Right-side fixed pedestal with 1 key-locked top drawer and 1 lower hinged storage door | |
| Partition screen function | Three-sided partial-height divider separates adjacent workstations, reduces visual distraction | |
| Modesty panel function | Dark gray lower panel blocks view of knee well from standing passersby | |
| Adjustable glide function | Nylon base glides rotate to adjust desk level on uneven office flooring | |
| Modular connection capability | Steel screen frames have pre-drilled connection points to link additional matching workstations | |
| Cable management | Inner-corner grommet allows cables to route to floor or optional under-desk cable trays | |
| Drawer operation | Ball-bearing slides allow full 350mm drawer extension for easy access to stored items | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Ideal for clustered team work areas, balances individual privacy and team collaboration | |
|---|---|---|
| Small business administrative areas | Suitable for reception, admin or data entry staff with built-in storage for documents | |
| Call center workstations | Compact corner footprint fits high-density seating layouts, cable grommet supports headset and monitor wiring | |
| Home office executive setups | Provides sufficient work area for computer, paperwork and office supplies in residential workspaces | |
| Temporary project office spaces | Modular design supports quick reconfiguration for short-term project team seating | |
| Start-up open work environments | Cost-effective built-in storage and divider design fits growing teams on constrained budgets |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office desk safety requirement | EN 527:2002 Office furniture - Work tables and desks - Safety requirements | |
|---|---|---|
| Work surface dimensional requirement | EN 527:2011 Office furniture - Work tables and desks - Dimensions | |
| Formaldehyde emission class | EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk structural durability | ANSI/BIFMA X2021Desk Products - Tests for durability and stability | |
|---|---|---|
| Storage unit performance | ANSI/BIFMA X2019Storage Units - Tests for durability and safety |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desktop dimensional tolerance | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Formaldehyde emission limit | GB 18584Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based furniture | |
| Hardware durability requirement | GB/T 10357.5Test of mechanical properties of furniture - Storage units |
Standardized tender description text
This product must meet the following technical requirements: 1. Desktop dimensional tolerance: GB/T 3324General technical requirements for wooden furniture; 2. Formaldehyde emission limit: GB 18584Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based furniture; 3. Hardware durability requirement: GB/T 10357.5Test of mechanical properties of furniture - Storage units; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
