PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1650 × 1220 × 1200 mm
Overall unit dimensions	1650 x 1220 x 1200 mm
Worksurface height from floor	750 mm
Worksurface thickness	25 mm
Worksurface depth (main and return)	700 mm
Partition panel thickness	83 mm
Partition total height	1200 mm
Cable grommet diameter	60 mm
Seated knee clearance width (curved front)	800 mm
Seated knee clearance height under worksurface	650 mm
Return storage unit width	450 mm
Drawer internal height	120 mm
Storage cabinet internal height	500 mm
Leveling foot adjustment range	15 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worksurface uniform static load capacity	91 kg
Net weight (single workstation unit)	85 kg
Recommended user weight capacity	136 kg
Finish abrasion resistance	2000 cycles
Surface stain resistance rating	Grade 1
Available color options	8
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface panel	25mm melamine-faced particleboard, 2mm PVC edge banding
Cabinet and side panels	18mm melamine-faced MDF, white matte finish
Lower partition panel	Dark brown fabric-wrapped tackable fiberboard
Upper partition panel	Frosted translucent acrylic, brown aluminum alloy frame
Modesty panel under worksurface	Dark brown ribbed melamine panel
Hardware (handles, lock)	Brushed steel drawer pulls, keyed cam lock for drawer
Support frame and connectors	1.2mm thick steel modular connecting brackets, brown powder coat
Leveling feet	Nylon base with steel threaded stem
Cable grommet	ABS plastic round grommet with brush insert
Edge banding	2mm thick PVC impact-resistant edging
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drawer storage	One lockable shallow drawer on return unit secures personal items and stationery
Cabinet storage	One hinged-door lower cabinet on return provides enclosed vertical storage
Cable management	60mm rear-corner desktop grommet routes monitor and power cables below worksurface
Partition privacy	1200mm tall dual-material dividers block seated sightlines between adjacent workstations
Modular connection	Steel bracket hardware allows linking to matching adjacent workstations for cluster layouts
Leveling adjustment	Threaded nylon feet at each support base adjust to compensate for uneven flooring
Tackable partition surface	Fabric-wrapped lower panels accept push pins for notes and documents
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cubicle clusters	Provides semi-private individual workspaces in open office layouts
Call center and administrative work areas	Integrated storage and cable management supports daily computer-based tasks
Small business satellite office setups	Modular design allows reconfiguration as team size changes
Single-user home office with storage needs	Enclosed cabinet and drawer reduce desktop clutter in dedicated work rooms
Startup co-working flexible workspaces	Reconfigurable modular connections support quick layout adjustments
Government and enterprise staff workstations	Commercial-grade construction meets long-term heavy-use requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables: safety and strength requirements for commercial work surfaces
EN 13722:2004	Office furniture: storage units, strength and durability for cabinet/drawer components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products: standard for safety, durability, and structural performance
ANSI/BIFMA X5.9-2019	Storage units: performance standard for integrated drawer and cabinet pedestals

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel desk construction
GB/T 4897.3-2003	Particleboard for furniture use, applicable to worksurface core material
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office use
GB/T 11718-2009	Medium density fiberboard (MDF) for furniture, applicable to cabinet panel material

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk construction;
2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to worksurface core material;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use;
4. GB/T 11718-2009: Medium density fiberboard (MDF) for furniture, applicable to cabinet panel material;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1600-CRV-STG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1600-CRV-STG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1600-CRV-STGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

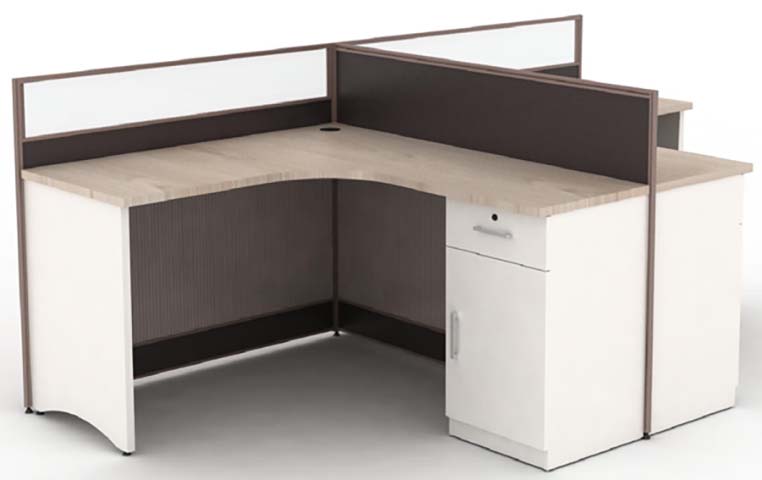

The L-Shaped Curved Corner Office Cubicle Workstation with Integrated Storage (model CUB-L1600-CRV-STG) is an unbranded modular corner office cubicle workstation desk designed for flexible individual workspace deployment across commercial and residential settings. Visually, the unit features a smooth curved L-shaped worksurface layout, paired with dual-material partial-height dividers that frame the work zone: the lower divider section is wrapped in dark brown fabric, while the upper section uses frosted translucent acrylic set in a brown aluminum alloy frame, paired with dark brown ribbed modesty panels and white matte finished storage components for a cohesive, professional aesthetic.
Construction uses durable, commercial-grade materials selected for long-term regular use. The 25mm thick worksurface is crafted from melamine-faced particleboard with 2mm PVC edge banding, supported by 1.2mm thick brown powder-coated steel modular connecting brackets. Storage cabinet and side panels use 18mm melamine-faced MDF with a white matte finish, while hardware includes brushed steel drawer pulls, a keyed cam lock for secure drawer access, nylon leveling feet with steel threaded stems, and ABS plastic cable grommets with brush inserts. All connections use robust steel hardware to support stable, long-term installation.
For practical function, the workstation delivers targeted features to support daily work tasks. The return section of the L-shape integrates one lockable shallow drawer for securing personal items and stationery, plus one hinged-door lower cabinet for enclosed vertical storage to reduce desktop clutter. A 60mm round cable grommet positioned at the rear corner of the worksurface routes monitor and power cables below the desk surface for a tidy setup. The 1200mm tall partitions block seated sightlines between adjacent workstations to deliver semi-private work zones, while the fabric-wrapped lower partition sections accept push pins for posting notes and documents. Threaded nylon leveling feet adjust to compensate for uneven flooring, and steel bracket hardware allows multiple matching units to be linked together for clustered layouts as needs evolve.
This workstation suits a wide range of spaces. It works well for creating semi-private individual work zones in open-plan office cubicle clusters, and its integrated storage and cable management make it ideal for call centers and administrative work areas supporting daily computer-based tasks. Its modular design supports easy reconfiguration as team sizes change, making it a fit for small business satellite offices and startup co-working flexible workspaces, while its commercial-grade construction supports long-term heavy use for government and enterprise staff workstation deployments. It also functions effectively as a single-user home office solution for dedicated work rooms, where integrated enclosed storage helps keep work surfaces organized.
Key procurement considerations include evaluating available color options to align with existing interior design schemes, noting that each unit ships in two cartons, requires assembly, and is delivered as a single set. Buyers planning cluster installations should account for the modular connection capabilities to map layout plans prior to purchase, and confirm that the worksurface load ratings align with intended equipment placement to support long-term functional use.

L-Shaped Curved Corner Office Cubicle Workstation with Integrated Storage Specifications
