PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2800 × 1100 mm
Overall footprint	2800 x 2400 x 1100 mm
Worksurface height	760 mm
Single L workstation arm length	1800 mm
Worksurface depth	600 mm
Knee clearance height	650 mm
Partition total height	1100 mm
Frosted glass upper panel height	300 mm
Solid lower partition panel height	800 mm
Partition frame thickness	60 mm
Worksurface panel thickness	38 mm
Under-desk storage pedestal width	450 mm
Cable grommet diameter	80 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worksurface static load capacity	150 kg
Total product net weight	160 kg
Recommended user capacity	2 people
Surface abrasion resistance	2000 cycles
Frame corrosion resistance	500 hours salt spray
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface panels	E1-grade melamine-faced MFC with walnut woodgrain finish
Lower partition panels	Dark charcoal matte melamine-faced MDF
Partition framing	Bronze rose-gold powder-coated aluminum alloy
Upper divider panels	5mm thick ribbed frosted translucent glass
Edge banding	2mm thick impact-resistant PVC trim on all panel edges
Storage hardware	Matte black metal drawer pulls and cabinet handles
Leveling feet	Nylon-base adjustable steel glides
Cable grommet	ABS plastic round desk wire port
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual ergonomic work zones	Two opposite-facing L-shaped curved worksurfaces for seated task work
Seated privacy screening	Combination of frosted upper glass and solid lower panels blocks direct sightlines
Integrated under-desk storage	Each workstation includes 1 utility drawer and 1 hinged-door cabinet for supplies
Cable management access	Desktop grommet routes power and data cables from surface to under-desk space
Floor leveling adjustment	Base glides adjust to compensate for uneven office flooring
Modular assembly	Knock-down panelized construction connects for reconfiguration if needed
Storage compartment organization	Drawer holds small office supplies, cabinet stores larger items and personal effects
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff zones	Creates semi-private individual workstations for clerical and admin staff
Call center and telemarketing floors	Low dividers reduce distraction while supporting team supervision
Small business shared workspaces	Compact L layout maximizes floor space for two users in limited office areas
Administrative department work areas	Integrated storage keeps office supplies accessible at each work position
Startup office flexible layouts	Modular design allows addition of matching units for larger team expansion

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and dimensional requirements
EN 1335-2:2009	Office furniture stability for seating-adjacent workstations
EN 12521:2015	Furniture strength durability and safety for commercial tables

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for commercial office use
ANSI/BIFMA X5.9-2019	Storage units performance for office furniture
ANSI/BIFMA G1-2013	Ergonomic guidelines for office worksurface dimensions

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB/T 35607-2017	Limit of harmful substances for office furniture panels
GB/T 10357.1-2013	Desk mechanical performance and stability test methods

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB/T 35607-2017: Limit of harmful substances for office furniture panels;
3. GB/T 10357.1-2013: Desk mechanical performance and stability test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-1800-BZW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-1800-BZW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-1800-BZWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

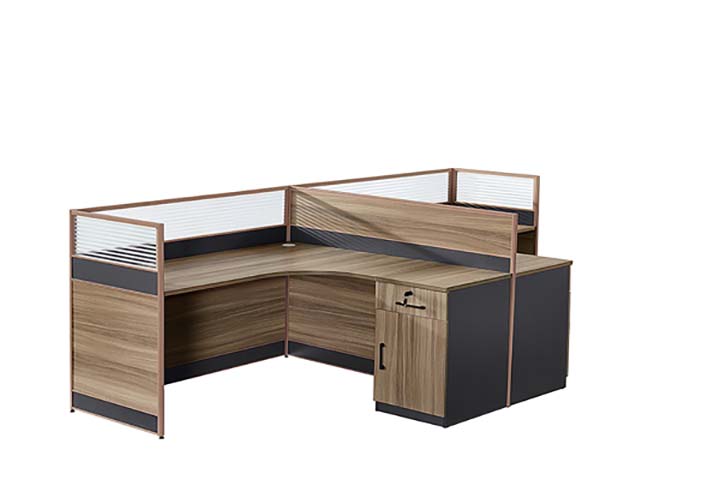

This 2-Person L-Shaped Office Cubicle Workstation delivers a balanced combination of semi-private personal work space, integrated storage, and streamlined modern aesthetics, designed to support productive shared work across a range of commercial settings. Its two-tone visual scheme pairs warm walnut-dark woodgrain worksurfaces with dark charcoal matte lower partition panels, accented by bronze rose-gold finished metal partition frames and ribbed frosted glass upper dividers for a polished, contemporary look. The layout positions two opposite-facing L-shaped curved worksurfaces to create distinct, ergonomic seated task zones, with partition structures that rise to block direct sightlines between users while retaining an open, connected feel for adjacent team areas.
The workstation is built for durable daily use, with E1-grade melamine-faced MFC forming the work surfaces, dark charcoal melamine-faced MDF used for solid lower partition panels, and 5mm thick ribbed frosted translucent glass for upper divider sections. All panel edges are finished with impact-resistant PVC trim to reduce wear from regular contact, while partition frames are constructed from powder-coated aluminum alloy. Matte black metal hardware finishes integrated storage components, and nylon-base adjustable steel glides form the base to stabilize the unit. Each worksurface supports a 150kg static load, with tested surface abrasion resistance and frame corrosion resistance suited to long-term high-traffic use, and knock-down panelized construction uses secure multi-point connections at major joints for structural stability.
Practical functionality is built into every element of the design. Each user position includes one utility drawer for small office supplies and one hinged-door cabinet for larger items and personal effects, eliminating the need for separate freestanding storage for most daily work needs. Round ABS cable grommets on each worksurface route power and data cables neatly out of sight to the under-desk space, while adjustable base glides compensate for uneven flooring to keep worksurfaces stable and level. The semi-private screening reduces cross-user distraction without blocking ambient light or line of sight for team supervision, and the modular design allows units to be reconfigured or added to as team needs change.
This workstation is well suited for open-plan office staff zones for clerical and administrative teams, call center and telemarketing floors, small business shared workspaces, administrative department work areas, and flexible startup office layouts, where its compact footprint maximizes usable floor space for two users without overcrowding. For procurement teams, key considerations include noting that each unit ships in two cartons, with a 40-minute per set assembly reference time, and that the fixed two-seat L-shape is optimized for pairs of users who require close proximity but defined personal work boundaries. The integrated storage removes the need for separate purchase of under-desk storage units for most use cases, and the modular construction supports long-term layout flexibility as team sizes shift.

2-Person L-Shaped Office Cubicle Workstation with Frosted Glass Dividers and Integrated Storage Specifications
