PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Work-surface distributed static load	80 kg per position
Drawer static load	20 kg per drawer
Pedestal cabinet stability load	60 kg per cabinet
Partition attachment lateral load	15 kg at 1200 mm height
System net weight	220 kg
Chair recommended user weight	120 kg per chair
Leveling adjustment	10 mm per foot
Drawer slide durability target	50,000 opening cycles
Warranty baseline	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain high-pressure laminate or melamine board with sealed impact-resistant edge banding
Storage pedestals and modesty panels	18 mm white and dark-gray melamine-faced particleboard with PVC edges
Privacy screens	Silver anodized aluminum frame with horizontally ribbed light-gray composite infill
Drawer hardware	Black or zinc-plated steel side-mounted drawer runners with integrated handles
Support and leveling components	Powder-coated steel base rails and adjustable nylon leveling feet
Task chairs	Black five-star nylon or steel base, green mesh back, black upholstered seat and black armrests

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-way privacy division	Cross-connected 450 mm-high screens separate four seated users while retaining visibility over the panels
Integrated personal filing	Each workstation is paired with under-desk storage including three drawer fronts for documents and personal items
Desktop cable routing	A 60 mm circular grommet allows monitor and power leads to pass from work surface to under-desk cable space
Independent seating movement	Swivel task chairs use twin-wheel casters and a five-star base for movement within each 650 mm knee opening

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for four staff in call centers, administration teams or accounts departments where shared footprint and personal storage are required.
Project procurement layout	Can be repeated in grid planning because the 2800 x 2800 mm footprint gives each user a defined 1400 mm work zone and visual separation.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 desk scope	EN 527covers safety, strength and dimensional requirements for office work tables.
EN 527-2 desk test scope	EN 527provides mechanical safety and durability test methods for the desk structure.
EN 14073-2 storage scope	EN 14073applies to safety requirements for office storage pedestals and cabinets.
EN 1335-1 chair dimension scope	EN 1335defines office chair dimensional and seating-space requirements.
EN 1335-2 chair safety scope	EN 1335covers strength, stability and safety requirements for task chairs.
EN 1022 chair stability scope	EN 1022 specifies stability test methods for the supplied seating.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk scope	ANSI/BIFMA X5.5 may be specified for desk-performance strength, fatigue and dimensional tests.
ANSI/BIFMA X5.9 storage scope	ANSI/BIFMA X5.9 applies to storage units, drawers, locks and stability performance.
ANSI/BIFMA X5.1 chair scope	ANSI/BIFMA X5.1 provides strength, durability and dimensional tests for office chairs.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 acceptance scope	GB/T 3324 applies to wooden furniture dimensions, workmanship and physical-property inspection for the cabinet and desk boards.
GB/T 3325 acceptance scope	GB/T 3325 is appropriate for metal furniture structural requirements, surface coating and load-bearing inspection.
GB 18580 emission scope	GB 18580 provides formaldehyde emission limits for wood-based panels used in the workstation boards.
GB/T 11460 inspection scope	GB/T 11460 may be used for office chair dimensional, structural and stability acceptance of the supplied task chairs.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 acceptance scope: GB/T 3324 applies to wooden furniture dimensions, workmanship and physical-property inspection for the cabinet and desk boards.;
2. GB/T 3325 acceptance scope: GB/T 3325 is appropriate for metal furniture structural requirements, surface coating and load-bearing inspection.;
3. GB 18580 emission scope: GB 18580 provides formaldehyde emission limits for wood-based panels used in the workstation boards.;
4. GB/T 11460 inspection scope: GB/T 11460 may be used for office chair dimensional, structural and stability acceptance of the supplied task chairs.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-OAK-WHT-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-OAK-WHT-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-OAK-WHT-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

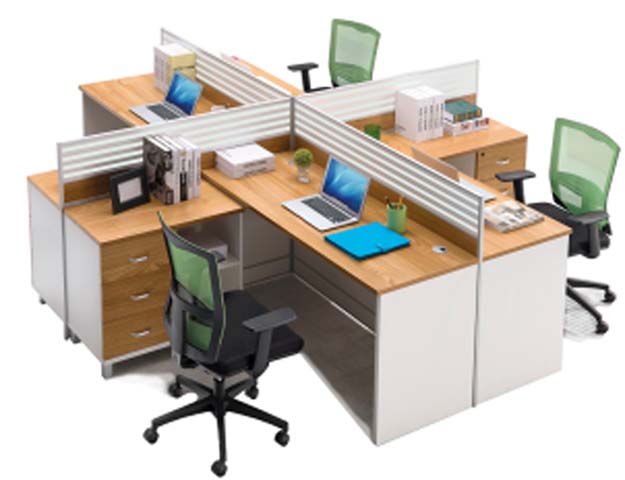

The Four-Person Cross-Shaped Panel Workstation is an unbranded panel desk system designed for grouped office seating with a clear balance of shared footprint and individual privacy. Model WS-CR4-OAK-WHT-2800 presents four work positions arranged around a cross-connected screen layout, producing a compact cluster with an oak-effect and white finish suited to organized open-plan interiors. Visually, the workstation combines wood-grain laminate work surfaces, white storage cabinets, and silver anodized aluminum-framed privacy screens. The 450 mm-high screens use a horizontally ribbed light-gray composite infill to separate adjacent users while preserving visibility over the panels, supporting conversation and supervision without exposing the full desktop. The cross form gives each occupant a defined work zone, and the integrated drawer pedestals anchor the layout while keeping storage within reach. Construction uses 25 mm wood-grain high-pressure laminate or melamine board with sealed impact-resistant edge banding for the work surfaces. Storage pedestals and modesty panels are made from 18 mm white and dark-gray melamine-faced particleboard with PVC edges. Each user position includes under-desk storage with three drawer fronts, fitted with black or zinc-plated steel side-mounted runners and integrated handles. The base structure uses powder-coated steel rails, supported by adjustable nylon leveling feet, while the support section features an 80 mm main section with a 2 mm metal wall. Practical functions are built into the cluster rather than added as separate accessories. A 60 mm circular grommet on the work surface routes monitor and power leads to the under-desk cable space, which also includes cable management provision with an 80 mm opening and a 120 mm-deep tray in the system specification. Personal filing and daily items can be stored directly beneath each desk, reducing desktop clutter. The accompanying swivel task chairs have green mesh backs, black upholstered seats, black armrests, twin-wheel casters, and five-star bases for independent movement. This system is appropriate for call centers, administration teams, accounts departments, and other open-plan offices requiring four seats in one coordinated cluster. It can also be repeated in grid planning for larger projects, where repeated installations create consistent work zones and visual separation. Procurement planners should allow for assembly, coordinated delivery, and floor-protection planning. The supplied references indicate cartoned delivery and a 40-minute assembly time per set, though packaging details should be confirmed at order placement because the reference records list differing carton counts. Specifiers should also review the listed load capacities, seating clearance, cable-routing details, and chair user-weight guidance against the intended workplace requirements before purchase.

Four-Person Cross-Shaped Panel Workstation with Integrated Drawer Pedestals Specifications
