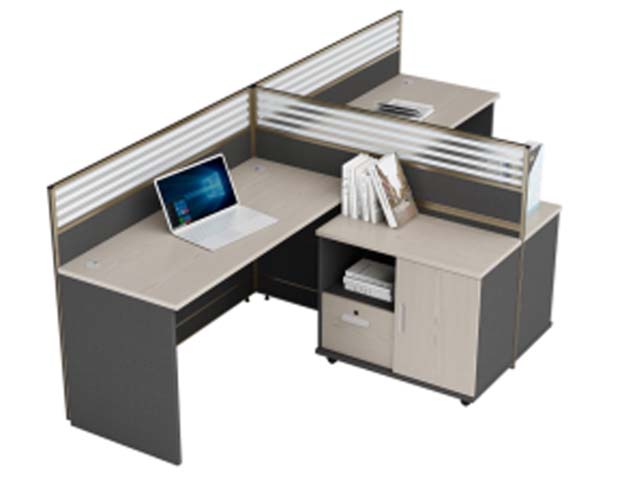

Product supplier2-Person L-Shaped Open-Plan Office Cubicle Workstation with Mobile Storage Caddy, E1-grade melamine-faced engineered wood with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3020 × 1530 × 1140 mm | |
|---|---|---|
| overall cluster dimensions | 3020 x 1530 x 1140 mm | |
| worksurface height | 750 mm | |
| main worksurface depth | 610 mm | |
| worksurface thickness | 25.4 mm | |
| privacy partition height | 1140 mm | |
| knee well clearance height | 650 mm | |
| mobile storage caddy dimensions | 800 x 500 x 650 mm | |
| cable grommet diameter | 60 mm | |
| side support panel thickness | 18 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| per-worksurface static load capacity | 91 kg | |
|---|---|---|
| product net weight | 154 kg | |
| seated user capacity | 2 users | |
| finish abrasion resistance | 2000 cycles | |
| leveler adjustment range | 15 mm | |
| manufacturer warranty | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| worksurface panel | E1-grade melamine-faced engineered wood with 2mm PVC edge banding | |
|---|---|---|
| support frame and legs | Powder-coated steel tubing with adjustable plastic foot levelers | |
| privacy partition framing | Anodized aluminum alloy extrusion framing | |
| partition slat panels | Rigid slatted composite panels with fabric-wrapped lower solid section | |
| mobile caddy body | 18mm melamine-faced particle board with matching PVC edge banding | |
| storage hardware | Zinc-plated steel drawer slides, keyed cam lock, plastic door handle, nylon swivel casters | |
| modesty panels | 18mm melamine-faced engineered wood matching desk finish | |
| cable management components | ABS plastic grommets and under-desk plastic cable raceways | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular cluster layout | Two opposite-facing L-shaped workstations separated by corner privacy dividers | |
|---|---|---|
| privacy screening | Partial-height dividers block direct line of sight between seated adjacent workers | |
| mobile storage unit | Lockable drawer, open middle shelf, and closed cabinet door on swivel casters | |
| cable management | Dual surface grommets per worksurface route power and data cables to under-desk raceways | |
| floor leveling | Adjustable feet on all support points compensate for uneven commercial office flooring | |
| file storage | Locking lower drawer accommodates standard hanging letter/A4 file folders | |
| knock-down assembly | Flat-packed for transport, assembled with cam-lock hardware and included fasteners | |
| lockable drawer internal height | 250 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open-plan corporate offices | Configurable modular cubicle for team-based departments in commercial office spaces | |
|---|---|---|
| call center and shared work zones | Provides individual visual privacy while maximizing open floor space density | |
| startup and co-working spaces | Flexible 2-person cluster that can be reconfigured as team sizes change | |
| government and administrative work areas | Durable commercial grade construction for daily high-traffic office use | |
| recommended chair pairing | Mid-back ergonomic office task chair with seat height 520 mm to match desk height | |
| recommended monitor setup | Single 27inch monitor per workstation with monitor arm mounted via grommet hole |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks: safety, strength and durability requirements for commercial use | |
|---|---|---|
| EN 527-2:2016 | Dimensional, ergonomic and safety requirements for seated office work surfaces | |
| EN 13722:2004 | Office furniture: storage units, strength and durability requirements for mobile cabinets |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: performance and safety standard for commercial office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: performance standard for mobile pedestals and office storage cabinets | |
| ANSI/BIFMA X5.6-2022 | Panel systems: performance requirements for office partition divider systems |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worksurface and storage panels | |
|---|---|---|
| GB/T 3327-2018 | Performance test standards for office desks and workstations for structural stability | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood panels used in indoor furniture | |
| GB/T 10357.1-2013 | Mechanical performance test methods for desk strength, durability and stability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worksurface and storage panels; 2. GB/T 3327-2018: Performance test standards for office desks and workstations for structural stability; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels used in indoor furniture; 4. GB/T 10357.1-2013: Mechanical performance test methods for desk strength, durability and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
