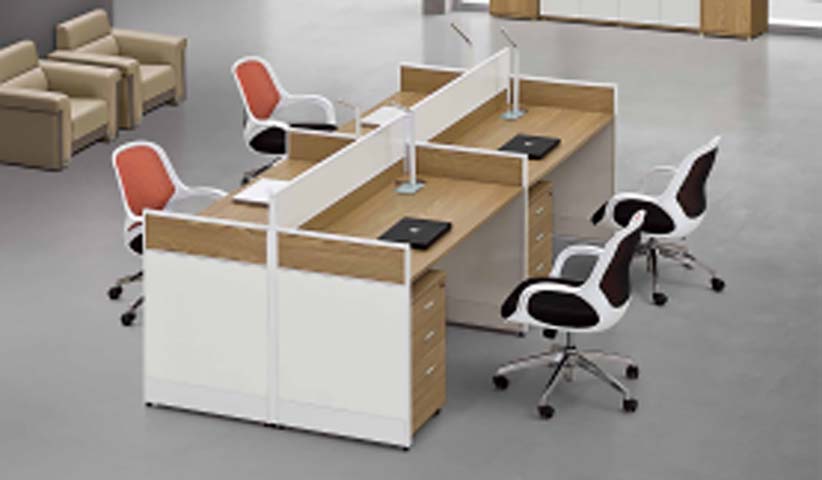

4-Person Modular Partitioned Office Workstation with Under-Desk Drawer Pedestals (model WS-4P-OAK-WHT-PED) is listed under L-Shaped Office Desk, with overall dimensions of 2800 × 2400 × 1100 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modular,workstation,fabric-upholstered,chairs,integrated,drawer,storage,desk-mounted,dividers. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity per seat | 120 kg | |
|---|---|---|
| Chair static weight capacity | 120 kg | |
| Workstation total net weight | 280 kg | |
| Pedestal drawer slide cycle life | 50000 cycles | |
| Chair caster rolling durability | 40000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and pedestal structure | 18mm thick E1-grade particleboard with 0.6mm melamine laminate | |
|---|---|---|
| Partition frames | 1.2mm thick cold-rolled steel with electrostatic white powder coating | |
| Partition infill panels | 15mm thick MDF with dual wood-grain and white melamine finish | |
| Chair upholstery (seat/back) | Breathable polyester mesh and molded polyurethane foam | |
| Chair support components | 1.5mm thick chromed steel five-star base, 3mm thick PA6 nylon armrests | |
| Drawer slides and hardware | Zinc-plated cold-rolled steel ball-bearing slides, stainless steel handle fasteners |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout configuration | Face-to-face 4-person modular layout with interlocking partitions | |
|---|---|---|
| Under-desk storage | Each outer position fitted with 3-drawer pedestal with integrated lock | |
| Cable management | Recessed desktop cable grommets route wiring under the work surface | |
| Matching chair adjustment | Swivel task chairs include 360-degree rotation and gas lift height adjustment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office space | Suitable for general administrative and team work areas, provides dedicated separated work zones | |
|---|---|---|
| Small business and startup offices | Ideal for 4-person team setups, integrated storage reduces additional furniture requirements |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
