PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static desktop uniform load capacity	100 kg
Recommended maximum user weight for seating at station	120 kg
Workstation unit net weight	58 kg
Number of occupants per station	1 person
Perforated screen sound transmission reduction	12 dB
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop surface	25mm thick E1-grade particleboard with 0.6mm wear-resistant melamine laminate
Divider vertical posts	Anodized aluminum alloy extrusions with 1.2mm wall thickness
Upper divider screen panels	0.8mm thick perforated cold-rolled steel with light gray powder coat
Lower modesty panels	18mm thick melamine-faced particleboard, matching two-tone light beige and taupe finish
Mobile pedestal body	18mm thick melamine-faced particleboard with matching two-tone finish
Drawer lock mechanism	Zinc alloy cylinder lock with matching keys
Support feet and casters	Nylon construction with rubber tread, swivel type with brake
Frame connection hardware	Zinc-plated steel bracket and bolt assembly
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Visual privacy divider system	1100mm tall two-section panels block seated direct line of sight between adjacent workstations
Mobile pedestal storage	Lockable top drawer and lower open storage compartment rolls fully under desk to free knee space
Cable routing access	Open gap between perforated upper panels and desktop allows power/data cables to pass between stations
Modular connection design	Vertical aluminum posts have integrated slots to connect additional workstations for linear or cluster layouts
Leveling adjustment capability	Base feet on frame posts have adjustable height to compensate for uneven floor surfaces
Caster locking function	Pedestal casters include step-on brake to fix unit in position during use
Wear-resistant desktop surface	Melamine laminate resists scuffs, coffee spills and abrasion from regular office use
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office individual workspaces	Creates separated personal work zones in open offices without full wall installation
Small business office fit-outs	Modular design allows flexible layout changes as team size adjusts
Shared co-working dedicated desks	Provides semi-private assigned seating with built-in personal storage for members
Administrative and clerical staff work areas	750mm desktop height fits standard office chairs for full-shift seated work
Call center workstation deployments	Perforated upper panels reduce visual distraction while maintaining open air flow
Temporary project team work areas	Can be connected into multi-station clusters and disassembled for reconfiguration

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture ergonomic requirements	EN 527:2011
Office furniture strength and durability	EN 527:2002+A1:2019
Formaldehyde emission from wood panels	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office desk structural safety	GB/T 3326
Panel furniture formaldehyde emission	GB 18580
Metal furniture coating adhesion	GB/T 2020
Office furniture stability testing	GB/T 10357.7

Standardized tender description text

This product must meet the following technical requirements:
1. Office desk structural safety: GB/T 3326;
2. Panel furniture formaldehyde emission: GB 18580;
3. Metal furniture coating adhesion: GB/T 2020;
4. Office furniture stability testing: GB/T 10357.7;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CUB-1P-MP1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CUB-1P-MP1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CUB-1P-MP1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

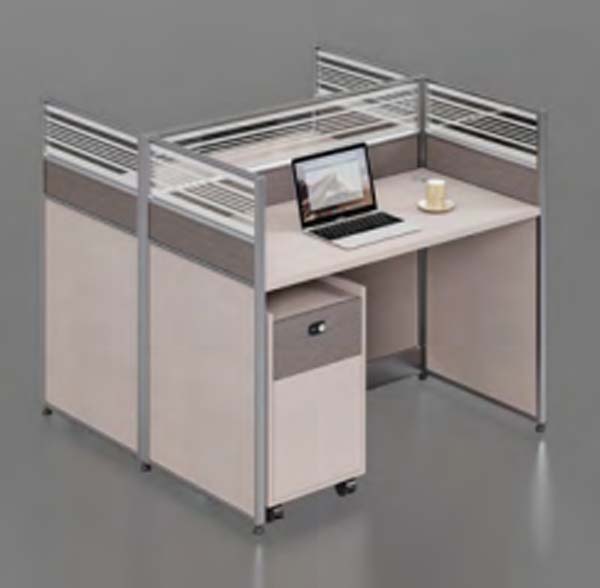

The Single-Seat Office Cubicle Workstation with Mobile Pedestal and Partial Divider Screens (model WS-CUB-1P-MP120) is an unbranded modular office cubicle designed for balanced privacy, flexibility, and functional performance in professional work environments. Its visual design features a neutral two-tone light beige and taupe finish across desk and storage surfaces, paired with 1100mm tall two-section divider panels. These dividers incorporate light gray powder-coated perforated cold-rolled steel upper panels and matching melamine-faced particleboard lower modesty panels, framed by sleek anodized aluminum alloy extrusions, creating a clean, understated aesthetic suitable for modern office interiors. The system’s modular aluminum posts include integrated connection slots to support linear or clustered workstation layouts, while adjustable base feet compensate for uneven floor surfaces to maintain a stable, level worksurface.
Construction blends durable, application-specific materials: the desktop uses 25mm E1-grade particleboard clad in 0.6mm wear-resistant melamine laminate, with load-bearing sections utilizing a 40mm composite build-up to deliver a 100kg uniform static load capacity, with a 150kg top static load reference. The 80mm metal support structure features 2mm wall thickness, connected via zinc-plated steel brackets and bolts for long-term structural stability. The accompanying mobile pedestal is constructed from 18mm melamine-faced particleboard, fitted with swivel thermoplastic casters with rubber treads and step-on brakes, and includes a zinc alloy lockable top drawer and lower open storage compartment. Perforated upper divider panels deliver 12dB of sound transmission reduction, while an integrated cable management system includes 80mm diameter cable openings, 120mm deep cable trays, and a gap between upper panels and the desktop to simplify power and data routing between connected stations.
This single-occupancy station supports a 120kg maximum user weight, with 680mm high and 900mm wide knee clearance per seat and a 750mm desktop height compatible with standard office chairs for full-shift use. The melamine desktop resists scuffs, coffee spills, and daily abrasion, and the lockable pedestal rolls fully under the desk to maximize available legroom when not in use. The 1100mm dividers block direct seated line of sight between adjacent stations to reduce visual distraction while preserving open airflow. The workstation suits open-plan office individual work zones, small business fit-outs requiring adjustable layouts as team sizes change, dedicated co-working desks with semi-private assigned seating, administrative and clerical work areas, call center deployments, and temporary project team spaces that require frequent reconfiguration. For procurement, note that each unit ships with a net weight of 58kg, packaged across cartons with a total 1m³ volume and 180kg packaged gross weight, requiring 40 minutes of assembly per set. The modular design allows incremental expansion by connecting additional matching units, eliminating the need for permanent full wall installations during office setup.

Single-Seat Office Cubicle Workstation with Mobile Pedestal and Partial Divider Screens Specifications
