PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1100 mm
standard work surface height	750 mm
single L-station worktop size	1400 x 1400 mm
work surface thickness	25 mm
low partition divider height	350 mm
partition panel thickness	18 mm
knee clearance width	700 mm
knee clearance height	620 mm
mobile pedestal dimensions	620 x 420 x 450 mm
CPU shelf dimensions	300 x 500 mm
cable grommet diameter	60 mm
modesty panel height	350 mm
drawer interior depth	400 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total product weight	130 kg
work surface static load capacity	100 kg
pedestal drawer static load	25 kg
CPU shelf static load	30 kg
recommended user count	2
surface scratch resistance rating	2000 cycles
adjustable leveler adjustment range	15 mm
warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

work surface	E1 grade melamine-faced particleboard with 2mm PVC edge banding
partition frame	Powder-coated white steel tubing frame
partition infill panel	Semi-transparent frosted acrylic panel
support side panels	18mm thick melamine-faced MDF white finish
mobile pedestal carcase	16mm thick melamine-faced particleboard light woodgrain
pedestal drawer fronts	1mm thick powder-coated steel grey finish
drawer slides	Full extension ball bearing steel slides
pedestal casters	50mm diameter nylon swivel casters with lock
cable grommets	ABS plastic round cable port caps with brush insert
CPU shelf	1mm thick powder-coated white steel shelf with raised lip
modesty panels	15mm thick melamine-faced MDF matching light wood finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

workspace separation	350mm high dividers create independent visual separation between two adjacent work positions
cable management	One round grommet per desk routes power and data cables from surface to floor
mobile storage	3-drawer lockable rolling pedestal fits under left work surface for personal file storage
CPU support	Elevated fixed steel shelf under each outer work surface holds desktop computer towers off floor
floor leveling	Adjustable steel levelers at each support base compensate for uneven office flooring
curved knee opening	Concave curved front cutout at each station improves seated leg clearance and edge comfort
modular configuration	Freestanding unit can be connected to additional matching workstations to form larger cubicle clusters
pedestal lock	Central key lock secures all three drawers on the mobile pedestal for personal item security
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office staff zones	Ideal for two-person team clusters in open office layouts, balancing collaboration and personal space
small business startup offices	Suitable for small teams requiring cost-effective dual workstations with integrated storage
call center and admin departments	Appropriate for high-density administrative or customer service work areas
shared co-working spaces	Configurable for dedicated team pods in flexible co-working environments
recommended seating pairing	Pair with two height-adjustable ergonomic office task chairs for seated use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for work surface structural performance
EN 527-2:2016	Office worktables dimensional safety and clearance requirements for seated use
EN 13722:2004	Office furniture mobile storage pedestals strength and durability requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products safety and durability standard for commercial office workstations
ANSI/BIFMA X5.9-2019	Storage units performance standard for mobile pedestal drawer and lock durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktop and panel structural performance
GB/T 3327-2016	Office desk dimensional and performance standards for work surface height and clearance
GB 18580-2017	Formaldehyde emission limits for engineered wood panels used in furniture, E1 grade requirement

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and panel structural performance;
2. GB/T 3327-2016: Office desk dimensional and performance standards for work surface height and clearance;
3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels used in furniture, E1 grade requirement;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2P-CURV-3D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2P-CURV-3D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2P-CURV-3DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

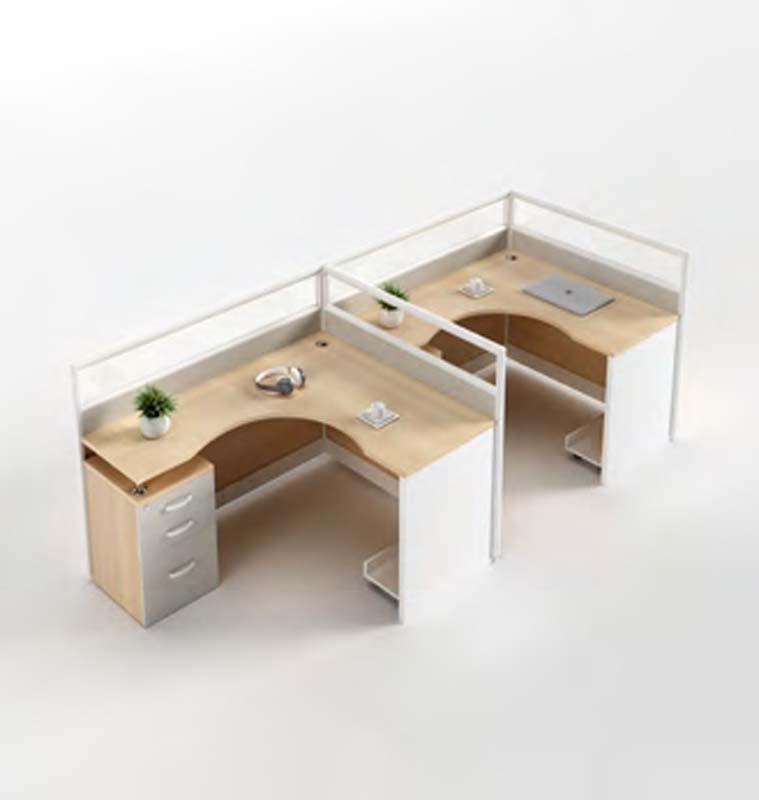

The WS-L2P-CURV-3D double-seat L-shaped partition office workstation is an unbranded open-design public office furniture solution built for two users, with a structured layout that balances collaborative access and personal work boundaries. Its overall form follows a connected L-shaped footprint, with two equal 1400 x 1400 mm workstations set at a right angle, separated by 350mm high low dividers that sit atop work surfaces set at a standard 750 mm seated height. Each station features a concave curved front knee cutout, with 700 mm width and 620 mm height of unobstructed knee space, for comfortable extended seated use.
Durable, commercial-grade materials form the unit’s construction: 25mm thick E1 grade melamine-faced particleboard worktops are finished with 2mm PVC edge banding, supported by powder-coated white steel tubing frames and 18mm thick white melamine-faced MDF side support panels. Dividers use semi-transparent frosted acrylic infill panels set within white metal frames, for gentle visual separation without blocking ambient light. The included 3-drawer lockable mobile pedestal uses 16mm light woodgrain melamine-faced particleboard for its carcase, grey powder-coated steel drawer fronts, full-extension ball bearing steel slides, and lockable 50mm nylon swivel casters. Fixed elevated steel CPU shelves sit under each outer work surface, and ABS plastic round cable grommets with brush inserts are fitted to each desk surface. Adjustable steel levelers at each base provide 15mm of adjustment to correct for uneven flooring.
Functional features support smooth daily office use: the low dividers create soft visual separation between adjacent seats, while the open frame design retains easy communication between teammates. Each cable grommet routes power and data cables neatly from the work surface to the floor to reduce clutter. The rolling pedestal fits neatly under the left work surface to hold personal files and office supplies, while the elevated CPU shelves keep computer towers off the floor to reduce dust buildup and simplify cleaning. The freestanding unit can be connected to matching workstations to build larger clustered cubicle layouts as needed.
This workstation is ideal for two-person team clusters in open-plan office staff zones, cost-effective fit-outs for small startup offices, high-density admin and call center departments, and dedicated team pods in shared co-working spaces. It pairs optimally with two height-adjustable ergonomic office task chairs for standard seated use. For procurement planning, note each set ships across multiple cartons, requires 40 minutes of assembly per unit, and supports a 100kg static load on work surfaces, 25kg per pedestal drawer, and 30kg per CPU shelf.

2-Person L-Shaped Partition Office Workstation with Low Dividers and Mobile Pedestal Specifications
