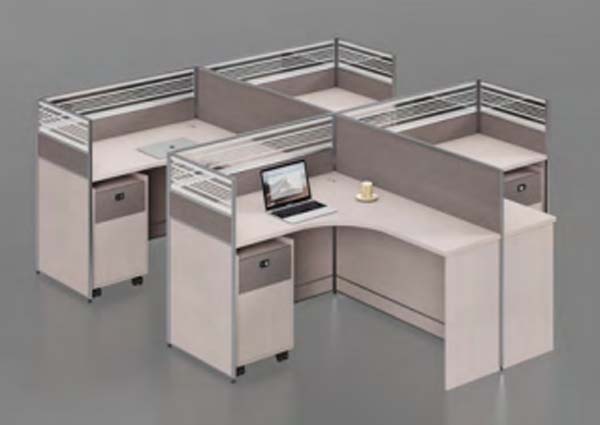

4-Person Cross-Shaped Modular Office Cubicle Workstation with Curved L-Shaped Desks and Mobile Pedestals (model CUB-4C-L1200) is listed under L-Shaped Office Desk. Dimensions: 2820 × 2820 × 1200 mm. Materials: 18mm MFC particleboard with 25mm total thickness melamine laminate. Load capacity: 120 kg. Product Features: 4-seat,cross,layout,partial-height,privacy,dividers,curved,L-shaped,work,castered,mobile,file,pedestals,integrated,cable,management,two-tone,beige-grey,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | CUB-4C-L1200 |
| Overall dimensions (W × D × H) | 2820 × 2820 × 1200 mm | Overall cluster footprint | 2820 x 2820 x 1200 mm |
| Work surface height above floor | 750 mm | Primary per-seat work surface size | 1200 x 600 mm |
| Curved corner return surface size | 600 x 600 mm | Partition divider thickness | 42 mm |
| Seated knee clearance height under desk | 650 mm | Seated knee clearance depth | 450 mm |
| Perforated upper partition height | 300 mm | Solid lower partition height | 900 mm |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | Cable grommet diameter | 60 mm |
| Aluminum frame wall thickness | 1.8 mm | Work surface panel thickness | 25 mm |
| Primary Component Thickness | 40 mm according to load-bearing role | Hardware / Moving-part Clearance | 5 mm operating clearance |
| Total set net weight | 471 kg | Per-seat static work surface load capacity | 120 kg |
| Caster rolling load rating per pedestal | 60 kg | Seating capacity | 4 users |
| Laminate surface abrasion resistance | 2000 cycles | Product warranty | 10 years |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years | Work surface substrate | 18mm MFC particleboard with 25mm total thickness melamine laminate |
| Work surface edge banding | 2mm thick PVC edge trim | Partition frame | Powder-coated silver aluminum alloy with 1.8mm wall thickness |
| Upper partition section | Perforated steel mesh insert in aluminum frame | Lower partition section | Tackable polyester fabric over 25mm MDF core |
| Mobile pedestal body | 16mm melamine-laminated particleboard construction | Drawer hardware | Powder-coated steel drawer slides with integrated key lock |
| Pedestal casters | 50mm diameter black nylon swivel casters | Mounting hardware | Zinc-plated steel connection brackets and screws |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | Reference Finish / Color Count | Recommended 6finish options |
| Modular connection system | Knock-down aluminum bracket connections allowing reconfiguration into linear, T or H layouts | Mobile pedestal mobility | Four swivel casters per pedestal allowing under-desk positioning and easy access to files |
| Drawer lock function | Keyed lock per pedestal securing both drawers to protect confidential documents | Cable management | Desktop cable grommets at each work position routing power and data cables below surface |
| Pin-up surface function | Fabric lower partition sections accepting push pins for posting notes and documents | Acoustic privacy performance | Fabric-covered partition panels reducing cross-seat noise transmission for focused work |
| Under-desk modesty panel | Solid lower partition sections blocking seated leg visibility from adjacent workspaces | Caster locking function | Two lockable casters per pedestal preventing unintended movement during use |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Packaging Volume | 0.8 m³/set |
| Reference Packaged Gross Weight | 120 kg/set | Open-plan office spaces | Provides semi-private dedicated workstations for 4 staff in open office layouts |
| Call center and administrative work areas | Balances privacy for focused tasks and visibility for team supervision | Small business and startup offices | Space-efficient 4-person layout maximizes floor space utility for small teams |
| Temporary office fit-outs | Modular knock-down design allows fast installation and future reconfiguration | Corporate department workgroups | Integrated storage and cable management supports daily administrative and computer work |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 2820 × 1200 mm | |
|---|---|---|
| Overall cluster footprint | 2820 x 2820 x 1200 mm | |
| Work surface height above floor | 750 mm | |
| Primary per-seat work surface size | 1200 x 600 mm | |
| Curved corner return surface size | 600 x 600 mm | |
| Partition divider thickness | 42 mm | |
| Seated knee clearance height under desk | 650 mm | |
| Seated knee clearance depth | 450 mm | |
| Perforated upper partition height | 300 mm | |
| Solid lower partition height | 900 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Cable grommet diameter | 60 mm | |
| Aluminum frame wall thickness | 1.8 mm | |
| Work surface panel thickness | 25 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 471 kg | |
|---|---|---|
| Per-seat static work surface load capacity | 120 kg | |
| Caster rolling load rating per pedestal | 60 kg | |
| Seating capacity | 4 users | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Product warranty | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | 18mm MFC particleboard with 25mm total thickness melamine laminate | |
|---|---|---|
| Work surface edge banding | 2mm thick PVC edge trim | |
| Partition frame | Powder-coated silver aluminum alloy with 1.8mm wall thickness | |
| Upper partition section | Perforated steel mesh insert in aluminum frame | |
| Lower partition section | Tackable polyester fabric over 25mm MDF core | |
| Mobile pedestal body | 16mm melamine-laminated particleboard construction | |
| Drawer hardware | Powder-coated steel drawer slides with integrated key lock | |
| Pedestal casters | 50mm diameter black nylon swivel casters | |
| Mounting hardware | Zinc-plated steel connection brackets and screws | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection system | Knock-down aluminum bracket connections allowing reconfiguration into linear, T or H layouts | |
|---|---|---|
| Mobile pedestal mobility | Four swivel casters per pedestal allowing under-desk positioning and easy access to files | |
| Drawer lock function | Keyed lock per pedestal securing both drawers to protect confidential documents | |
| Cable management | Desktop cable grommets at each work position routing power and data cables below surface | |
| Pin-up surface function | Fabric lower partition sections accepting push pins for posting notes and documents | |
| Acoustic privacy performance | Fabric-covered partition panels reducing cross-seat noise transmission for focused work | |
| Under-desk modesty panel | Solid lower partition sections blocking seated leg visibility from adjacent workspaces | |
| Caster locking function | Two lockable casters per pedestal preventing unintended movement during use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office spaces | Provides semi-private dedicated workstations for 4 staff in open office layouts | |
|---|---|---|
| Call center and administrative work areas | Balances privacy for focused tasks and visibility for team supervision | |
| Small business and startup offices | Space-efficient 4-person layout maximizes floor space utility for small teams | |
| Temporary office fit-outs | Modular knock-down design allows fast installation and future reconfiguration | |
| Corporate department workgroups | Integrated storage and cable management supports daily administrative and computer work |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensions, applicable to work surface height and clearance | |
| EN 1022:2018 | Furniture stability test for seating and storage units, applicable to mobile pedestals | |
| EN 71-3:2019 | Migration of certain elements, applicable for indoor furniture material safety |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for commercial office use | |
|---|---|---|
| ANSI/BIFMA X5.3-2021 | Vertical files and mobile pedestals strength and durability standard | |
| ANSI/BIFMA X5.9-2019 | Storage units safety and performance for office applications |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to work surfaces and cabinet components | |
|---|---|---|
| GB/T 3327-2018 | Technical requirements for office desks, applicable to work surface strength and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality | |
| GB/T 4897.3-2018 | Particleboard for furniture use, applicable to work surface and cabinet substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surfaces and cabinet components; 2. GB/T 3327-2018: Technical requirements for office desks, applicable to work surface strength and stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality; 4. GB/T 4897.3-2018: Particleboard for furniture use, applicable to work surface and cabinet substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
