PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1500 × 1500 mm
Overall footprint dimensions	1500 x 1500 x 1500 mm
Work surface height above floor	750 mm
Main work surface dimensions	1500 x 600 mm
Return work surface dimensions	1500 x 600 mm
Seated knee clearance width under main surface	800 mm
Seated knee clearance height under work surface	650 mm
Worktop panel thickness	25 mm
Partition divider total thickness	60 mm
Upper open hutch shelf internal height	350 mm
Cable grommet diameter on return surface	60 mm
Adjustable caster/leveler foot height adjustment range	20 mm
PVC edge banding thickness on worktop	2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static uniform load capacity	150 kg
Drawer slide (fitted cabinet) cycle rating	50000 cycles
Cabinet door hinge cycle rating	80000 cycles
Melamine surface abrasion resistance rating	2000 cycles
Net product weight reference	95 kg
Recommended maximum user weight for work surface use	136 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panels	E1 grade MFC with matte melamine laminate finish
Edge banding for all exposed panel edges	2mm thick PVC matching light off-white panel finish
Partition divider frame	Anodized aluminum alloy extruded profile
Lower partition privacy panels	Tackable dark grey woven fabric over MDF core
Upper partition ventilation slats	Horizontal slatted aluminum sections with open air gaps
Storage cabinet door and shelves	Melamine-faced MFC matching worktop finish
Locking hardware for cabinet and drawer	Chrome-plated zinc alloy with keyed lock
Leveling caster feet	Nylon tread with steel threaded stem
Cable management grommet	ABS plastic with removable brush insert
Under-desk modesty panel	Dark grey melamine-faced MFC with steel support rail
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-sided fabric privacy partition	1500mm total height providing seated user visual privacy
Integrated upper open hutch storage	Two divided open shelves positioned above return work surface
Lower open adjustable shelving	One fixed and one adjustable shelf for flexible storage sizing
Keyed lockable lower storage cabinet	Single door with integrated lock securing personal or confidential items
Lockable integrated storage drawer	Fabric-faced drawer front positioned above cabinet door with lock
Under-desk cable management grommet	Round opening on return surface routing power and data cables to floor
Lockable caster leveling feet	Swivel casters with height adjustment for mobility and floor leveling
Modular panel connection system	Disassembly-compatible connectors allowing reconfiguration or extension
Slatted upper partition ventilation	Horizontal open slats improving air circulation between workstations
Lockable lower cabinet internal dimensions	400 x 450 x 700 mm
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office individual staff workstations	Provides partitioned privacy for administrative, clerical and data entry roles
Small startup office dedicated work positions	Integrated storage eliminates need for separate standalone storage cabinets
Call center and customer service team seating	Privacy dividers reduce cross-talk distraction between adjacent agents
Government and corporate administrative areas	Lockable storage secures confidential documents and personal belongings
Studio and freelance workspaces	Integrated cable management and storage supports desktop computer setups
Temporary office and project team deployments	Caster feet enable easy reconfiguration and relocation of work positions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable for work surface performance
EN 527-2:2016	Office worktables dimensional safety requirements, applicable for clearance dimensions
EN 13986:2004	Wood-based panels for construction, applicable for MFC panel performance standards

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable for strength and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable for integrated cabinet and shelves

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel desk components
GB/T 3327-2016	Technical requirements for office desks and workstations, applicable for structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade compliance recommendation
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable for load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk components;
2. GB/T 3327-2016: Technical requirements for office desks and workstations, applicable for structural performance;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade compliance recommendation;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable for load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CUB-1S-HC-1500

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CUB-1S-HC-1500

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CUB-1S-HC-1500Open Export Tool

Quick Actions

Post an RFQ

Product Description

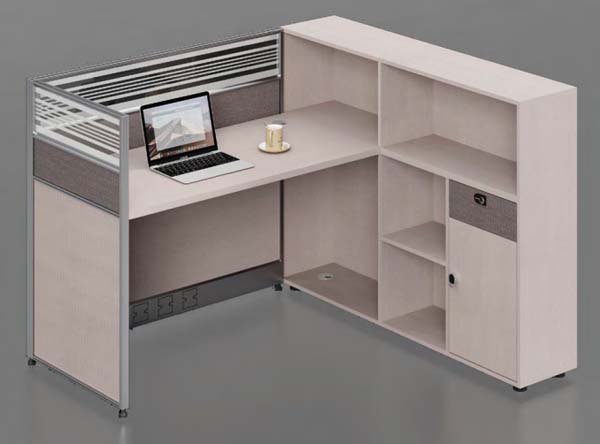

This single-person L-shaped partition office workstation is configured as a compact cubicle desk that balances open accessibility and individual privacy for focused work. Its symmetrical L-shaped layout creates two connected work surfaces joined at a right angle, surrounded by two-sided privacy dividers that rise to full seated eye level to block cross-visibility between adjacent users. An integrated open hutch sits above the return work surface, with two divided open shelves for frequently accessed items, while lower storage components align with the desk frame to avoid protruding into circulation space.
The workstation is constructed with durable, office-grade materials. Work surfaces are made of E1 grade MFC with a matte melamine laminate finish, with all exposed panel edges protected by color-matched 2mm PVC edge banding to prevent chipping and wear. Privacy dividers feature anodized aluminum alloy frames, with lower sections covered in tackable dark grey woven fabric over an MDF core, and upper sections fitted with horizontal slatted aluminum for passive air flow. All hardware is powder-coated metal, with chrome-plated zinc alloy locking mechanisms for secured storage, nylon and steel leveling caster feet, and ABS cable management grommets fitted with removable brush inserts.
Functional features are integrated to support daily work tasks. The lockable lower cabinet includes one fixed and one adjustable shelf for flexible storage of personal items or work materials, paired with a lockable fabric-fronted drawer positioned above the cabinet door. The round cable grommet on the return work surface routes power and data cables cleanly from desktop devices to under-desk pathways, while the lockable swivel caster feet enable both easy repositioning and stable, level placement on uneven flooring.
This workstation is suited for a wide range of commercial and flexible work spaces, including open-plan office stations for administrative, clerical and data entry staff, small startup offices, call center and customer service seating floors, government and corporate administrative areas, independent studio and freelance workspaces, and temporary project team office setups.
For procurement planning, note that each unit is shipped across multiple cartons, with a reference assembly time per set for on-site teams. The integrated storage removes the need for separate standalone storage furniture purchases, and the modular design supports scaled deployment for teams of varying sizes.

Single-Person L-Shaped Partition Office Workstation with Integrated Hutch and Lockable Storage Cabinet Specifications
