Name: 4-Person L-Shaped Cross-Partition Office Cubicle Workstation Cluster
Brand: KANAITE
SKU: 8U4CHW

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 2840 × 1100 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation net weight	350 kg
Desktop static load capacity per station	100 kg
Mobile pedestal drawer static load per drawer	25 kg
Surface scratch resistance	2000 cycles
Recommended maximum user weight per station	120 kg
Product warranty period	5 years
Available finish color count	5
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core	E1-grade particle board
Desktop surface	0.6mm fire-resistant melamine laminate
Desktop edge	2.0mm PVC edge banding
Support frame and legs	1.0mm thick powder-coated steel
Partition framing	1.2mm thick aluminum alloy
Partition screen panel	40mm thick composite panel with white metal top rail
Mobile pedestal body	Steel drawer construction with light wood laminate front
Hardware locks and slides	Steel ball-bearing drawer slides with keyed locks
Leveling feet and casters	Nylon caster on CPU stands, adjustable plastic leveling feet on legs
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Symmetric 2x2 cross partition creating 4 identical L-shaped seated work positions
Cable management system	Desktop grommet per station with under-desk split cable trough routing separated power/data lines
Storage per workstation	Lockable 3-drawer mobile pedestal for filing and office supplies, rolling for flexible positioning
CPU support	Fixed under-desk metal platform with casters per station to hold desktop computer towers
Seated access	Curved front knee cutout on each L-desk to allow unobstructed chair entry and leg movement
Modular assembly	Knock-down flat-pack construction allowing reconfiguration or expansion of workstation clusters
Partition separation	350mm high low dividers between stations to reduce visual distraction while maintaining open office airflow
Leveling adjustment	Adjustable feet on support legs to compensate for uneven office flooring
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Suitable for 4 employees in general administration, data entry, or customer support roles
Call center workspace	Dedicated individual stations reduce cross-talk interference while supporting team supervision
Co-working shared office spaces	Modular 4-person cluster provides flexible dedicated work zones for day-use members
Small business open work areas	All-in-one cluster includes storage and cable management to reduce separate furniture procurement
Startup team offices	Cost-effective clustered layout maximizes seating density without high partition enclosure

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to desk surface and support structure
EN 1335-1:2020	Office furniture work chair dimensional compatibility, applied to knee clearance dimensions
EN 12521:2015	Furniture strength durability safety for domestic and non-domestic seating-adjacent tables

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, reference for load and durability testing criteria
ANSI/BIFMA X5.9-2019	Storage units performance standard, reference for mobile pedestal drawer durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktop and storage panel components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1-grade desktop core material
GB/T 5237.1-2017	Aluminum alloy architectural profiles, applicable to partition frame construction

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and storage panel components;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade desktop core material;
3. GB/T 5237.1-2017: Aluminum alloy architectural profiles, applicable to partition frame construction;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CUB-4L-2828

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CUB-4L-2828

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CUB-4L-2828Open Export Tool

Quick Actions

Post an RFQ

Product Description

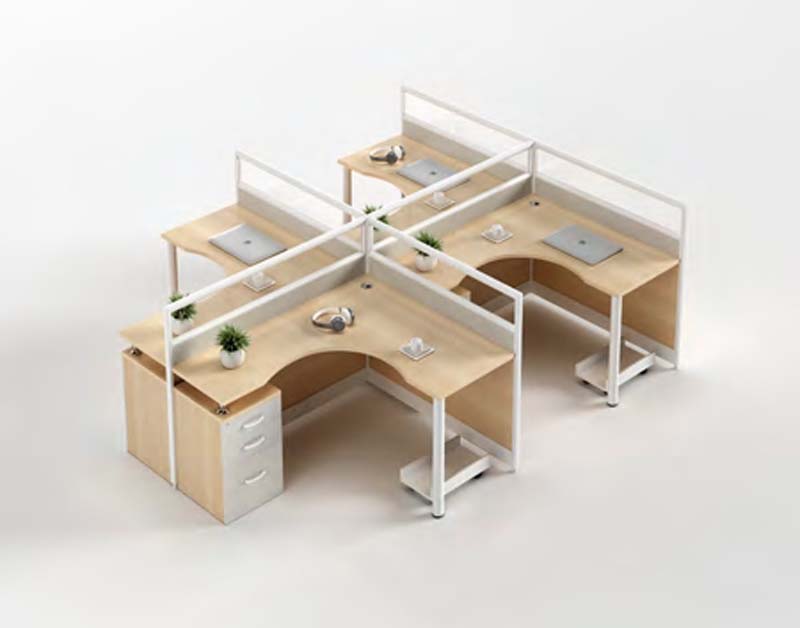

The KANAITE 4-Person L-Shaped Cross-Partition Office Cubicle Workstation Cluster, model WS-CUB-4L-2828, delivers a balanced open yet segmented workspace solution for modern professional environments. Visually, the unit features a symmetric 2x2 cross-partition layout that forms four identical L-shaped seated work positions, unified by low 350mm dividers between stations. These dividers cut down visual distraction while preserving open office airflow, creating a cohesive, light-filled cluster rather than enclosed, isolated booths. Each L-shaped desk incorporates a curved front knee cutout to support unobstructed chair entry and comfortable leg movement for seated users.
Constructed for consistent daily use, the workstation uses E1-grade particle board for desktop cores, finished with 0.6mm fire-resistant melamine laminate that resists surface scratching across 2000 cycles of regular contact, and sealed with 2.0mm PVC edge banding. Primary structural components are sized to 40mm thickness aligned with load-bearing requirements, supported by 1.0mm thick powder-coated steel legs fitted with adjustable plastic leveling feet. Partition framing uses 1.2mm thick aluminum alloy, holding 40mm thick composite screen panels topped with white metal rails. Each station includes a lockable 3-drawer mobile pedestal built from steel with light wood laminate fronts, running on steel ball-bearing slides with keyed locks, plus a fixed under-desk metal CPU platform fitted with nylon casters. All moving hardware maintains 5mm operating clearance for smooth, reliable function.
Functional features support streamlined daily work: every station has a desktop cable grommet paired with an under-desk split cable trough that routes power and data lines separately to reduce clutter. The knock-down flat-pack design allows straightforward reconfiguration or expansion of clusters, with a reference assembly time of 40 minutes per set, packaged across two cartons. Each desktop supports 100kg of static load, each mobile pedestal drawer holds 25kg of static weight, and each station accommodates a maximum user weight of 120kg, with a total net workstation weight of 350kg. The product is backed by a 5-year warranty, offered in 5 finish color options.
This cluster is ideal for open-plan office staff areas supporting general administration, data entry, or customer support teams, call center workspaces where individual stations reduce cross-talk while enabling easy team supervision, co-working shared spaces needing flexible dedicated day-use zones, small business open work areas seeking all-in furnishing to cut separate procurement needs, and startup offices aiming to maximize seating density without restrictive high partitions. Procurement teams should note the packaged gross weight of 120kg per set and 0.8m³ packaging volume, and can leverage the modular design to scale installations to match team size over time.

4-Person L-Shaped Cross-Partition Office Cubicle Workstation Cluster Specifications
