Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall single workstation footprint | 1400 x 1200 x 1200 mm | |
|---|---|---|
| Main work surface | 1400 x 600 mm | |
| Return work surface | 1200 x 600 mm | |
| Work surface height | 750 mm | |
| Desktop thickness | 25 mm | |
| Curved knee opening width | 700 mm at the narrow user edge | |
| Minimum under-desk knee clearance | 650 mm wide x 500 mm deep x 680 mm high | |
| Pedestal cabinet | 400 x 550 x 680 mm | |
| Utility drawer | 360 x 480 x 120 mm internal opening | |
| Lower filing drawer | 360 x 480 x 500 mm internal opening | |
| Partition panel height above floor | 1200 mm | |
| Partition panel thickness | 18 mm | |
| Privacy screen above desk | 450 mm | |
| Square support leg | 50 x 50 mm section, 1.2 mm wall | |
| Leveling foot diameter | 30 mm with 15 mm adjustment | |
| Cable grommet | 60 mm diameter |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 91 kg | |
|---|---|---|
| Pedestal top-surface load | 30 kg | |
| Utility drawer load | 15 kg | |
| Filing drawer load | 25 kg | |
| Drawer slide endurance | 50,000 open-close cycles | |
| Hinge-free drawer and panel service life | 10 years | |
| Single seated user capacity | 1 person | |
| Net weight | 70 kg | |
| Surface cleanability | Wipe-clean laminate and woven fabric screen with no removable cover visible | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 25 mm wood-composite board with melamine laminate surface | |
|---|---|---|
| Worktop edge | 2 mm PVC edge banding with matched woodgrain finish | |
| Drawer pedestal carcass | 18 mm melamine-laminated composite board in oak-tone and off-white fronts | |
| Drawer fronts | Woodgrain melamine face with integrated recessed front and metal lock cylinder | |
| Privacy panels | Fabric-wrapped panel over rigid core with light metal perimeter frame | |
| Steel legs and rails | Powder-coated square steel tube in off-white with black adjustable glides | |
| Modesty panels | Dark grey rigid composite panels beneath rear and return work surfaces | |
| Drawer slides | Side-mounted ball-bearing telescoping slides, 45 mm nominal width | |
| Leveling feet | Glass-filled nylon foot pad with threaded steel stem | |
| Pedestal base plinth | Steel or rigid composite plinth rail with four raised floor contacts | |
| Cable grommet | Round plastic cap with brushed-metallic finish and removable cable slot | |
| Fasteners and connectors | Steel cam, bracket and rail fasteners for knock-down assembly |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

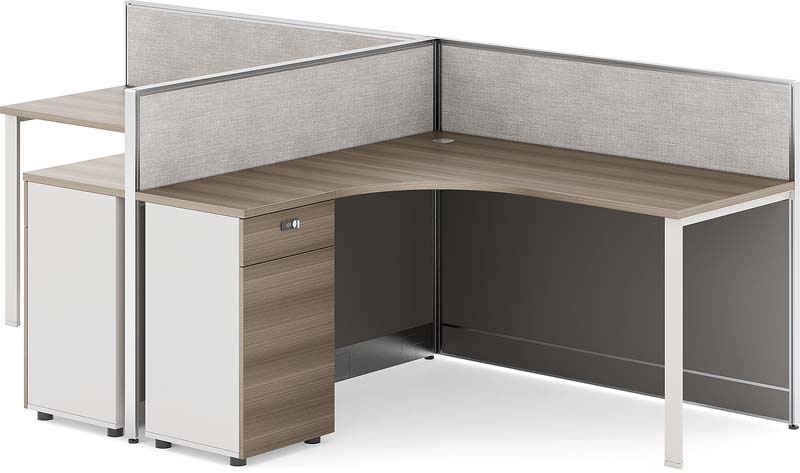

| L-shaped seated workflow | Main run and return create a 1400 x 1200 mm corner workspace with a curved front entry | |
|---|---|---|
| Privacy screening | Fabric panels form back and side boundaries while leaving the user front open for communication | |
| Pedestal storage | One shallow utility drawer and one tall lower drawer occupy the left knee-bay side | |
| Centralized drawer lock | Metal cylinder lock on the upper drawer secures the drawer set with key operation | |
| Filing storage layout | Lower drawer provides a 500 mm deep file bay suited to A4 and letter hanging files | |
| Cable routing | A 60 mm desktop grommet feeds monitor and power cables toward the under-desk corner | |
| Under-desk modesty cover | Dark panels screen the rear and return-side leg area without blocking the curved entry | |
| Floor leveling | Each metal leg and pedestal support uses adjustable glides for uneven office floors | |
| Cluster expansion | Screen frames and shared corner posts permit mirrored benches to connect into multi-seat clusters | |
| Knock-down installation | Top, legs, panels, modesty boards and pedestal ship separately and assemble with mechanical connectors | |
| Configuration hand | Pedestal can be planned on the left or mirrored side when paired with the neighboring station | |
| Chair movement clearance | The 680 mm high knee bay accommodates a standard task chair with seat height up to 500 mm |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office clusters | Suitable for grouped staff seating because shared screens and mirrored modules form compact cubicle rows | |
|---|---|---|
| Administrative workstation | Provides document storage and a large corner top for computer, phone and paperwork | |
| Shared service desks | Usable for finance, HR or administration roles needing locked personal drawer storage | |
| Project teams | Can be repeated in linear or back-to-back runs while keeping low visual division | |
| Hybrid filing and computer work | Return surface supports reference documents while the main run holds monitors and keyboard | |
| Small and medium enterprise fit-out | Knock-down cartons and repeatable modules suit phased floor deployment and bulk ordering |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 office desks | Defines safety, strength and durability requirements for non-domestic work desks | |
|---|---|---|
| EN 527-2:2002 office desk mechanical safety | Covers stability, strength and durability test methods for office work surfaces | |
| EN 1022:2018 seating stability | Applies only if task chairs are included in the workstation package | |
| EN 717-1 formaldehyde emission | Provides chamber-based formaldehyde emission measurement for wood-based panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 load test scope | Backstop, leg, drawer and top load tests should cover the 91 kg desktop planning load | |
|---|---|---|
| ANSI/BIFMA e3 furniture sustainability | Covers material, energy, human-health and social impacts if sustainable procurement is required |
Standards applicable to China-market projects
| GB/T 3324-2017 general technical requirements | Applies to dimensions, workmanship and structural quality of wooden office furniture | |
|---|---|---|
| GB/T 3325-2017 metal furniture requirements | Applies to the steel legs, rails and coated metal structural components | |
| GB/T 17657-2013 wood-based panel tests | Applies to substrate physical properties such as moisture resistance and bond strength | |
| GB 18580-2017 formaldehyde emission | Applies to formaldehyde emission limits for wood-based decorative panels | |
| GB/T 4893.1-2021 surface resistance tests | Applies to laminate resistance to liquids, heat, wear and impact during furniture testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017 general technical requirements: Applies to dimensions, workmanship and structural quality of wooden office furniture; 2. GB/T 3325-2017 metal furniture requirements: Applies to the steel legs, rails and coated metal structural components; 3. GB/T 17657-2013 wood-based panel tests: Applies to substrate physical properties such as moisture resistance and bond strength; 4. GB 18580-2017 formaldehyde emission: Applies to formaldehyde emission limits for wood-based decorative panels; 5. GB/T 4893.1-2021 surface resistance tests: Applies to laminate resistance to liquids, heat, wear and impact during furniture testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
