PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2400 × 1200 mm
Overall footprint (W x D x H)	2400 x 2400 x 1200 mm
Individual work surface size (per seat)	1200 x 600 x 750 mm
Privacy partition height	1200 mm
Seated knee clearance height under worktop	650 mm
Knee bay width per user	1100 mm
Mobile pedestal dimensions (per unit)	400 x 500 x 600 mm
Cable grommet diameter	60 mm
Partition panel thickness	25 mm
Worktop thickness	25 mm
Frame post cross-section dimension	30 x 30 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per work surface static load capacity	100 kg
Work surface surface abrasion resistance	2000 cycles
Total recommended user capacity	4 people
Total product net weight (all components)	175 kg
Warranty period (normal commercial use)	3 years
Available finish color count	60
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	18mm thick E1 grade particleboard
Work surface finish	0.7mm thick woodgrain melamine laminate
Work surface edging	2mm thick PVC edge banding
Privacy partition panels	Fabric-wrapped 22mm MDF core with 25mm aluminum frame
Frame structural components	Powder-coated aluminum alloy extrusions
Mobile pedestal body	0.8mm thick cold-rolled steel with powder coat finish
Pedestal casters	50mm diameter hard nylon swivel casters
Cable grommet	ABS plastic round desk grommet
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Pre-drilled 60mm grommet per work surface for power/data cable routing
Mobile pedestal configuration	1 lockable top drawer + 1 lower hinged storage door per seat
Modular reconfiguration capability	Disassemblable aluminum frame system allows layout adjustment
Privacy separation function	1200mm tall fabric dividers block line of sight between adjacent seated users
Leveling adjustment	Adjustable glide feet at all partition base corners
Pedestal mobility	Four swivel casters per pedestal allow easy movement for cleaning or access
Locking storage	Keyed lock on top pedestal drawer secures personal office supplies
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Provides semi-private individual work bays for teams in open office layouts
Call center and administrative offices	Separated work zones support focused individual task work with low distraction
Small business team work areas	All-in-one cluster includes work surfaces and storage for 4 staff without custom buildout
Co-working shared workspaces	Modular design allows reconfiguration as tenant needs change
Government and corporate procurement projects	Standard dimensions and construction meet public sector commercial furniture requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and performance requirements for desk components
EN 14073-2:2004	Office storage furniture safety requirements for mobile pedestal units
EN 1022:2018	Furniture seating/storage stability testing for pedestal anti-tip performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for worktop load and durability
ANSI/BIFMA X5.9-2019	Storage units performance standard for mobile pedestal load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and partition panels
GB/T 14531-2017	Office furniture storage unit performance requirements, applicable to mobile pedestals
GB 18580-2017	Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement
GB/T 3326-2016	Furniture desk performance test methods, applicable to worktop load and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and partition panels;
2. GB/T 14531-2017: Office furniture storage unit performance requirements, applicable to mobile pedestals;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement;
4. GB/T 3326-2016: Furniture desk performance test methods, applicable to worktop load and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-4CROSS-1206-WP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-4CROSS-1206-WP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-4CROSS-1206-WPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

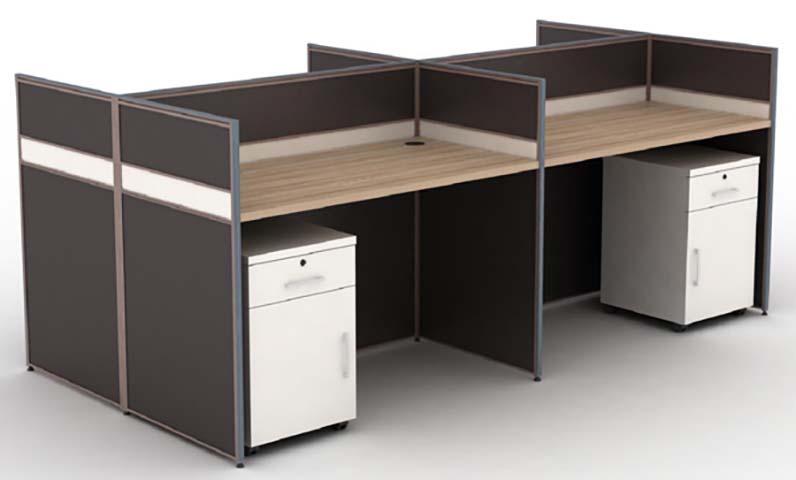

The 4-Person Cross-Shaped Modular Office Cubicle Workstation with Mobile Pedestals (model CUB-4CROSS-1206-WP) is an unbranded commercial office furniture solution designed to balance team accessibility and individual work privacy. Its cross-shaped layout divides a 2400 x 2400 x 1200 mm total footprint into four equal, outward-facing individual work bays, each outfitted with a 1200 x 600 mm work surface positioned at a 750 mm standard desk height. The 1200 mm tall fabric-wrapped privacy partitions meet at the unit’s central axis, blocking direct line of sight between adjacent seated users to reduce unplanned distractions, while maintaining an open feel at seated sightlines above partition height. Adjustable glide feet at every partition base corner ensure stable placement on uneven flooring.
Constructed for consistent commercial use, each work surface uses an 18mm thick E1 grade particleboard core, finished with a 0.7mm woodgrain melamine laminate rated for 2000 cycles of abrasion resistance, and sealed with 2mm thick PVC edge banding to protect against impact and moisture damage. Structural framing uses powder-coated aluminum alloy extrusions, secured with M6 to M10 connectors that feature a minimum of two fixing points at every major joint for long-term rigidity. Each seat includes a steel mobile pedestal built from 0.8mm thick cold-rolled steel with a matching powder coat finish, mounted on 50mm hard nylon swivel casters for easy repositioning during cleaning or workspace adjustments. The pedestal holds one lockable top drawer secured by a keyed lock for personal item storage, plus a lower hinged storage compartment for larger office materials. Integrated cable management features a 60mm ABS plastic grommet at each work surface to neatly route power and data cords, reducing desk clutter.
Each work surface supports a 100 kg static load, with 650 mm of seated knee clearance and 1100 mm of knee bay width per user for comfortable extended use. The fully disassemblable aluminum frame supports straightforward layout reconfiguration as team needs shift, with 60 available finish colors to align with diverse interior design schemes. The unit ships as one set across two cartons, with a 40-minute reference assembly time, and carries a 3-year warranty for normal commercial use.
This workstation is suited for open plan office spaces, call center and administrative offices, small business team areas, and co-working shared workspaces, as it delivers four fully equipped semi-private workstations without custom buildout, and adapts to changing occupancy needs. It also meets standard dimensional and construction requirements for government and corporate procurement projects. Procurement teams should note the 175 kg total net weight of assembled components, 0.8 m³ packaged volume per set, and 4-person maximum recommended user capacity when planning space allocation, delivery logistics, and installation staffing.

4-Person Cross-Shaped Modular Office Cubicle Workstation with Mobile Pedestals Specifications
