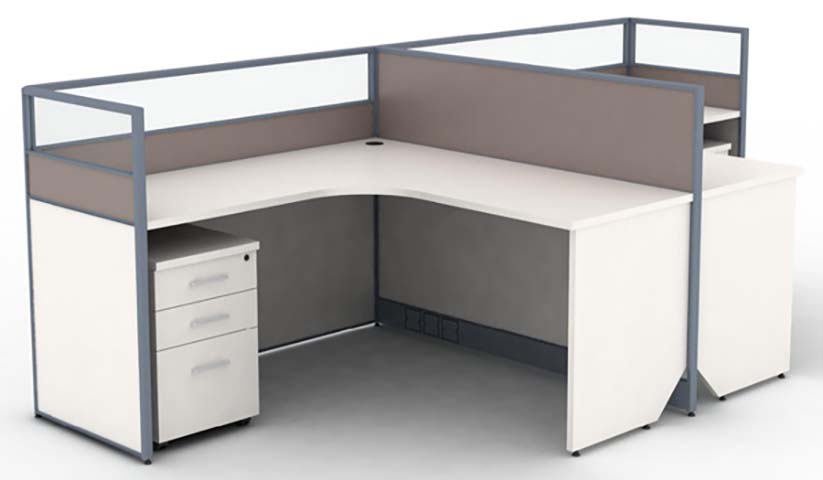

Product supplier2-Cluster L-Shaped Modular Office Cubicle Workstation with Mobile 3-Drawer Pedestal, E1 grade melamine-faced MFC with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2840 × 1440 × 1200 mm | |
|---|---|---|
| Overall 2-person cluster footprint | 2840 x 1440 x 1200 mm | |
| Single workstation work surface height | 750 mm | |
| Worktop thickness | 25 mm | |
| Privacy partition total height | 1200 mm | |
| Knee well clear height under worktop | 680 mm | |
| Knee well clear width at front curve | 800 mm | |
| Desktop cable grommet diameter | 60 mm | |
| 3-drawer mobile pedestal dimensions | 400 x 400 x 600 mm | |
| Partition panel thickness | 60 mm | |
| PVC edge banding thickness | 2 mm | |
| Frosted glass upper panel height | 400 mm | |
| Fabric lower panel height | 550 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity per worktop | 150 kg | |
|---|---|---|
| Worktop surface abrasion resistance | 2000 cycles | |
| Total net weight per 2-person cluster | 185 kg | |
| Recommended maximum seated user weight | 120 kg | |
| Mobile pedestal caster rolling load rating | 40 kg total per unit | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1 grade melamine-faced MFC with 2mm PVC edge banding | |
|---|---|---|
| Partition support frame | Powder-coated gray aluminum extrusion | |
| Lower privacy partition panels | Fabric-wrapped tackable particleboard core | |
| Upper privacy partition panels | Semi-translucent frosted tempered glass | |
| Work surface support structure | Powder-coated white steel vertical panels and cross supports | |
| Mobile pedestal construction | Powder-coated white steel body with aluminum drawer pulls | |
| Cable management components | Hard-wearing black ABS plastic raceways and grommets | |
| Adjustable glide feet | Nylon base with steel threaded stem | |
| Mobile pedestal casters | Hard nylon swivel casters (2 locking) | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Top-mounted 60mm grommet + lower rear ABS raceway routes power/data cables from floor to desktop | |
|---|---|---|
| Modular partition connection | Aluminum frame connectors allow linking additional workstations to form larger clusters | |
| Mobile pedestal storage | 3 fully extending lockable drawers, rolls fully out from under work surface for easy access | |
| Leveling adjustment | Threaded nylon glide feet adjust 15mm to compensate for uneven office flooring | |
| Privacy screen function | Fabric lower section blocks seated line of sight, frosted glass upper section preserves ambient light transmission | |
| Pedestal drawer operation | Low-noise 3/4 extension ball-bearing slides support smooth, quiet drawer operation for open office use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate office work zones | Provides individual visual privacy for staff while enabling dense cluster layouts | |
|---|---|---|
| Shared startup or co-working spaces | Modular design allows reconfiguration as team sizes and layouts change | |
| Government and institutional office areas | Meets standard commercial durability and fire requirement specifications | |
| Call center and back-office processing floors | Standardized ergonomic dimensions support long seated work shifts with dedicated storage | |
| Small business administrative work areas | All-in-one design includes work surface, privacy and storage without custom build-out |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applies to worktop load and structural stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture – Office work chair dimensions reference, aligns with knee well clearance for ergonomic use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products standard, applicable to worktop static load, stability and durability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to MFC worktop and cabinet components | |
|---|---|---|
| GB 20286-2006 | Flame retardant performance requirement for public place furniture, B1 grade recommended for fabric panels | |
| GB/T 3327-2016 | Performance test standard for office desks and workstations, applicable to structural load and durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to MFC worktop and cabinet components; 2. GB 20286-2006: Flame retardant performance requirement for public place furniture, B1 grade recommended for fabric panels; 3. GB/T 3327-2016: Performance test standard for office desks and workstations, applicable to structural load and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
