PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1700 × 1700 × 1200 mm
Desktop working height	750 mm
Desktop panel thickness	25 mm
Work surface depth (main working area)	600 mm
Knee clearance opening width (corner)	800 mm
Under-desk knee clearance height	680 mm
Integrated storage pedestal dimensions	450 x 600 x 700 mm
Cable grommet diameter	60 mm
Privacy partition panel thickness	30 mm
Lower fabric partition panel height	900 mm
Upper glazed partition panel height	300 mm
Modesty panel height (under desk)	450 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load capacity	50 kg
Product net weight (reference)	120 kg
Recommended user capacity	1 person
Melamine surface abrasion resistance	2000 cycles
Lockable storage static load per shelf/drawer	25 kg
Partition frame static load rating	15 kg
Recommended warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25mm E0-grade melamine-faced particleboard
Storage cabinet carcass	16mm melamine-faced engineered wood
Partition frame	1.2mm thick powder-coated aluminum alloy
Lower privacy panels	Blue woven fabric tackboard over composite core
Upper partition panels	Clear transparent tempered glass panel
Under-desk modesty panels	16mm matte grey melamine-faced engineered wood
Drawer/door hardware	Zinc-alloy pull handles, cam-lock, steel drawer slides
Cable grommet	ABS plastic round wire port
Leveling feet	Nylon base adjustable glides
Edge banding	2mm thick PVC edge trim
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Corner cable grommet routing	60mm port feeds monitor/peripheral wires through worktop to under-desk space
Locking drawer storage	Upper shallow drawer secured with key lock for personal office supplies
Lower cabinet storage	Hinged door compartment with adjustable shelf for CPU/bulk items
Two-sided privacy partition	Fabric lower block provides seated visual privacy, glazed upper preserves natural light
Adjustable leveling feet	Base glides rotate to compensate for uneven office floors
Tackable fabric partition surface	Fabric panels accept push pins for posting notices and work documents
Modular connection capability	Frame profiles connect to adjacent cubicles for multi-seat layout expansion
Full under-desk knee clearance	Curved corner cutout allows free chair movement and seated leg room
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff workstations	Provides individual privacy in shared office environments
Call center and administrative departments	Configurable for high-density seating with cable management
Small business corner office spaces	Fits tight corner areas with integrated storage to save floor space
Government and financial institution cubicle areas	Locking storage supports secure document storage for regulated roles
Modular office expansion projects	Connects to matching workstations to scale seating as headcount grows
Temporary project team work areas	Knock-down design allows reconfiguration between project phases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for commercial work surfaces
EN 527-2:2016	Office worktables dimensional, ergonomic and mechanical performance requirements
EN 1335-2:2009	Office furniture seating safety reference for under-desk clearance compatibility
EN 1022:2018	Domestic and commercial furniture stability testing applicable to freestanding workstations

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desk carcass and worktop
GB/T 3327-2016	Office desks and tables dimensional and performance requirements for work surfaces
GB 18580-2017	Formaldehyde emission limits for engineered wood panels, applicable to all board components
GB/T 35607-2017	Office furniture partition system performance requirements for cubicle screens

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desk carcass and worktop;
2. GB/T 3327-2016: Office desks and tables dimensional and performance requirements for work surfaces;
3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable to all board components;
4. GB/T 35607-2017: Office furniture partition system performance requirements for cubicle screens;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CUB-WS-1700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CUB-WS-1700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CUB-WS-1700Open Export Tool

Quick Actions

Post an RFQ

Product Description

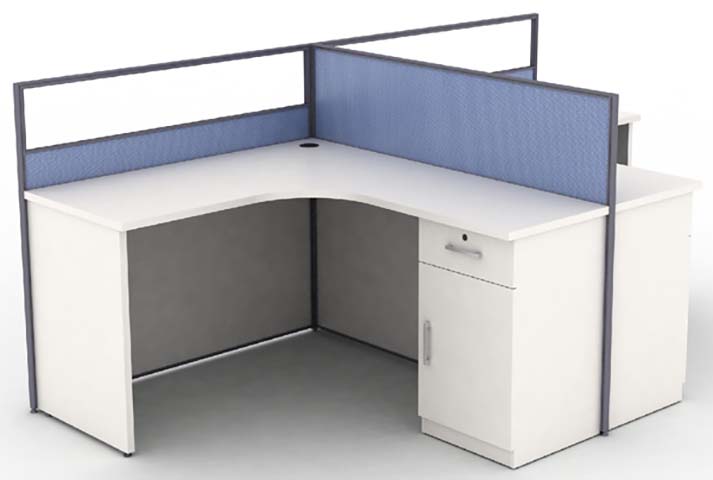

The Single-Seat L-Shaped Curved Corner Cubicle Office Workstation with Integrated Locking Storage, model L-CUB-WS-1700, is an unbranded modular office solution designed for flexible, privacy-focused individual workspaces. Its signature L-shaped curved corner layout creates a defined personal work zone with a smooth, continuous work surface that fits neatly into corner positions. The two-sided partition system pairs a lower blue woven fabric tackboard with an upper clear tempered glass panel, balancing seated visual privacy for focused work with unobstructed natural light flow across shared office areas, while the matte grey under-desk modesty panel adds discreet coverage for the lower work zone. The worktop sits at a 750 mm working height, with a 25 mm thick E0-grade melamine-faced particleboard surface engineered for regular use, supporting a 50 kg distributed static load and resisting abrasion across 2000 cycles of contact. The 1.2 mm thick powder-coated aluminum partition frame holds the privacy panels securely, rated for a 15 kg static load, while all structural connections use durable steel hardware. The integrated 450 x 600 x 700 mm storage pedestal mounts beneath the work surface, featuring a key-locking upper shallow drawer for small personal office supplies, rated to hold 25 kg per storage component, and a lower hinged-door compartment with an adjustable shelf sized to accommodate CPUs or bulk work materials. Functional design details include a 60 mm corner cable grommet that routes monitor and peripheral wires cleanly from the work surface to under-desk space, nylon base adjustable leveling feet that compensate for uneven floors, and the tackable fabric panel surface that accepts push pins for posting notices and work documents. The workstation supports a single user, with 680 mm of under-desk knee clearance and an 800 mm wide corner knee opening for comfortable seating. This model is well-suited for open-plan office staff workstations, call center and administrative department layouts, small business corner offices, government and financial institution cubicle areas, modular office expansion projects, and temporary project team work areas. Its modular frame profiles connect directly to adjacent matching cubicles to build multi-seat layouts as headcount grows, while the knock-down design supports easy reconfiguration between project phases, and integrated locking storage meets secure document storage needs for regulated roles. Procurement teams should note that each unit ships as one set split across two cartons, with a 40-minute per-set reference assembly time, 120 kg product net weight, 180 kg packaged gross weight, and 1 m³ total packaging volume. The unit comes with a 3-year recommended warranty, and all hardware including zinc-alloy pull handles, steel drawer slides, ABS plastic cable grommets, and cam-lock mechanisms is included for full assembly.
