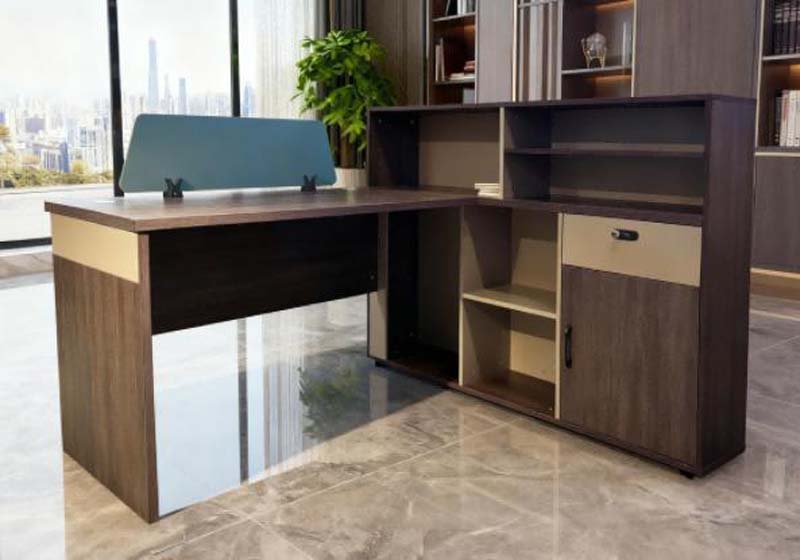

Product supplierL-shaped Staff Office Workstation with Attached Storage Hutch and Blue Privacy Divider, E0 grade melamine-faced particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1700 × 1600 × 1200 mm | |
|---|---|---|
| Standard work surface height | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Privacy screen height above desktop | 350 mm | |
| Seated knee clearance height under desk | 600 mm | |
| Knee clearance width at central opening | 700 mm | |
| Work surface depth (main desk) | 700 mm | |
| Storage hutch total height from floor | 1200 mm | |
| Upper open shelf height per tier | 300 mm | |
| Lower open shelf compartment width | 400 mm | |
| Cabinet door width | 450 mm | |
| PVC edge banding thickness | 2 mm | |
| Privacy screen mounting bracket height | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Overall unit net weight | 85 kg | |
| Formaldehyde emission level (panel) | 0.5 mg/L | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 1 person | |
| Product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main desk and cabinet panels | E0 grade melamine-faced particleboard | |
|---|---|---|
| Accent panels (modesty, drawer front) | Melamine-faced MDF with light beige finish | |
| Edge protection | 2 mm thick PVC edge banding | |
| Privacy screen panel | Fabric-covered MDF panel with matte blue finish | |
| Screen mounting brackets | Injection-molded black ABS plastic brackets | |
| Privacy screen internal frame | 1.2 mm thick powder-coated aluminum alloy | |
| Drawer lock hardware | Zinc alloy keyed cam lock | |
| Cabinet door handle | Black matte aluminum pull handle | |
| Modesty panel lower section | High-gloss light beige melamine panel | |
| Adjustable cabinet levelers | Nylon base adjustable leveling feet | |
| Structural connecting hardware | Zinc-plated steel cam lock connectors and screws | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management access | Two 60mm diameter desk grommets | |
|---|---|---|
| Lockable drawer storage | Keyed lock secures upper drawer for personal valuables | |
| Mixed storage configuration | 4 open shelves + 1 drawer + 1 closed cabinet | |
| Desktop privacy divider | Mounted along back edge of main work surface | |
| Modular clustering compatibility | Pre-drilled connection points on side panels | |
| Leveling adjustment | 15 mm vertical adjustment range on cabinet feet | |
| Knee well access | Central open under-desk space 700 mm wide | |
| Lower open compartment storage | Floor-level open bay adjacent to cabinet | |
| Knockdown assembly design | Flat-pack panel construction with cam fittings | |
| Locking drawer internal height | 150 mm | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Provides privacy and integrated storage for individual employee seats | |
|---|---|---|
| Small private office spaces | Fits corner positions to maximize floor space in compact rooms | |
| Startup and co-working spaces | Modular design allows flexible layout changes for growing teams | |
| Administrative and clerical work positions | Provides sufficient work and storage space for daily document processing | |
| Home office dedicated work areas | Commercial-grade durability with concealed storage for home work setups | |
| Branch office standard workstations | Uniform dimensions support standardized bulk procurement for multi-site offices |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: safety and strength requirements | |
|---|---|---|
| EN 527-2:2018 | Office worktables: mechanical safety test methods | |
| EN 13986:2004+A1:2015 | Performance specification for wood-based panels |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: safety and performance standard |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture for office use | |
|---|---|---|
| GB/T 3327-2016 | Performance test methods for office desks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 4897.3-2015 | Requirements for particleboard used in furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture for office use; 2. GB/T 3327-2016: Performance test methods for office desks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 4. GB/T 4897.3-2015: Requirements for particleboard used in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
