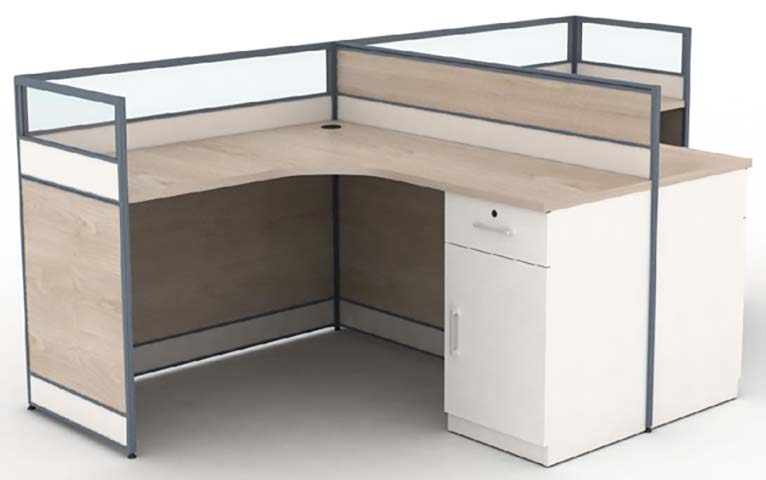

Product supplier2-Person L-Shaped Corner Office Cubicle Workstation with Frosted Glass Dividers and Integrated Storage, 18mm MFC particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3020 × 1530 × 1200 mm | |
|---|---|---|
| Overall unit footprint | 3020 x 1530 x 1200 mm | |
| Work surface height from floor | 750 mm | |
| Work surface thickness | 25 mm | |
| Partition frame profile width | 40 mm | |
| Frosted glass upper panel height | 600 mm | |
| Solid lower partition panel height | 600 mm | |
| Knee well clearance height under work surface | 680 mm | |
| Integrated storage pedestal dimensions | 450 x 600 x 680 mm | |
| Cable grommet diameter | 60 mm | |
| Per-seat main work surface length | 1600 mm | |
| Work surface side return depth | 700 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per work surface static load capacity | 91 kg | |
|---|---|---|
| Net weight per complete 2-person unit | 153 kg | |
| Leveling foot adjustment range | 15 mm | |
| Surface scratch resistance rating | 2000 cycles | |
| Recommended maximum user weight per seat | 110 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | 18mm MFC particleboard core | |
|---|---|---|
| Work surface finish | 0.6mm melamine laminate, light oak wood grain | |
| Edge banding | 2mm PVC edging on all work surface cut edges | |
| Partition support frames | 1.2mm wall thickness aluminum alloy, grey powder coated | |
| Upper privacy panels | 5mm frosted semi-transparent tempered glass | |
| Lower partition panels | 0.6mm cold-rolled steel, beige and light oak laminate finish | |
| Storage pedestal carcass | 18mm white melamine faced MFC | |
| Drawer and door hardware | Zinc alloy pull handles, cam lock on top drawer, concealed hinges | |
| Partition base leveling feet | Nylon base with steel threaded stem | |
| Cable grommet | ABS plastic, black finish | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management grommet | Single circular 60mm grommet at work surface corner | |
|---|---|---|
| Partition internal raceway | Built-in wire channel in lower partition base | |
| Lockable storage drawer | 1 top lockable drawer with central key lock | |
| Hinged cabinet storage | 1 lower full-height cabinet door with concealed hinge | |
| Leveling adjustment | Threaded feet on all partition base corners | |
| Modular cluster configuration | Pre-configured back-to-back 2-seat L-corner layout | |
| Privacy screening | 1200mm total partition height with frosted upper panel | |
| Fixed storage mounting | Pedestal permanently mounted under right-side work surface | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Ideal for 2-person team clusters in general administrative and clerical workspaces | |
|---|---|---|
| Startup and co-working spaces | Cost-effective modular setup for flexible, quickly deployed office layouts | |
| Corporate staff work zones | Provides balanced privacy and collaboration for permanent employee workstations | |
| Small business office layouts | Compact L-shape maximizes corner space efficiency in limited office floor plans | |
| Call center and back office environments | Partition design reduces distraction while maintaining supervisor visibility | |
| Temporary office fit-outs | Modular construction supports fast reconfiguration for short-term space leases |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to workstation work surfaces | |
|---|---|---|
| EN 1023-2:2000 | Office furniture storage units strength and durability requirements, applicable to pedestal storage | |
| EN 1335-1:2020 | Office chair dimensional coordination, referenced for knee well clearance design | |
| EN 12521:2015 | Furniture durability requirements for seating adjacent to work surfaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance standard, applicable to desktop load and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to lockable pedestal drawers and cabinets | |
| ANSI/BIFMA G1-2013 | Ergonomic guidelines for office furniture, referenced for work surface height and clearance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate work surfaces and storage units | |
|---|---|---|
| GB/T 3325-2017 | Test methods for metal furniture, applicable to steel and aluminum partition frames | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for MFC/MDF components | |
| GB/T 10357.1-2013 | Furniture mechanical test for table strength, applicable to desktop static load testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate work surfaces and storage units; 2. GB/T 3325-2017: Test methods for metal furniture, applicable to steel and aluminum partition frames; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for MFC/MDF components; 4. GB/T 10357.1-2013: Furniture mechanical test for table strength, applicable to desktop static load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
