PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2890 × 2890 × 1100 mm
overall footprint	2890 x 2890 x 1100 mm
per-seat work surface size	1200 x 600 x 750 mm
privacy partition height	1200 mm
work surface thickness	25 mm
privacy partition thickness	60 mm
under-desk knee clearance height	700 mm
under-desk knee clearance width per seat	550 mm
storage pedestal height	650 mm
support leg height	100 mm
cable grommet diameter	60 mm
drawer internal height	120 mm
slatted ventilation panel height	150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

per-seat desktop static load capacity	91 kg
total workstation unit weight	210 kg
desktop surface abrasion resistance	2000 cycles
recommended user count	4 people
product warranty period	3 years
available color options count	60
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

work surface	E1 grade melamine-faced particleboard, 25mm thick, PVC edge banding
privacy partition panel	Fabric-wrapped fiberboard with aluminum edge trim, slatted vent section
storage pedestal carcase	18mm melamine-faced particleboard with PVC edge banding
drawer front	16mm taupe melamine panel with integrated key lock
support legs	Powder-coated steel tapered cylindrical legs, matte black finish
hardware connectors	Zinc-plated steel cam lock fasteners with 5% spare parts
cable grommets	ABS plastic round cable management grommets, matching desktop finish
partition edge frame	1.2mm thick extruded aluminum profile with matte silver finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seated work configuration	4 opposing individual work positions separated by cross-mounted privacy partitions
cable management	Round desk grommets at each seat for routing power and data cables below work surface
integrated storage	Fixed under-desk pedestal per seat with 1 lockable drawer and 1 closed storage cabinet
privacy separation	1200mm tall partitions block direct line of sight between adjacent seated users
ventilation design	Slatted vent panel section at partition intersections for air flow between cubicles
knockdown assembly	Flat-packed design for on-site assembly with provided hardware and manual
modular expandability	Compatible with standard cubicle accessories including CPU holders and paper trays
surface maintenance	Stain-resistant, waterproof melamine surface for easy commercial office cleaning
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office space	Four-seat cluster for team-based work areas with visual privacy between users
staff work zones	Suited for administrative, customer service or operational staff daily seated work
small business office	Compact footprint fits in 3x3m floor space to accommodate four staff workstations
call center environments	Partition height provides acoustic and visual separation for focused call handling
modular office expansion	Compatible with additional workstation clusters to scale seating as team size grows
co-working shared spaces	Dedicated individual work positions in shared open co-working office environments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength performance requirements for commercial use
EN 1335-1:2020	Office furniture ergonomic clearance and dimension reference for seated use
EN 12521:2015	Furniture strength, durability and safety for commercial seating-area work surfaces
EN 13986:2004+A1:2015	Wood-based panel formaldehyde emission performance for indoor furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for load, stability and durability testing
ANSI/BIFMA G1-2013	Ergonomic guideline for work surface height and seated clearance dimensions

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to table and cabinet components
GB/T 3327-2023	Performance test standard for office desks and workstations for stability and load
GB 18580-2017	Formaldehyde emission limit for wood-based panels, E1 grade emission requirement
GB/T 4897.3-2017	Specification for particleboard used in furniture structural applications

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to table and cabinet components;
2. GB/T 3327-2023: Performance test standard for office desks and workstations for stability and load;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade emission requirement;
4. GB/T 4897.3-2017: Specification for particleboard used in furniture structural applications;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-4S12-CR-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-4S12-CR-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-4S12-CR-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

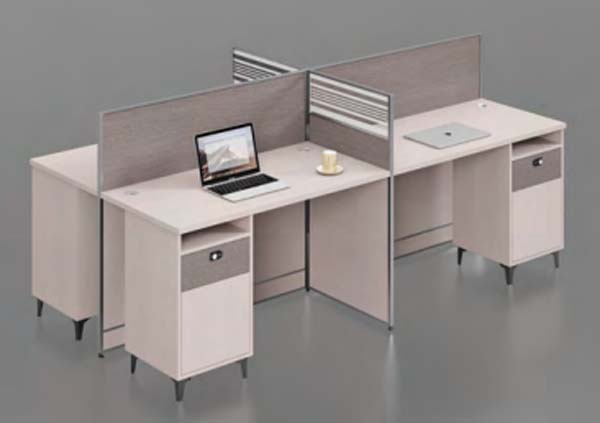

The Cross-Shaped 4-Person Partition Office Workstation (model CW-4S12-CR-PED, unbranded) presents a modern, minimalist cross-aligned layout that organizes four opposing individual work positions, separated by centrally mounted privacy partitions to form a compact, cohesive four-seat cluster. Its clean, streamlined silhouette is supported by tapered matte black powder-coated cylindrical steel legs, with a matte silver extruded aluminum trim framing partition edges for a polished, professional aesthetic that complements contemporary workspace design. Each seat features a dedicated work surface sized to support standard seated office tasks, with consistent under-desk knee clearance to support comfortable long-duration use.
Construction centers on durable, workspace-appropriate materials: 25mm thick E1 grade melamine-faced particleboard work surfaces finished with PVC edge banding, with load-bearing top sections using a 40mm composite build-up for added stability. Privacy partitions are constructed from fabric-wrapped fiberboard with a 60mm thickness, trimmed with aluminum and incorporating slatted vent sections at central intersections to support air flow between adjacent workstations. Each position includes a fixed under-desk storage pedestal built from 18mm melamine-faced particleboard, fitted with a 16mm taupe melamine drawer front with integrated key lock, paired with a closed lower storage cabinet. All structural connections use zinc-plated steel cam lock fasteners, with spare hardware included for assembly, while round ABS plastic cable grommets matched to the desktop finish sit at each seat to route power and data cables below the work surface.
Functional design prioritizes both focus and collaboration: the 1200mm tall partitions block direct line of sight between seated adjacent users, supporting visual and acoustic separation for focused tasks, while the cross layout keeps team members positioned for quick, easy communication as needed. The unit supports a per-seat desktop static load of 91kg, with a 150kg uniformly distributed top static load reference, and work surfaces offer abrasion resistance suited for daily office use. The flat-packed knockdown design allows on-site assembly, and the workstation is compatible with standard cubicle accessories including CPU holders and paper trays for customizable personalization.
This workstation is well suited for a range of commercial spaces: open plan team work zones, administrative, customer service and operational staff areas, small business offices where its compact footprint fits efficiently in allocated floor space, call center environments requiring separation for focused call handling, expanding modular office layouts that can scale with additional clusters, and co-working spaces that require dedicated individual work positions within shared open areas.
Procurement considerations include noting the unit ships in multiple cartons, with a reference assembly time per set to plan for installation scheduling. The product is covered by a 3-year warranty, and is available in 60 color options to align with existing interior design schemes. Buyers should confirm floor load capacity and allocated floor space prior to purchase, and can plan for expanded seating over time by adding matching connected clusters as team size grows.
