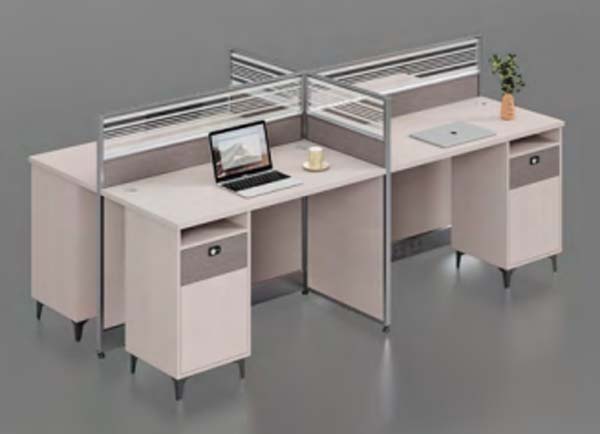

Name: 4-Person Cross-Shaped Office Cubicle Workstation with Fixed Storage Pedestals
Brand: Fanshidun
SKU: 9W4W2J

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2800 × 1200 mm
Overall footprint (W×D×H)	2800 x 2800 x 1200 mm
Desk work surface height	760 mm
Per-seat work surface dimensions	1400 x 650 mm
Desk panel thickness	25 mm
Storage pedestal dimensions (per seat)	400 x 600 x 650 mm
Drawer internal height	150 mm
Lower cabinet compartment height	450 mm
Seated knee clearance height	650 mm
Seated knee clearance depth	500 mm
Lower solid modesty panel height	400 mm
Upper mesh privacy screen height	800 mm
Support leg height	110 mm
Partition panel thickness	25 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	260 kg
Per-work-surface static load capacity	100 kg
Total storage capacity per seat	60 L
Recommended number of users	4 people
Surface abrasion resistance	2000 cycles
Surface stain/water resistance rating	Level 3
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface substrate	E1-grade particleboard, 25mm thick
Work surface finish	Anti-scratch melamine laminate, light off-white color
Edge banding	2mm thick PVC edge banding
Partition frame	1.8mm wall thickness 6063 aluminum alloy, powder-coated silver
Upper privacy screen	Perforated/mesh steel panel, light grey finish
Lower modesty panel	16mm thick melamine-faced particleboard, warm grey finish
Storage cabinet panels	16mm thick melamine-faced particleboard, two-tone beige/grey
Support legs	1.5mm thick powder-coated steel, tapered dark grey finish
Hardware components	Zinc-alloy lock cylinders, 3-section steel drawer slides, stainless steel pulls
Drawer hinges	Soft-close buffer steel hinges
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Recessed desk grommets with separated strong/weak current routing channels
Storage lock function	Keyed lock per pedestal secures top drawer for personal item security
Partition privacy function	Two-tier screen blocks direct line of sight between adjacent seated users
Modular reconfiguration	Bolt-connected frame allows disassembly and layout rearrangement
Adjustable foot function	Leveling feet on each leg compensate for uneven floor surfaces
Drawer operation	Full-extension 3-section slides allow full access to drawer interior
Lower cabinet access	Hinged door opens to provide enclosed storage for personal items or CPUs
Freestanding installation	No wall anchoring required for stable assembly on level commercial flooring
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan general office space	Suitable for 4 staff in open office layouts to balance privacy and collaboration
Small business team workspace	Ideal for startup or department team clusters with equal dedicated desk space per user
Call center or admin work area	Suitable for task-focused work requiring moderate visual privacy and personal storage
Corporate staff work zone	Configurable for large office floors with standardized multi-seat work bays
Recommended matching furniture	Pair with mid-back ergonomic task chairs and under-desk mobile CPU holders
Floor surface compatibility	Suitable for installation on carpet, vinyl, or polished concrete commercial flooring
Ceiling height requirement	Minimum 2400mm finished ceiling height for comfortable installation and use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety requirements	EN 527:2011
Office furniture surface durability	EN 12720:2009+A1:2013

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk performance testing	ANSI/BIFMA X2021

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk dimensional tolerance	GB/T 3324
Panel formaldehyde emission	GB 18580
Metal coating adhesion	GB/T 1993

Standardized tender description text

This product must meet the following technical requirements:
1. Desk dimensional tolerance: GB/T 3324;
2. Panel formaldehyde emission: GB 18580;
3. Metal coating adhesion: GB/T 1993;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-CR4-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-CR4-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-CR4-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun model OFW-CR2800is a 4-person cross-shaped office cubicle workstation designed to balance individual privacy and seamless team collaboration in shared work environments. Its symmetrical cross layout divides the structure into four equal dedicated work zones, with two-tier partitions positioned between adjacent seats to block direct line of sight for seated users. The unit features a coordinated two-tone finish: light off-white work surfaces, paired with light grey upper mesh privacy screens, warm grey lower modesty panels, two-tone beige and grey storage pedestals, silver powder-coated aluminum partition frames, and tapered dark grey steel support legs for a polished, professional aesthetic. Each seat is paired with a fixed integrated storage pedestal positioned within easy reach of the user.
Constructed for durable daily commercial use, the workstation’s 25mm thick work surfaces use an E1-grade particleboard core topped with anti-scratch melamine laminate, finished with 2mm thick PVC edge banding to protect against daily wear. Partition frames are built from 6063 aluminum alloy, with perforated mesh steel upper screens and melamine-faced particleboard lower modesty panels. Support legs are formed from powder-coated steel, fitted with adjustable leveling feet to compensate for uneven floor surfaces. Each storage pedestal uses 16mm thick melamine-faced particleboard, fitted with zinc-alloy lock cylinders, full-extension 3-section steel drawer slides, and stainless steel pulls.
Practical functions are integrated directly into the design to support smooth daily workflow. Recessed desk grommets include separated channels for strong and weak current cables to reduce desktop clutter. Each pedestal features a keyed lock to secure the top drawer for personal items, alongside a lower hinged cabinet compartment suitable for personal belongings or CPU storage, with full-extension drawer slides allowing complete access to stored contents. The bolt-connected frame supports disassembly and layout rearrangement to adapt to changing space needs.
This workstation is well suited for open-plan general office spaces, small business and startup team clusters, call center or administrative task areas, and standardized corporate staff work zones, and may be installed on carpet, vinyl, or polished concrete commercial flooring. It is designed to pair with mid-back ergonomic task chairs and under-desk mobile CPU holders for a complete work setup. For procurement planning, note that each unit ships in two cartons, requires on-site assembly, and provides equal dedicated work surface area for all four assigned users, supporting consistent space allocation across team deployments.
