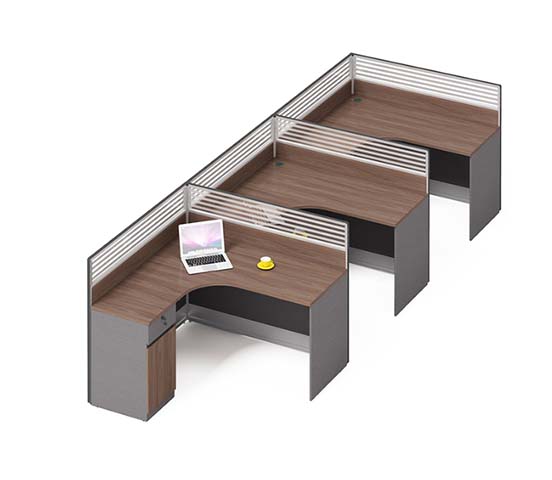

Product supplierThree-Person In-Line L-Shaped Cubicle Workstation with Privacy Screens, 25 mm wood-grain high-pressure laminate panel with sealed impact-resistant edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 3 users | |
|---|---|---|
| Distributed desktop load | 80 kg per workstation | |
| Single-point desktop load | 30 kg | |
| Pedestal and panel support load | 50 kg per end support | |
| Suggested occupant weight allowance | 120 kg per seated position | |
| Drawer slide cycle target | 40000 cycles | |
| Net weight | 180 kg | |
| Floor loading | 31 kg per square meter | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain high-pressure laminate panel with sealed impact-resistant edges | |
|---|---|---|
| Support and modesty panels | 18 mm grey laminate-coated panel with black lower inset panels | |
| Privacy screen core | 16 mm composite furniture panel with grey frame trim | |
| Upper louver screen | Horizontal silver-toned slats in a framed divider with vertical support posts | |
| Structural frame | Rectangular steel support rails and connector posts with powder-coated grey finish | |
| Edge and joining hardware | PVC edge banding, steel cam connectors, brackets, and adjustable floor glides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation configuration | Three in-line corner workstations allow independent seating while sharing connected divider panels | |
|---|---|---|
| Privacy division | Solid lower panels block desk-level sightlines and slatted upper panels reduce visibility without fully sealing the space | |
| Cable management | 60 mm rear-corner grommet routes monitor and power cables below each desktop | |
| Knee-space design | Curved front modesty cutout creates a centered seated opening with side support panels |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for three-person clerical, administration, or customer-service clusters where privacy and shared footprint efficiency are required | |
|---|---|---|
| Call center or shared administration area | Recommended for repeatable rows in high-density offices because each seat has an independent L-shaped surface, cable grommet, and knee opening |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety | EN 527:2011 safety requirements for office desks and work tables | |
|---|---|---|
| Office furniture stability | EN 527:2011 mechanical safety and test methods | |
| Office storage safety | EN 14073:2004 safety requirements for office storage furniture | |
| Formaldehyde panel classification | EN 13986 wood-based panel formaldehyde classification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk strength and fatigue | ANSI/BIFMA X5.5 desk and table products standard | |
|---|---|---|
| Storage performance | ANSI/BIFMA X5.9 storage units standard | |
| Seated-use stability | ANSI/BIFMA X5.5 tip-over and stability test protocol |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Structural safety acceptance | GB/T 3324 general technical requirements for wooden furniture | |
|---|---|---|
| Physical and dimensional inspection | GB/T 3326furniture dimensional inspection basis | |
| Formaldehyde control | GB 18580formaldehyde emission limit for wood-based panels | |
| Surface durability test | GB/T 4893.4adhesion test for film-coated furniture surfaces |
Standardized tender description text
This product must meet the following technical requirements: 1. Structural safety acceptance: GB/T 3324 general technical requirements for wooden furniture; 2. Physical and dimensional inspection: GB/T 3326furniture dimensional inspection basis; 3. Formaldehyde control: GB 18580formaldehyde emission limit for wood-based panels; 4. Surface durability test: GB/T 4893.4adhesion test for film-coated furniture surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
