PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1500 × 1100 mm
Overall unit dimensions	1800 x 1500 x 1100 mm
Work surface height	762 mm
Individual work surface dimensions per user	1200 x 600 mm
Work surface thickness	38 mm
Privacy divider height above desktop	350 mm
Knee clearance height under desktop	650 mm
Knee clearance width per user	700 mm
Storage pedestal dimensions	400 x 600 x 650 mm
Drawer internal dimensions	350 x 500 x 100 mm
Cable grommet diameter	60 mm
Frame steel tube wall thickness	1.5 mm
Edge banding thickness	2 mm
Leveling foot adjustment range	15 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit net weight	154 kg
Static load capacity per work surface	135 kg
Work surface abrasion resistance	2000 cycles
Recommended number of users	2
Structural warranty period	10 years
Surface finish durability	Stain and water resistant
Leveling foot maximum load per foot	80 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	18mm thick melamine-faced chipboard (MFC)
Work surface edge	2mm thick impact-resistant PVC edge banding
Support frame	1.5mm thick powder-coated white steel tubing
Outer support legs	20mm square matte black powder-coated steel
Privacy divider panel	18mm thick light wood grain MFC with white steel frame
Modesty panels	18mm thick white matte MFC
Storage cabinet fronts	Two-tone white and light wood grain MFC
Drawer slides	Cold-rolled steel ball-bearing slides
Leveling feet	Reinforced nylon with steel threaded inserts
Cabinet door hinges	Cold-rolled steel concealed hinges
Locks	Keyed cam locks for drawer and door per pedestal
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Two 60mm desktop grommets per work surface + modesty panel outlet cutouts
Pedestal storage	Each outer pedestal includes 1 lockable upper drawer and 1 lower lockable cabinet door
Leveling adjustment	Threaded leveling feet at all frame base points
Privacy separation	Half-height central divider blocks cross-user line of sight at desk level
Modesty coverage	Full-depth modesty panels extend from desktop to 100mm above floor
Lock operation	Each pedestal lock operates with 2 included keys, secures both drawer and door
Assembly configuration	Modular knock-down design allows reconfiguration to add more workstations
Drawer operation	Ball-bearing slides allow full 400mm drawer extension with smooth glide
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office space	Suitable for staff zones requiring two dedicated work positions with partial privacy
Startup and co-working spaces	Neutral light wood and white finish fits flexible, modern work environments
Administrative work areas	Integrated storage eliminates need for separate filing cabinets, keeps work zones uncluttered
Call center and shared team zones	Central divider reduces cross-talk distraction between adjacent workers
Small business office layouts	Compact T-shape fits corner or wall-adjacent placements in smaller offices
Educational staff rooms	Durable commercial construction supports daily use by teaching and administrative staff

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop load and stability
EN 527-2:2002+A1:2019	Office worktables dimensional and mechanical safety requirements, applicable to work surface height and clearance
EN 1335-1:2020	Office furniture dimensional coordination reference for seated worker clearance dimensions

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to desktop load, durability and structural stability
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to drawer and cabinet load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel desktops and cabinet components
GB/T 3327-2017	Performance requirements for office desks and workstations, applicable to structural load and stability
GB 18584-2001	Limit of formaldehyde emission for wood-based furniture, applicable to MFC panel materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel desktops and cabinet components;
2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to structural load and stability;
3. GB 18584-2001: Limit of formaldehyde emission for wood-based furniture, applicable to MFC panel materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-T2-1800-LW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-T2-1800-LW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-T2-1800-LWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

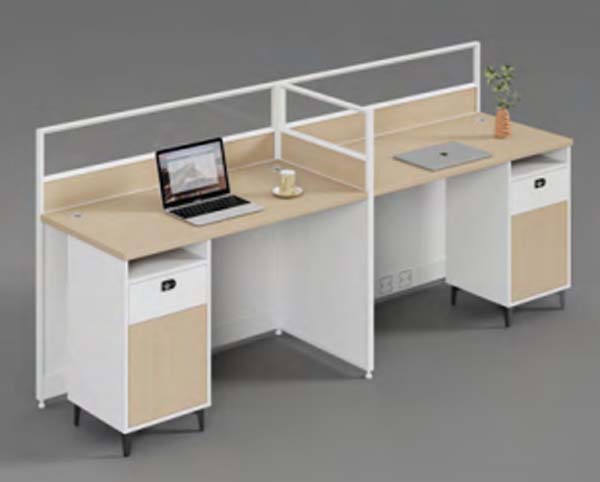

This 2-Person Back-to-Back T-Shape Office Workstation Desk delivers a space-efficient, modern work solution for shared professional environments, featuring a balanced T-shaped layout that positions two dedicated work surfaces back-to-back for optimal space use. A half-height central privacy divider sits between the two stations, finished in light wood grain melamine-faced chipboard with a white steel frame, blocking direct cross-user line of sight at desk level to reduce distraction while maintaining an open, connected office feel. Two-tone white and light wood grain storage pedestals anchor the outer edges of the unit, paired with full-depth white matte modesty panels that extend close to the floor for user privacy, creating a clean, cohesive visual profile suited to contemporary interior schemes. The workstation is built for long-term commercial use, with a robust support structure combining 1.5mm thick powder-coated white steel tubing framing and 20mm square matte black powder-coated steel outer legs. Work surfaces use 18mm thick melamine-faced chipboard with a total thickness of 38mm, edged with 2mm thick impact-resistant PVC banding to resist daily wear, and the surface finish offers stain and water resistance for easy maintenance. All base points include reinforced nylon leveling feet with steel threaded inserts for stable placement on uneven floors. Each integrated storage pedestal features one lockable upper drawer running on cold-rolled steel ball-bearing slides, and one lower lockable cabinet door, with a single lock per pedestal securing both compartments; two keys are included for each lock. Integrated cable management includes two 60mm desktop grommets per work surface, plus outlet cutouts in modesty panels to keep cords organized and out of sight. The modular knock-down design allows users to reconfigure the setup to connect additional workstations as team needs change. This workstation is well suited for open plan office staff zones, startup and co-working spaces, administrative work areas, call center team zones, small business offices that utilize corner or wall-adjacent placements, and educational staff rooms. Its integrated storage removes the need for separate filing cabinets to keep work zones uncluttered, and the central divider helps reduce cross-talk distraction between adjacent workers. For procurement, note that the unit ships knock-down with an assembly time of 40 minutes per set, and comes with a 10-year structural warranty. The unbranded model supports flexible expansion for growing teams, and its neutral finish palette coordinates easily with a wide range of existing office furniture styles.

2-Person Back-to-Back T-Shape Office Workstation Desk with Divider and Integrated Storage Specifications
