PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2800 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-workstation static load capacity	100 kg
Total cluster net weight	320 kg
Recommended user weight per task chair	120 kg
Drawer static load per drawer	25 kg
Seat foam density	45 kg/m³
Chair caster rolling durability	40000 cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm thick melamine-laminated particleboard, scratch-resistant matte finish
Partition frame	1.2mm thick powder-coated steel square tubing
Lower partition panel	Fabric-upholstered 18mm MDF core, sound-dampening
Upper partition panel	5mm thick frosted tempered glass with perforated dot pattern
Storage pedestal	18mm thick melamine laminate board, 3 soft-close drawers
Chair frame and base	Glass-filled nylon frame, 320mm diameter 5-star nylon base
Chair seat and back	Breathable mesh back, fabric-upholstered 50mm thick foam seat
Chair casters	50mm diameter nylon twin-wheel casters
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workspace division	Cross-shaped partitions create 4 fully independent individual work zones
Cable management	60mm desk grommets route power and data cables from floor to work surface
Storage access	3-drawer mobile pedestal under each desk provides personal storage for documents and supplies
Chair adjustment	Task chairs support 100mm seat height adjustment via class 3 gas lift
Chair mobility	Dual-wheel casters allow 360-degree rotation and smooth movement on hard flooring
Modular assembly	Pre-fabricated partition panels allow reconfiguration of cluster layout for changing office needs
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office areas	Creates structured individual work zones without full-height wall construction
Call center and administrative offices	Provides defined personal space for 4 staff with low partitions for supervisor visibility
Startup and co-working spaces	Modular design supports reconfiguration as team sizes change
Small business work areas	Integrates desk, storage and partition in a compact footprint for limited office space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture stability	EN 527:2002
Office chair safety	EN 1335:2009

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk performance	ANSI/BIFMA X2021
Office chair performance	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk structural safety	GB/T 3326
Office chair safety	GB/T 10357.3
Furniture formaldehyde emission	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Desk structural safety: GB/T 3326;
2. Office chair safety: GB/T 10357.3;
3. Furniture formaldehyde emission: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CUB-4P-CRV-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CUB-4P-CRV-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CUB-4P-CRV-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

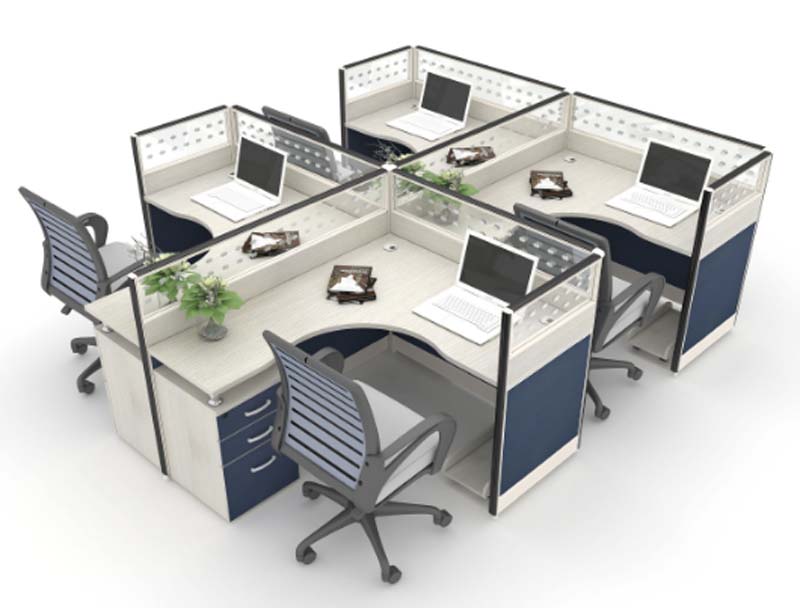

The 4-Person Cross-Shaped Office Cubicle Workstation Set with Drawer Pedestals delivers a balanced cluster layout centered on a cross-shaped partition structure that forms four fully independent individual work zones. Curved work surface edges soften the overall visual profile, while the partition design pairs lower fabric-upholstered panels with upper frosted tempered glass panels featuring a perforated dot pattern, creating a semi-open feel that balances privacy and connectedness across the cluster.
Constructed for durable daily office use, the workstation uses scratch-resistant matte melamine-laminated particleboard for worktops, supported by powder-coated steel square tubing partition frames. Lower partition panels are built with an MDF core for sound-dampening, while upper glass panels maintain sightlines across the space. Each workstation is paired with a matching task chair: glass-filled nylon frames support a breathable mesh back and fabric-upholstered foam seat, mounted to a five-star nylon base with dual-wheel nylon casters, secured with plastic hardware and steel connectors fixed at major joints for structural stability. Each individual work zone includes a 60mm desk grommet for integrated cable management, routing power and data cables from the floor to the work surface to reduce surface clutter. A three-drawer mobile pedestal with soft-close mechanisms fits under each desk to provide personal storage for documents and office supplies. The included task chairs support adjustable seat height via gas lift, 360-degree rotation, and smooth movement across hard flooring. Pre-fabricated partition panels support modular reconfiguration to adapt to changing team needs over time.
This set is well suited for open-plan office areas, where it creates structured individual work zones without requiring full-height wall construction. It also fits call center and administrative office environments, where low partitions maintain supervisor visibility while giving staff defined personal space. Its modular design adapts well to startup and co-working spaces with evolving team sizes, and its compact, integrated footprint works efficiently for small business work areas with limited square footage.
For procurement planning, note the set ships across two cartons, with a listed assembly time per set and defined packaged volume and weight for shipping coordination. Teams should plan for appropriate floor load capacity to support the total cluster weight, and confirm layout requirements ahead of installation to leverage the modular reconfiguration feature as needs shift. The unbranded model integrates desking, storage, partitions, and seating in a single coordinated set, streamlining furnishing for multi-user workspaces.

4-Person Cross-Shaped Office Cubicle Workstation Set with Drawer Pedestals Specifications
