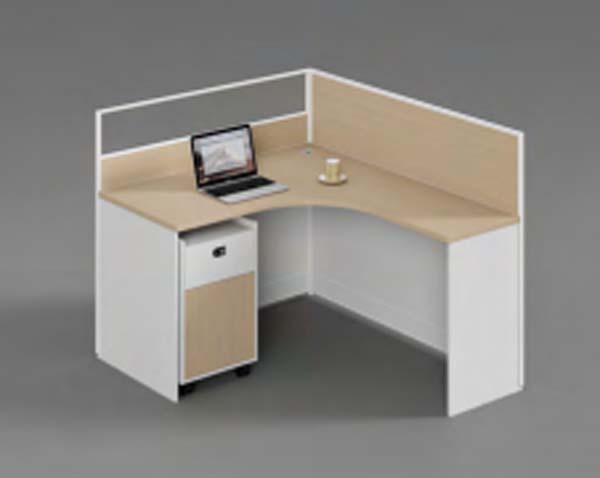

Name: Single-Person Curved Corner Cubicle Office Workstation with Mobile Pedestal
Brand: Fanshidun
SKU: AXW5QE

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1400 × 1200 mm
Overall footprint (W x D x total H)	1500 x 1400 x 1200 mm
Desktop working height	750 mm
Desktop panel thickness	30 mm
Partition panel total thickness	60 mm
Curved knee clearance width at front opening	800 mm
Knee clearance height under desktop	680 mm
Mobile pedestal dimensions (W x D x H)	400 x 500 x 600 mm
Frosted upper divider panel height	300 mm
Solid lower divider panel height	900 mm
Cable grommet diameter	80 mm
Side support panel thickness	25 mm
Caster wheel diameter for mobile pedestal	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Whole unit gross weight	75 kg
Desktop static uniform load capacity	100 kg
Mobile pedestal drawer static load per drawer	25 kg
Drawer slide cycle rating	50000 cycles
Desktop surface abrasion resistance	2000 cycles
Recommended maximum user weight	120 kg
Commercial product warranty	5 years
Available color options	60
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop work surface	30mm E1 grade melamine-faced MFC board
Edge banding for desktop and panels	2mm thick PVC edge trim
Divider structural frame	2mm wall thickness aluminum alloy profile
Upper divider panel	Frosted semi-transparent tempered glass
Lower divider and side support panels	Melamine-faced particle board in light oak and white finish
Mobile pedestal body	18mm thick melamine-faced MDF board with integrated cam lock
Mobile pedestal casters	Black nylon swivel casters (two with brake)
Frame hardware and connectors	Zinc-plated steel cam lock and connecting fittings
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy screening	Two-sided 1200mm tall partitions block line of sight for adjacent seated users
Knee access	Curved inner desktop cutout provides unobstructed seated leg room at corner position
Mobile storage	Rolling pedestal fits under left desktop section, with lockable drawer for personal office supplies
Cable management	Desk-mounted 80mm grommet routes power and data cables from desktop to floor
Modular configuration	Freestanding panel structure can connect to adjacent workstations for multi-seat layout
Pedestal mobility	Swivel casters allow pedestal to be pulled out for access or repositioned under the desk
Surface protection	Melamine desktop finish resists water, stains, and daily scratch damage
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office single staff workstation	Provides individual privacy while fitting compact corner positions for team layouts
Small business or startup office	All-in-one unit with integrated storage reduces need for additional furniture purchases
Call center or administrative work area	Partial-height dividers reduce distraction while maintaining supervisor line of sight
Temporary office fit-out projects	Modular knock-down design allows fast reconfiguration and relocation as needs change
Home office dedicated work corner	Compact footprint fits residential corner spaces with office-level storage and privacy
Educational institution staff work area	Durable commercial construction matches institutional use requirements for daily long-term use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for desk structure and load performance
EN 1335-1:2020	Office furniture dimensional guidelines for seated work surface and clearance compatibility
EN 14073-2:2004	Office storage furniture safety requirements for mobile pedestal cabinets
EN 1022:2018	Domestic and office furniture stability test method for freestanding desks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for load, durability and stability performance testing
ANSI/BIFMA X5.9-2019	Storage units standard for mobile pedestal drawer cycle and load testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel office desk structure and finish
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended ≤0.124mg/m3 E1 grade for indoor office use
GB/T 10357.1-1989	Furniture mechanical test method for desk surface static load and stability verification
GB/T 4897.3-2003	Performance requirement for particleboard used in furniture structural and panel components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office desk structure and finish;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended ≤0.124mg/m3 E1 grade for indoor office use;
3. GB/T 10357.1-1989: Furniture mechanical test method for desk surface static load and stability verification;
4. GB/T 4897.3-2003: Performance requirement for particleboard used in furniture structural and panel components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1500-CRV-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1500-CRV-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1500-CRV-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun CUB-L1500-CRV-MP is a single-person curved corner cubicle office workstation, designed as a functional, space-efficient L-shaped modular unit for modern commercial settings. Its visual profile balances open accessibility and defined privacy, with two 1200mm tall partitions framing the corner workspace: the upper divider uses frosted semi-transparent tempered glass set in a 2mm wall thickness aluminum alloy frame, while lower divider and side support panels feature a coordinated light oak and white melamine finish that complements contemporary office interiors. The gently curved inner desktop cutout creates a welcoming front opening, paired with a clean, streamlined desktop surface fitted with an 80mm cable management grommet for neat power and data routing. Each unit ships with a matching mobile pedestal that tucks seamlessly under the left desktop section when not in use, maintaining a tidy, uncluttered layout. The workstation is built for consistent commercial use, with a 30mm thick E1 grade melamine-faced MFC desktop finished to resist water, stains, and daily scratch damage, trimmed with 2mm thick PVC edge banding to protect against impact wear. The 60mm thick partition structure connects with zinc-plated steel cam lock hardware for sturdy, freestanding stability, while the mobile pedestal is constructed from 18mm thick melamine-faced MDF with an integrated cam lock, mounted on black nylon swivel casters—two fitted with brakes—to keep the unit secure when positioned. The desktop supports a 100kg static uniform load, each pedestal drawer holds 25kg, with drawer slides rated for 50000 open/close cycles and the desktop surface tested for 2000 cycles of abrasion resistance, backed by a 5-year commercial product warranty. Functional design details address core office needs: the two-sided partitions block direct line of sight between adjacent seated users to reduce distraction, the curved cutout delivers 800mm of front knee clearance and 680mm of vertical under-desk space for comfortable seated positioning, the lockable rolling pedestal provides secure personal storage that can be pulled out for easy access, and the freestanding modular structure connects to matching units to build multi-seat open-plan layouts as needed. The 1500 x 1400 x 1200mm footprint fits a wide range of settings, including open-plan office corner positions for team layouts, small business and startup offices where the integrated storage eliminates the need for separate furniture purchases, call center and administrative floors where partial-height dividers preserve supervisor visibility while reducing cross-staff distraction, temporary office fit-outs that require fast reconfiguration, dedicated home office corners, and educational institution staff areas built for heavy long-term daily use. Procurement teams should note each unit ships across multiple cartons, requires 40 minutes of assembly per set, and supports a maximum recommended user weight of 120kg.
