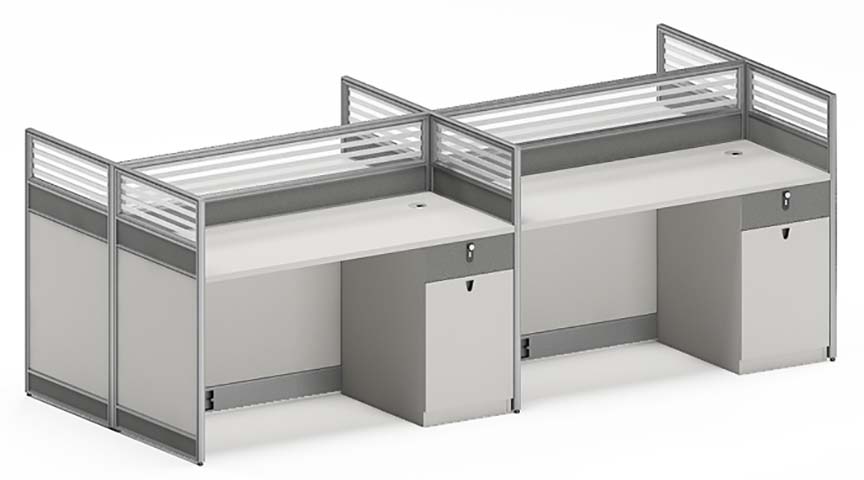

2-Person Back-to-Back Modular Office Cubicle Workstation with Integrated Storage (model WS-2P-BTB-2400) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 1245 × 1200 mm, a net weight of 78 kg and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Modular,structure,half-height,privacy,partitions,integrated,lockable,storage,cable,management,grommets,two-person,back-to-back,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2400 x 1245 x 1200 mm | |
|---|---|---|
| Individual work surface size | 1200 x 600 mm | |
| Work surface height | 760 mm | |
| Work surface thickness | 32 mm | |
| Under-desk knee clearance height | 670 mm | |
| Knee clearance width per station | 700 mm | |
| Privacy partition total height | 1200 mm | |
| Translucent upper partition height | 300 mm | |
| Solid lower privacy panel height | 900 mm | |
| Integrated storage pedestal size | 450 x 600 x 680 mm | |
| Cable grommet diameter | 60 mm | |
| Partition frame profile width | 30 mm | |
| Storage drawer internal height | 150 mm | |
| Lower cabinet internal height | 480 mm | |
| Adjustable foot height | 15 mm | |
| PVC edge banding thickness | 1 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 78 kg | |
|---|---|---|
| Per-workstation static load capacity | 113 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Acoustic privacy rating | 25 dB | |
| Warranty period | 24 months | |
| Available color options | 3 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 32mm E1 grade melamine-faced particleboard | |
|---|---|---|
| Storage cabinet panels | 18mm E1 grade melamine-faced particleboard | |
| Partition frame | Powder-coated extruded aluminum | |
| Upper partition panels | Translucent frosted louvered acrylic | |
| Lower privacy panels | Laminated MDF core with fabric-faced surface | |
| Hardware | Zinc-plated steel locks, hinges, and leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Round desktop grommets per work position | |
|---|---|---|
| Storage locking | Central lock per integrated pedestal | |
| Leveling adjustment | Threaded adjustable feet at all frame corners | |
| Modular expansion | Aluminum frame connection brackets |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Provides divided individual workspaces for two employees in shared office areas | |
|---|---|---|
| Small team work zones | Suitable for startup or branch office installations with limited floor space |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: Safety and strength requirements for commercial use | |
|---|---|---|
| EN 527-2:2016 | Office worktables: Dimensional requirements for seated work positions | |
| EN 13986:2004 | Wood-based panels for construction and furniture use: Performance specifications |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard for desk products used in commercial office environments | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Performance standard for office storage units including pedestals and cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture for office use | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks and workstations | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panel products used indoors |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture for office use; 2. GB/T 3327-2016: Performance requirements for office desks and workstations; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products used indoors; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
