Automatic mm / inch conversion · Core engineering specifications
| Overall unit dimensions | 2800 x 2200 x 1100 mm | |
|---|---|---|
| Standard desktop working height | 750 mm | |
| Worktop thickness | 25 mm | |
| Single L-shaped desktop arm length | 1400 mm | |
| Desktop usable depth | 600 mm | |
| Privacy partition panel height | 350 mm | |
| Knee clearance height under desktop | 650 mm | |
| Knee clearance width at curved cutout | 800 mm | |
| 3-drawer pedestal dimensions | 400 x 500 x 600 mm | |
| Edge banding thickness | 2 mm | |
| Cable grommet diameter | 60 mm | |
| Support frame tube wall thickness | 1.2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Unit net weight | 120 kg | |
|---|---|---|
| Per desktop static load capacity | 100 kg | |
| Per drawer slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight per position | 120 kg | |
| Product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop substrate | E1 grade particleboard | |
|---|---|---|
| Worktop finish | Light oak melamine laminate | |
| Edge banding | 2mm PVC edge sealing | |
| Cabinet panels | White matte melamine MDF | |
| Partition frame | White powder-coated square steel tube | |
| Divider panel infill | Frosted semi-transparent acrylic panel | |
| Drawer hardware | Cold-rolled steel slides with plastic handles | |
| Under-desk shelf | White melamine laminate shelf | |
| Feet pads | Anti-slip nylon adjustable glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

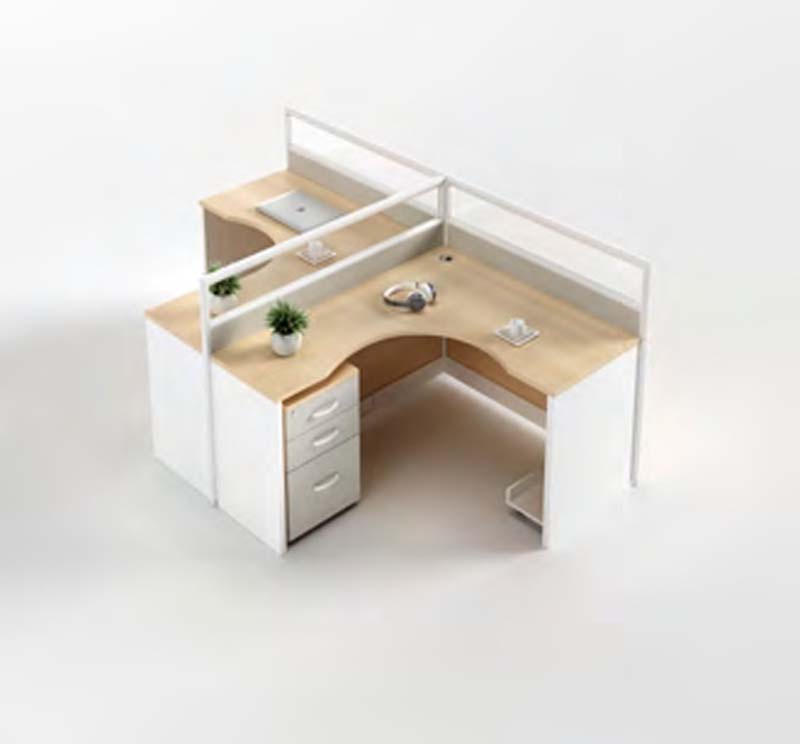

| Dual mirrored L-work surfaces | Two identical corner positions for 2 staff seated at 90-degree orientation | |
|---|---|---|
| Curved knee cutout per position | Concave inner corner cutout provides unobstructed leg room for seated use | |
| Integrated 3-drawer pedestal per position | Fixed under left desk section, includes 2 stationery drawers and 1 file drawer for storage | |
| Under-desk CPU/foot shelf | Fixed open shelf under right desk section for CPU tower placement or foot rest | |
| Low privacy dividers | 350mm high white-framed panels separate work positions to reduce visual distraction | |
| Desktop cable grommet | 60mm round access hole at inner corner routes cables from desktop to under-desk wiring | |
| Adjustable floor glides | Nylon feet adjust by 10mm to level unit on uneven office floors | |
| Modular expandability | Compatible with additional partition panels to expand to 4+ person workstation clusters | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office space | Suitable for 2 adjacent staff in open office layouts, provides basic visual privacy | |
|---|---|---|
| Small business team workspace | Ideal for startup or small team corner installations requiring compact shared work areas | |
| Administrative staff positions | Suitable for admin, finance, or customer service roles needing desktop space and local document storage | |
| Modular office expansion projects | Compatible with standard cubicle systems for incremental team size expansion | |
| Co-working space dedicated desks | Fits co-working facilities needing fixed assigned workstations with personal storage | |
| Back-office operational work areas | Durable construction suitable for high-traffic back-office daily long-hour use |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: safety and dimensional requirements for office desks | |
|---|---|---|
| EN 527-2:2016 | Office worktables: mechanical safety and strength performance requirements | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction: formaldehyde emission class E1 limit |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard for office desks and workstations, desk load and durability tests | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Performance standard for storage pedestals and filing cabinets, drawer cycle and load tests |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for panel structural performance | |
|---|---|---|
| GB/T 3327-2017 | Stability, strength and durability requirements for office desks and workstations | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panel products, E1 grade requirement applicable | |
| GB/T 10357.1-2013 | Mechanical test methods for furniture: table strength and load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for panel structural performance; 2. GB/T 3327-2017: Stability, strength and durability requirements for office desks and workstations; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panel products, E1 grade requirement applicable; 4. GB/T 10357.1-2013: Mechanical test methods for furniture: table strength and load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
