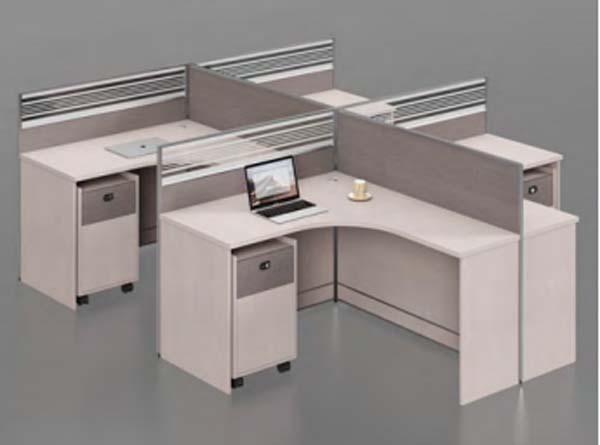

Product supplier4-Person Cross-Shaped Curved Office Cubicle Workstation with Mobile Pedestals, 25mm melamine-faced particleboard (MFC)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2800 × 1100 mm | |
|---|---|---|
| Overall footprint | 2800 x 2800 x 1100 mm | |
| Work surface height | 750 mm | |
| Per-seat work surface depth | 700 mm | |
| Privacy partition height | 1100 mm | |
| Worktop panel thickness | 25 mm | |
| Partition panel thickness | 100 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width per seat | 700 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Cable grommet diameter | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set weight | 260 kg | |
|---|---|---|
| Static worktop load per seat | 100 kg | |
| Mobile pedestal drawer static load | 25 kg | |
| Mobile pedestal caster load rating per caster | 40 kg | |
| Supported user count | 4 | |
| Partition privacy rating | Seated eye-level block | |
| Finish surface durability | 2000 abrasion cycles | |
| Product warranty | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panel | 25mm melamine-faced particleboard (MFC) | |
|---|---|---|
| Partition frame | Powder-coated aluminum extrusion | |
| Partition infill panel | Fabric-wrapped medium density fiberboard | |
| Edge banding | 2mm PVC edging | |
| Mobile pedestal cabinet | 18mm melamine-faced particleboard | |
| Pedestal casters | Black nylon swivel casters | |
| Support frame under worktop | 1.2mm thick powder-coated steel square tubing | |
| Hardware fasteners | Zinc-plated steel bolts and cam locks | |
| Cable management grommets | ABS plastic | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Rolling mobile storage pedestal | Wheeled under-desk unit | |
|---|---|---|
| Cross-shaped privacy dividers | Partial height central partitions | |
| Integrated cable routing | Central grommet access | |
| Lockable pedestal drawer | Keyed lock on top drawer | |
| Modular reconfiguration capability | Bolt-together aluminum partition system | |
| Fixed side support panels | Full-height worktop end panels | |
| Perforated upper partition strip | Ventilated top grille | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | 4-person cluster for operations, admin, or sales teams with balanced privacy and collaboration | |
|---|---|---|
| Call center and customer service floors | High-density seating with dividers to reduce cross-talk distraction between agents | |
| Startup and co-working spaces | Modular cluster that supports flexible team seating and reconfiguration as headcount changes | |
| Project team zones | Dedicated 4-person work group area with immediate under-desk storage for project materials | |
| Back office administrative departments | Durable work surfaces for daily document processing, computer work and file storage | |
| Recruitment and training facilities | Standardized multi-seat units that can be rearranged for different class or team sizes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002 | Office work tables: safety, strength and durability | |
|---|---|---|
| EN 1335-1:2020 | Office work chairs: dimensions |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3327-2016 | Office furniture: desks and tables | |
| GB 18584-2001 | Indoor decorating and refurbishing materials: limit of harmful substances |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB/T 3327-2016: Office furniture: desks and tables; 3. GB 18584-2001: Indoor decorating and refurbishing materials: limit of harmful substances; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
