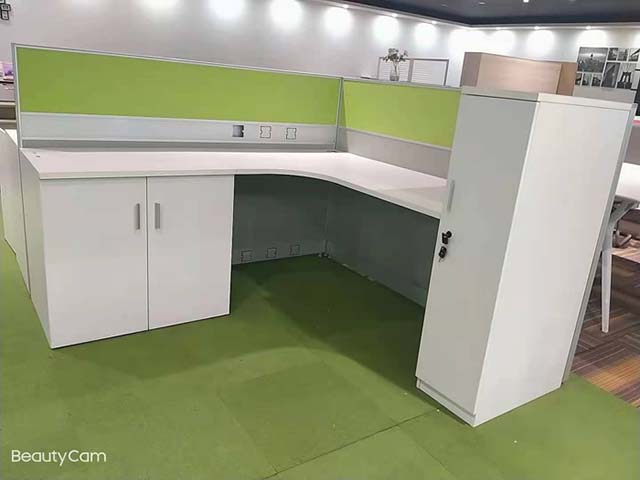

Curved L-Shaped Office Cubicle Workstation with Integrated Storage (model L-CUB-1600-GRN-WHT) is listed under L-Shaped Office Desk, with overall dimensions of 1600 × 1600 × 1050 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Commercial,furniture,partitioned,cubicle,integrated,lockable,storage,built-in,power,outlets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1600 x 1600 x 1050 mm | |
|---|---|---|
| Worksurface height | 750 mm | |
| Worksurface thickness | 25 mm | |
| Privacy partition height above worksurface | 300 mm | |
| Partition panel thickness | 25 mm | |
| Left double-door cabinet dimensions | 800 x 400 x 750 mm | |
| Central knee well width | 800 mm | |
| Knee well minimum depth under worksurface | 600 mm | |
| Door width (left cabinet) | 400 mm | |
| PVC edge banding thickness | 2 mm | |
| Power outlet mounting height above worksurface | 100 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total worksurface static load capacity | 91 kg | |
|---|---|---|
| Recommended user weight capacity | 136 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Formaldehyde emission grade | E1 | |
| Total unit net weight | 120 kg | |
| Warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface and cabinet panels | 25mm melamine-faced E1 particleboard with 2mm PVC edge banding | |
|---|---|---|
| Upper privacy partition panels | Fabric-covered tackable hardboard with light green finish | |
| Partition utility rail | Gray powder-coated steel rail with integrated power/data mounting points | |
| Support frame and hardware | Cold-rolled powder-coated steel legs, connectors, and adjustable floor levelers | |
| Cabinet door handles and locks | Brushed silver aluminum pull handles, keyed cam locks with 2 keys per lock | |
| Cable management components | ABS plastic wire grommets and floor cable access plates at knee well back |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy screening | Fabric partitions block direct line of sight between adjacent workstations | |
|---|---|---|
| Storage configuration | Left double-door under-desk cabinet for general supplies, right tall lockable cabinet for personal/file storage | |
| Power and data access | Three integrated outlet plates on partition rail for power, network, and data connectivity | |
| Cable management | Dual routing path from partition outlets down through back panel to floor cable access ports |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Individual partitioned workstations reduce visual distraction in shared office spaces | |
|---|---|---|
| Corporate administrative departments | Integrated lockable storage supports personal document and supply organization for daily tasks |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements for work surfaces and storage | |
|---|---|---|
| EN 13986:2004+A1:2015 | Wood-based panels for construction: performance and emission requirements | |
| EN 1022:2019 | Domestic and office furniture: seating stability test for office chair compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: safety, durability, and structural performance requirements | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage cabinets: strength, durability, and lock performance requirements | |
| ANSI/BIFMA M7.1-2020 | Standard test method for furniture VOC emissions for office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to panel desk construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard substrates | |
| GB/T 35607-2017 | Green product assessment for furniture, applicable to low-emission office workstation materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel desk construction; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard substrates; 3. GB/T 35607-2017: Green product assessment for furniture, applicable to low-emission office workstation materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
