PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2820 × 2820 × 1100 mm
Overall cluster dimensions	2820 x 2820 x 1100 mm
Work surface height from floor	750 mm
Per-seat L-shaped work surface	1400 x 1200 mm
Curved front knee clearance width	600 mm
Knee clearance height under worktop	630 mm
Low partition height above worktop	400 mm
3-drawer integrated pedestal dimensions	725 x 420 x 480 mm
Worktop thickness	25 mm
Cable grommet diameter	60 mm
Partition frame tube thickness	1.2 mm
PVC edge banding thickness	2 mm
CPU shelf under worktop dimensions	300 x 450 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cluster net weight	128 kg
Static vertical load per work surface	120 kg
Per-drawer static load capacity	25 kg
Recommended user weight per seat	136 kg
Worktop surface abrasion resistance	2000 cycles
Surface stain and water resistance rating	Grade 1
Assembly cycle durability for hardware	10000 cycles
Standard product warranty	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	E1 grade melamine-faced chipboard
Work surface edge sealing	2mm thick impact-resistant PVC edging
Partition frame construction	1.2mm thick powder-coated white steel tubing
Partition infill panels	16mm thick melamine-faced MDF with matte white finish
Storage pedestal cabinet bodies	18mm thick melamine-faced particleboard
Drawer slides	Cold-rolled steel 3-section full-extension slides
Cable grommets	ABS plastic with brushed silver finish
Under-desk CPU shelf	Powder-coated steel wire shelf
Adjustable foot glides	Nylon base with steel threaded stem
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Individual seated work zones	Four separate L-shaped positions separated by low cross dividers
Curved front knee recess	Concave cutout at each seating position
Cable management access	60mm grommet at each work surface corner
Integrated pedestal storage	3 drawers per workstation for files and office supplies
Under-desk CPU storage	Fixed steel shelf at outer leg of each desk
Modular reconfiguration capability	Knock-down steel frame connection points
Floor leveling adjustment	15mm vertical adjustment range on foot glides
Smooth drawer operation	Full-extension slides with soft-close detent
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	4-seat cluster fits standard 3m x 3m office floor grid for team-based departments
Call center and customer service floors	Low dividers balance acoustic privacy and supervisor sightlines for headset use
Startup and co-working spaces	Modular design supports flexible team size adjustments without full office renovation
Administrative and back-office zones	Integrated storage eliminates need for separate filing cabinets per employee
Training and project team rooms	Cross layout supports easy collaboration between adjacent team members during projects

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to commercial desk performance
EN 527-2:2016	Office worktables dimensional and ergonomic requirements, applicable to seated clearance dimensions
EN 13986:2004+A1:2015	Wood-based panels for construction, applicable to panel material performance standards

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to static load and durability testing
ANSI/BIFMA e3-2019e	Furniture sustainability standard, applicable to material emissions and recyclability criteria

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel work surfaces and cabinet components
GB/T 3327-2016	Performance requirements for office desks and workstations, applicable to load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1 grade core material verification
GB/T 10357.1-2013	Furniture mechanical surface strength test methods, applicable to worktop durability validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel work surfaces and cabinet components;
2. GB/T 3327-2016: Performance requirements for office desks and workstations, applicable to load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade core material verification;
4. GB/T 10357.1-2013: Furniture mechanical surface strength test methods, applicable to worktop durability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-LW-LD-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-LW-LD-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-LW-LD-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

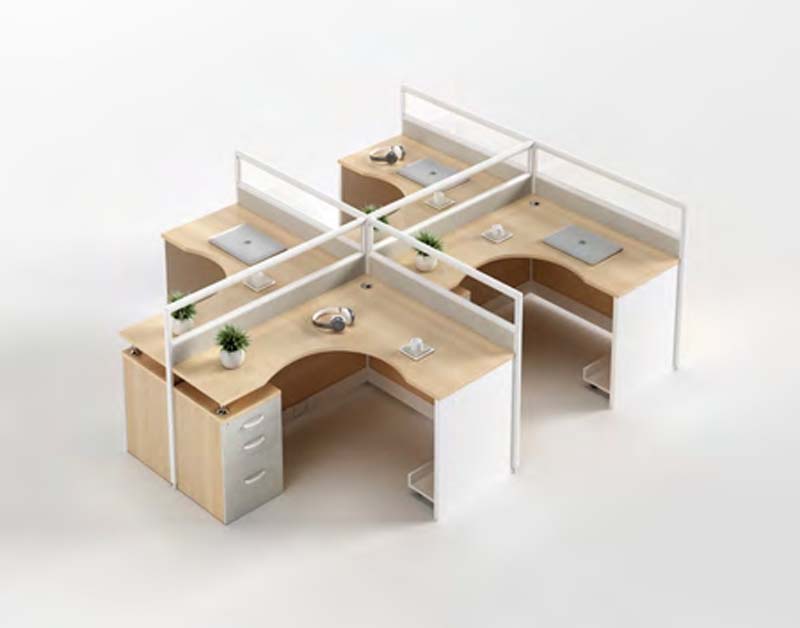

The 4-Person Cross Cluster Low-Partition L-Shaped Office Cubicle Workstation with Drawer Pedestals is an unbranded modular open-office seating solution (model WS-CR4-LW-LD-2800) designed for balanced private work and light team interaction. Its cross-shaped layout arranges four equal L-shaped individual work zones around a central partition intersection, creating a compact square footprint that aligns with standard commercial office floor planning grids. Low 400mm dividers sit above each work surface, finished with matte white melamine infill panels mounted on powder-coated white steel frames, maintaining open sightlines while defining clear personal work boundaries. Each station features a concave curved front knee recess for ergonomic seated access.
Constructed for high-traffic office use, the workstation uses 25mm thick E1-grade melamine-faced chipboard worktops sealed with 2mm impact-resistant PVC edge banding to resist daily wear. Integrated 3-drawer storage pedestals are built from 18mm melamine-faced particleboard, fitted with cold-rolled steel full-extension drawer slides, and mounted directly to each station to eliminate the need for separate filing units. Under-desk powder-coated steel wire shelves hold CPU units, while nylon foot glides with steel threaded stems enable 15mm of vertical floor leveling to accommodate uneven surfaces. ABS brushed silver cable grommets are positioned at each work surface corner to organize power and data cords, with knock-down steel frame connection points supporting straightforward modular reconfiguration.
Each work surface supports a 120kg static vertical load, with individual drawers rated for 25kg static load, and each seat rated for 136kg user weight. Worktops carry a Grade 1 stain and water resistance rating, with abrasion resistance tested to 2000 cycles, and hardware rated for 10000 assembly cycles. The work surface sits 750mm from the floor, with 630mm of vertical knee clearance and 600mm width at the curved front recess. The complete cluster measures 2820 x 2820 x 1100mm, with each L-shaped work surface offering 1400 x 1200mm of usable space, and each integrated pedestal sized 725 x 420 x 480mm.
This workstation is well suited for open-plan office staff areas, call center and customer service floors where low dividers balance acoustic privacy for headset use with unobstructed supervisor sightlines, startup and co-working spaces requiring flexible layout adjustments, administrative back-office zones, and project team or training rooms where the cross layout supports casual adjacent collaboration. Procurement teams should note each set ships in two cartons with a packaged gross weight of 120kg and 0.8m³ packaging volume, requires 40 minutes of assembly time per unit, and supports reconfiguration without full office renovation as team sizes shift. The unbranded design offers consistent, functional performance for high-density commercial work environments.

4-Person Cross Cluster Low-Partition L-Shaped Office Cubicle Workstation with Drawer Pedestals Specifications
