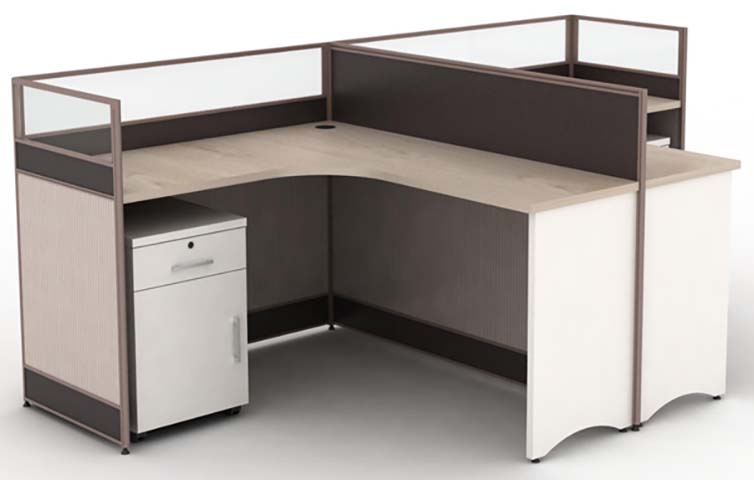

Name: Single-User L-Shaped Office Cubicle Workstation with Mobile Drawer Pedestal
Brand: aibi furniture
SKU: CDL80M

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1400 × 1200 mm
Overall workstation dimensions	1500 x 1400 x 1200 mm
Desktop surface height from floor	750 mm
Desktop panel thickness	25 mm
Privacy partition panel thickness	60 mm
Upper frosted glass partition height	300 mm
Lower fabric/wood divider panel height	900 mm
Seated knee recess clearance width	800 mm
Knee clearance height under desktop	680 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Desktop cable grommet diameter	80 mm
Adjustable leveling foot adjustment range	15 mm
Caster wheel diameter on mobile pedestal	50 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation net weight	85 kg
Desktop static load capacity	120 kg
Recommended maximum user weight for seated use	136 kg
Partition panel sound transmission class rating	25 dB
Desktop surface scratch resistance rating	2H pencil hardness
Standard product warranty	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm thick melamine-faced MFC panel, 2mm PVC edge banding
Partition structural frame	1.2mm thick powder-coated aluminum extrusion
Upper partition panels	10mm thick frosted tempered semi-transparent glass
Lower partition panels	Fabric-wrapped 9mm thick MDF core tackable panel
Mobile pedestal body	18mm thick melamine-faced MFC, white painted finish
Mobile pedestal casters	Black nylon swivel casters, 2 with locking brakes
Hardware components	Zinc-plated steel connector bolts, cam locks, adjustable nylon leveling feet
Drawer and door handles	Brushed silver aluminum pull handles
Cable grommet	Black ABS plastic circular wire management grommet
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Single corner desktop grommet routes power and data cables below work surface
Mobile storage	2-compartment lockable pedestal with 1 top drawer and 1 lower cabinet, rolls on casters
Height leveling	4 adjustable foot pads on workstation frame base, 4 casters on pedestal
Privacy screening	3-sided two-tone dividers block direct line of sight between adjacent workstations
Acoustic dampening	Fabric-wrapped lower partition panels absorb ambient office noise
Tackable surface	Fabric lower divider panels support pushpin attachment of notes and documents
Modular connectivity	Partition frames include pre-drilled connection points for multi-station layout expansion
Locking storage	Integrated key lock on top pedestal drawer secures personal office valuables
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate offices	Provides individual semi-private workspaces for staff in shared floor layouts
Call center and customer support floors	Offers noise reduction and dedicated work surfaces for headset-based work
Startup co-working spaces	Modular design allows flexible reconfiguration for growing team sizes
Government and administrative work areas	Durable construction and lockable storage meet standard office security requirements
Small business back-office spaces	Compact L-shape fits corner positions to maximize limited floor area

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop load and stability
EN 1023-2:2000	Office storage furniture strength and durability, applicable to mobile pedestal performance
EN 13722:2004	Office furniture partition panels safety and performance requirements, applicable to dividers

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard for strength, durability and functional performance of pedestal

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktop and pedestal components
GB/T 3327-2016	Performance requirements for office desks, applicable to work surface and structural integrity
GB 18580-2017	Formaldehyde emission limits for engineered wood panels, applicable to MFC/MDF components
GB/T 24821-2009	Performance requirements for office panel partition systems, applicable to divider construction

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and pedestal components;
2. GB/T 3327-2016: Performance requirements for office desks, applicable to work surface and structural integrity;
3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable to MFC/MDF components;
4. GB/T 24821-2009: Performance requirements for office panel partition systems, applicable to divider construction;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LWS-SOLO-1500

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LWS-SOLO-1500

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LWS-SOLO-1500Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Single-User L-Shaped Office Cubicle Workstation with Mobile Drawer Pedestal from aibi furniture, model LWS-SOLO-1500, delivers a balanced semi-private work solution built for modern professional environments. Its L-shaped corner layout fits neatly into unused corner floor space, framed by 3-sided two-tone privacy dividers that block direct line of sight between adjacent work positions. The upper section of each partition uses frosted semi-transparent tempered glass to allow soft light transfer, while lower panels sit at seated height to create a defined personal work zone without creating a fully enclosed, isolated feel. Built for consistent daily use, the workstation’s work surface is constructed from thick melamine-faced MFC with durable PVC edge banding, rated to resist surface scratches equivalent to 2H pencil hardness and support a static desktop load of 120 kg. Partition frames use powder-coated aluminum extrusion for structural stability, with fabric-wrapped tackable MDF lower panels that absorb ambient office noise at a 25 dB sound transmission class rating, and accept pushpins for posting notes or reference documents. The included mobile storage pedestal uses melamine-faced MFC with a white painted finish, fitted with black nylon swivel casters (two with locking brakes), and features one top drawer and one lower lockable cabinet for secure personal storage. Additional construction details include zinc-plated steel hardware, brushed silver aluminum pull handles, adjustable nylon leveling feet on the workstation base, and a circular black ABS cable grommet at the desktop corner to route power and data cords neatly below the work surface. Functional design elements support comfortable, efficient work: generous knee clearance under the desktop accommodates standard office seating, the lockable pedestal rolls smoothly for flexible positioning or out-of-way storage, and pre-drilled connection points on partition frames allow seamless modular expansion to build multi-station layouts as needed. This workstation is well suited for open-plan corporate offices, call center and customer support floors, startup co-working spaces, government and administrative work areas, and small business back-office environments, where its compact corner footprint helps maximize limited floor area while providing dedicated, semi-private work space. For procurement teams, key considerations include noting the unit ships in two cartons per set, requires on-site assembly, and comes with a 5-year standard product warranty. The modular frame design supports long-term layout flexibility for growing or shifting team configurations, while the lockable storage and durable construction align with standard office security and longevity requirements.

Single-User L-Shaped Office Cubicle Workstation with Mobile Drawer Pedestal Specifications
