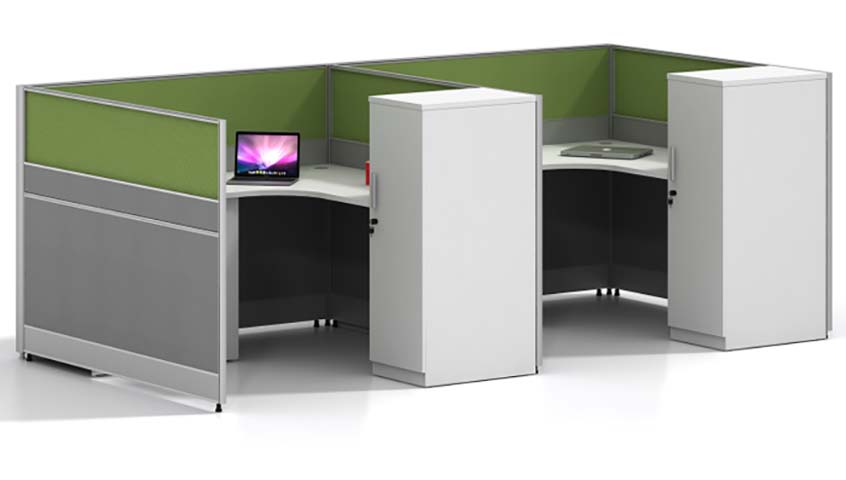

2-Person L-Shaped Modular Office Cubicle Workstation with Lockable End Storage Cabinets (model CUB-L2-1200-GRGR) is listed under L-Shaped Office Desk, with overall dimensions of 3050 × 1650 × 1140 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: two-tone,fabric,partitions,integrated,lockable,storage,L-shaped,work,bays,modular,panel,system. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled footprint | 3050 x 1650 x 1140 mm | |
|---|---|---|
| Worksurface depth | 610 mm | |
| Seated worksurface height | 750 mm | |
| Under-desk knee clearance height | 680 mm | |
| Partition panel thickness | 25 mm | |
| Lower opaque partition height | 700 mm | |
| Upper green privacy screen height | 440 mm | |
| Integrated end cabinet dimensions | 450 x 600 x 1140 mm | |
| Curved front entry edge radius | 300 mm | |
| Leveling foot adjustment range | 20 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-worksurface static load capacity | 113 kg | |
|---|---|---|
| Total packaged system weight | 300 kg | |
| Recommended user capacity | 2 people | |
| Commercial surface abrasion resistance | 2000 cycles | |
| Limited product warranty | 10 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface construction | 25 mm thermally fused laminate over particleboard core | |
|---|---|---|
| Partition panel construction | 25 mm composite hardboard core, fabric upholstery over powder-coated steel frame | |
| Frame and support hardware | 1.2 mm thick powder-coated steel connectors and support posts | |
| Storage cabinet construction | 18 mm melamine-faced engineered wood cabinet body with matching white laminate finish | |
| Leveling components | Reinforced nylon adjustable leveling feet with steel threaded stems | |
| Underside modesty panel | 3 mm thick dark grey steel panel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated base raceways with desktop grommets | |
|---|---|---|
| Storage access control | Keyed cam locks on all integrated end cabinet doors | |
| Modular reconfiguration | Steel bracket panel connectors allow layout rearrangement | |
| Floor stability adjustment | Threaded leveling feet at all partition and cabinet bases |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Designed for two-person team clusters in corporate open office layouts, provides seated visual privacy | |
|---|---|---|
| Small business team work areas | Suitable for startup or branch office work zones, integrates storage without additional furniture |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture work chair dimensional coordination, aligned to desk clearance | |
| EN 1022:2018 | Domestic and contract furniture seating stability reference for chair clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for commercial office worksurfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard applicable to integrated lockable cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate work surfaces and cabinets | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frames and hardware | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to engineered wood components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate work surfaces and cabinets; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frames and hardware; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to engineered wood components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
