PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2800 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-workstation static load capacity	150 kg
Mobile pedestal drawer static load	30 kg
Total set gross weight	280 kg
Melamine surface abrasion resistance	2000 cycles
Warranty period	5 years
Available color options	60
Adjustable foot leveling range	15 mm
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	25mm melamine-faced particle board, scratch and stain resistant
Partition frame	1.5mm thick aluminum alloy profile, matte black powder coated finish
Partition infill panel	Blue fabric-covered composite board, semi-privacy construction
Desktop edge banding	2mm thick impact-resistant PVC, color-matched to work surface
Mobile storage pedestal	0.8mm thick cold-rolled steel cabinet, light gray powder coated finish
Leveling feet	Reinforced nylon with steel threaded insert, adjustable height
Partition connector hardware	Zinc-plated steel modular connecting brackets
Cable grommet	ABS plastic desk port with removable cover, black finish
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular assembly design	Knock-down connected configuration, reconfigurable for open office layouts
Cable management system	Desktop grommets with under-partition cable routing trays for power and data cords
Mobile pedestal storage	4 included lockable cabinets, each with 1 top drawer and 1 lower door compartment
Seated privacy partition	1200mm high dividers block direct line of sight between adjacent seated users
Leveling adjustment	Threaded foot glides adjust to compensate for uneven office flooring
Locking storage	Integrated cam lock on each mobile pedestal secures drawer and door contents
Per-workstation workspace	Dedicated L-shaped surface supports laptop, monitor and office supplies for 1 user
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office space	4 dedicated work zones for administrative, customer service or finance staff
Startup team workspace	Modular layout supports small growing teams, reconfigurable as team size changes
Call center or shared work area	Semi-private dividers reduce distraction while allowing supervisor visibility
Corporate staff work area	Neutral blue and light gray finish matches standard commercial office interior schemes
Government or institutional office	Durable commercial grade construction withstands daily high-traffic use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2016	Office worktables, safety and structural performance requirements for desk components
EN 1335-2:2009	Office furniture work chairs (applicable to matching seating, structural safety reference)
EN 1022:2018	Furniture seating stability test standard, reference for accompanying office seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, structural durability and load performance reference
ANSI/BIFMA X5.1-2017	Office chairs standard, applicable to matching task seating safety reference

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to work surface and panel components
GB/T 3327-2018	Technical requirements for office desks and workstations, structural performance reference
GB 18584-2001	Limit of harmful substances in wooden furniture, indoor air quality compliance reference

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surface and panel components;
2. GB/T 3327-2018: Technical requirements for office desks and workstations, structural performance reference;
3. GB 18584-2001: Limit of harmful substances in wooden furniture, indoor air quality compliance reference;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L4-3228-12

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L4-3228-12

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L4-3228-12Open Export Tool

Quick Actions

Post an RFQ

Product Description

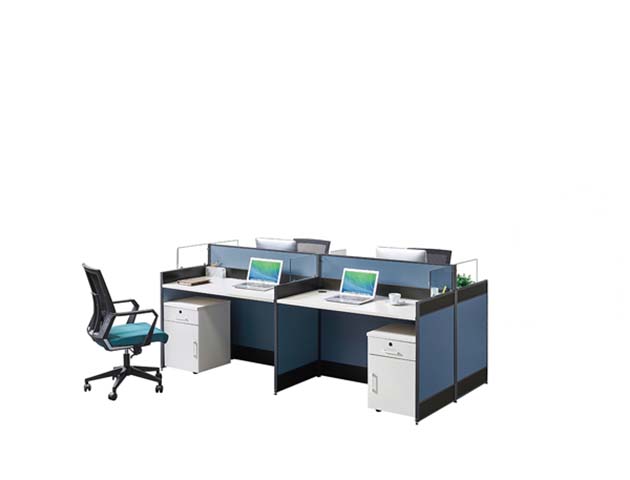

This 4-Person Cross-Configuration L-Shaped Office Cubicle Workstation with Mobile Pedestals, model CUB-L3228-12, delivers a purpose-built shared workspace solution for professional environments. Its cross-aligned L-shaped layout creates four dedicated individual work zones arranged around a central partition core, with 1200mm high semi-privacy dividers that block direct line of sight between seated adjacent users while retaining clear visibility for supervisory oversight. The blue fabric-covered composite partition infill is set in a matte black powder-coated 1.5mm thick aluminum alloy frame, connected via zinc-plated steel modular brackets to form a stable, unified structure. Each work surface is constructed from 25mm scratch and stain-resistant melamine-faced particle board, finished with 2mm thick impact-resistant PVC edge banding color-matched to the selected work surface, with 60 available color options to align with varied interior schemes. Reinforced nylon leveling feet with steel threaded inserts offer 15mm of height adjustment to compensate for uneven office flooring, while the cross-configuration leaves clear under-desk clearance for legroom and accessory placement. Primary structural components are sized to 40mm thickness aligned with load-bearing requirements, with 5mm operating clearance for all moving hardware, and M6 to M10 connectors with at least two fixing points at every major joint for long-term structural stability. The work surface supports a 150kg static load per station, enough space for monitors, laptops, and daily office supplies. Integrated cable management includes black ABS desk grommets with removable covers paired with under-partition routing trays to neatly organize power and data cords. Four included light gray powder-coated 0.8mm cold-rolled steel mobile pedestals, each fitted with an integrated cam lock, slide under each desk to offer secure storage: every pedestal includes one top drawer and one lower door compartment, with a 30kg static load capacity per drawer. The melamine work surface resists abrasion through 2000 cycles of regular use, backed by a 5-year warranty for commercial application. This unbranded workstation is suited for open plan offices supporting administrative, customer service, or finance teams, flexible startup workspaces that need reconfigurable layouts as team size shifts, call centers where reduced distraction and supervisor access are priorities, standard corporate offices thanks to its neutral blue and light gray finish palette, and high-traffic government or institutional offices requiring durable commercial-grade construction. For procurement, note that each set ships in 2 cartons with 0.8 cubic meters of total packaging volume, 120kg packaged weight per set, and requires 40 minutes of assembly time per unit, with a total assembled gross weight of 280kg. The knock-down modular design supports future reconfiguration to adapt to evolving office layout needs without full fixture replacement.
