PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1200 × 1100 mm
Work surface height	750 mm
Side storage cabinet width	400 mm
Side storage cabinet depth	400 mm
Side storage cabinet height	1100 mm
Knee clearance width under desk	700 mm
Knee clearance height under desk	620 mm
Partition panel thickness	32 mm
Mobile pedestal dimensions	430 x 560 x 650 mm
Work surface thickness	25 mm
Privacy panel upper louvered section height	400 mm
Cable grommet diameter	60 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	136 kg
Mobile pedestal drawer static load	30 kg per drawer
Product net weight	80 kg
Recommended user weight capacity	150 kg
Laminate surface scratch resistance	2000 abrasion cycles
Leveling foot adjustment range	15 mm
Warranty period	5 years
Available color options	2
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	E1 grade engineered wood with thermally fused walnut laminate, 2mm PVC edge banding
Lower partition panels	Melamine-faced engineered wood with charcoal black accent trim
Upper partition panels	Frosted semi-transparent polycarbonate louvered panels
Partition support frames	Powder-coated aluminum extrusion with matte dark gray finish
Mobile pedestal body	Walnut laminate engineered wood with black laminate drawer front
Pedestal hardware	Brushed silver steel drawer pulls, central key lock cylinder
Pedestal casters	50mm diameter black nylon swivel casters, two with locking brakes
Partition leveling feet	Nylon base with steel threaded adjustment stem
Side storage cabinet interior	Black melamine backing with integrated cable pass-through ports
Cable grommet	Black ABS plastic round desk port with removable cap
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Round desktop grommet routes power and data cords from work surface to under-desk area
Mobile pedestal storage	2-lockable drawers: 1 shallow stationery drawer, 1 deep filing drawer for A4/legal documents
Privacy screening	3-sided partition dividers block direct cross-sightlines for seated staff, upper louvered panels transmit ambient light
Side open shelf storage	Elevated top shelf and lower open compartment hold books, plants and small office supplies at left return
Floor leveling	Adjustable feet on partition bases compensate for uneven office flooring to keep work surface stable
Pedestal mobility	Swivel casters allow pedestal to be repositioned under desk or moved to adjacent workspace, locking casters hold unit in place during use
Modular assembly	Panel connectors allow single workstation to connect to additional cubicle units for expanded open-plan layouts
Under-desk modesty panel	Solid front lower panel hides seated user legs and under-desk cabling from view
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff workstations	Suitable for corporate open-plan offices to define individual workspaces without full wall construction
Small business administrative work areas	Ideal for 4person admin teams needing dedicated private work zones with integrated storage
Call center and shared office spaces	Provides acoustic and visual privacy for focused task work while allowing easy supervisor access
Home office dedicated workspaces	Works for residential professional offices requiring organized storage and work separation from living areas
Temporary project office setups	Knock-down design allows fast deployment and reconfiguration for short-term project teams
Reception back-office support areas	Suitable for reception staff work zones positioned behind front reception counters
Government and institutional office spaces	Meets standard commercial office durability requirements for high-traffic daily staff use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desk structural stability
EN 527-2:2016	Office worktables dimensional safety and performance, applicable to work surface height and clearance
EN 1335-1:2020	Office furniture work chair compatibility, applicable to knee clearance dimensions for task chairs
EN 14073-2:2004	Office storage furniture safety requirements, applicable to mobile pedestal drawer performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to work surface load and durability testing for commercial use
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to mobile pedestal drawer load and cycle testing
ANSI/BIFMA X5.6-2016	Panel systems standard, applicable to cubicle partition strength and stability requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate work surfaces and cabinet components
GB/T 3327-2016	Performance and test methods for office desks, applicable to work surface load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to engineered wood component selection
GB/T 35607-2017	Green product assessment for furniture, applicable to low-VOC material requirements for office use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate work surfaces and cabinet components;
2. GB/T 3327-2016: Performance and test methods for office desks, applicable to work surface load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to engineered wood component selection;
4. GB/T 35607-2017: Green product assessment for furniture, applicable to low-VOC material requirements for office use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L140-WAL-2DMP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L140-WAL-2DMP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L140-WAL-2DMPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

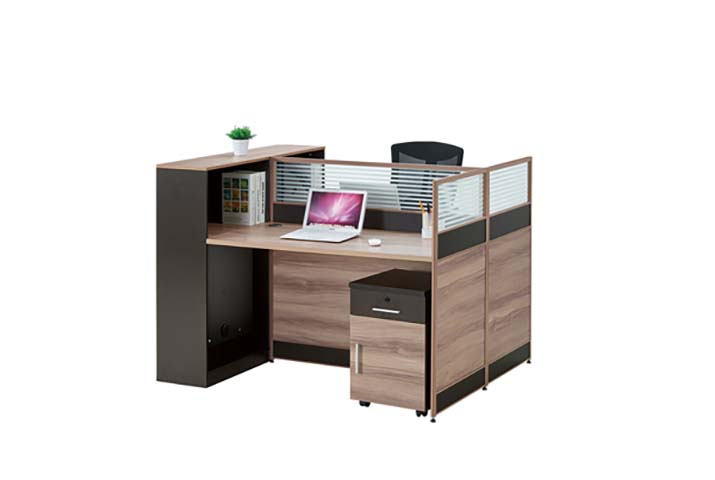

This unbranded single-person L-shaped office cubicle workstation desk (model CUB-L140-WAL-2DMP) delivers a structured, modern workspace solution tailored for professional environments. Visually, it features a cohesive walnut-toned laminate finish paired with matte dark gray aluminum partition frames, charcoal black lower partition trim, and frosted semi-transparent upper louvered polycarbonate panels that balance privacy and light flow. The 3-sided privacy divider system wraps the work zone, with lower solid panels blocking direct cross-sightlines for seated users and upper louvered panels allowing ambient light to filter through, reducing the enclosed feel of traditional cubicles. The layout integrates a 1400 x 1200 mm L-shaped work surface at a standard 750 mm height, a 400 mm wide integrated side storage cabinet running the full 1100 mm partition height, and a wheeled mobile pedestal that tucks neatly under the desk surface, with 700 mm width and 620 mm height of knee clearance for comfortable seated positioning. Constructed for durable daily use, the work surface uses E1 grade engineered wood with thermally fused walnut laminate and 2mm PVC edge banding, rated to withstand 2000 abrasion cycles for scratch resistance and support a 136 kg static load. Partition frames are powder-coated aluminum extrusions fitted with nylon leveling feet that adjust 15 mm to compensate for uneven flooring, paired with 32 mm thick partition panels. The included mobile pedestal is built from matching walnut laminate engineered wood with black laminate drawer fronts, brushed silver steel pulls, a central key lock, and 50mm black nylon swivel casters (two with locking brakes); each drawer supports a 30 kg static load, with one shallow stationery drawer and one deep drawer for A4 or legal size documents. The side storage cabinet includes an elevated top shelf, lower open compartment, and integrated cable pass-through ports, complemented by a round desktop grommet that routes power and data cords neatly below the work surface. The unit supports a 150 kg recommended user weight, has a net weight of 80 kg, and comes with a 5-year warranty. Practically, the workstation supports modular connection to additional matching cubicle units for expanded open-plan layouts, while the lockable mobile pedestal can be repositioned under the desk or moved to adjacent workspaces as needed. It is suitable for a wide range of settings: corporate open-plan offices to define individual work zones without permanent wall construction, small business administrative teams, call centers and shared offices requiring visual privacy with easy supervisor access, dedicated home professional offices, temporary project offices thanks to its knock-down design, and reception back-office support zones. For procurement, note each unit ships in 2 cartons with a 120 kg packaged gross weight and 0.8 m³ packaging volume, requires 40 minutes of assembly per set, and includes all required steel hardware for setup. The product has no external brand marking, making it easy to align with existing office decor schemes across varied commercial and residential work environments."}

Single-Person L-Shaped Office Cubicle Workstation Desk with Mobile Pedestal and Privacy Dividers Specifications
