PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Worktop distributed load	80 kg per seat
Pedestal drawer load	15 kg per drawer
Fixed cabinet shelf load	20 kg per shelf
Divider panel lateral load	15 kg at 1100 mm height
Complete workstation net weight	260 kg
Chair recommended user weight	120 kg
Floor loading	2.8 kPa total distributed footprint
Recommended assembly crew	2 workers
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop board	25 mm wood-grain melamine-faced particleboard with 2 mm impact-resistant PVC edge
Storage cabinet panels	18 mm white and oak melamine-faced particleboard with matching edge banding
Divider frame	40 x 20 mm rectangular light-grey powder-coated steel uprights and rails
Screen infill	Translucent frosted panel with horizontal louver slats and solid lower modesty board
Hardware	Silver drawer pull, black lock insert, cabinet hinges, leveling feet and steel screen connectors
Included task chair	Black framed chair with green mesh back, padded seat, fixed armrests, chrome gas lift and black nylon five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-workstation cross layout	Four inward-facing desks share a central post, allowing four users to work independently on one footprint
Integrated personal storage	Each workstation can be configured with a floor-standing pedestal containing one 140 mm drawer and one 500 mm door compartment
Privacy and sight-line control	450 mm high desktop screens separate adjacent users while retaining airflow and overhead supervision
Chair mobility and ergonomics	Swivel chair uses twin-wheel casters, gas-lift height adjustment and reclining mesh back within a 650 mm footprint

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1450 x 650 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for four-person administrative, data-entry or customer-support teams where compact footprint and personal storage are required
Call center or shared operations area	Low screens provide visual separation while retaining supervisor sightlines, ventilation and easy chair access

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements for the desk modules
EN 14073-2:2004	Safety requirements for office storage furniture used in the pedestals and fixed cabinets
EN 14074:2004	Test methods for moveable and fixed office storage units
EN 1022:2018	Seating stability standard relevant if the visible task chair is supplied with the workstation
EN 1335-2:2018	Safety, strength and durability requirements for office task chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk performance test for vertical load, leg strength and durability of the work surfaces
ANSI/BIFMA X5.9-2019	Storage cabinets, pedestal drawers, locks, slides and stability performance
ANSI/BIFMA X5.1-2017 (R2022)	Office chair safety and durability requirements for the supplied swivel chair
ANSI/BIFMA e3-2019	Furniture sustainability framework for panel emissions, materials and supplier documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable standards and test results require confirmation
GB/T 3325-2017	Applicable standards and test results require confirmation
GB/T 3326-2016	Applicable standards and test results require confirmation
GB 18580-2017	Formaldehyde emission limit for wood-based panels used in laminated boards
GB/T 10357.5-2011	Furniture surface physical and chemical test method for coating and laminate durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable standards and test results require confirmation;
2. GB/T 3325-2017: Applicable standards and test results require confirmation;
3. GB/T 3326-2016: Applicable standards and test results require confirmation;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels used in laminated boards;
5. GB/T 10357.5-2011: Furniture surface physical and chemical test method for coating and laminate durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CROSS4-OAK-WHT-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CROSS4-OAK-WHT-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CROSS4-OAK-WHT-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

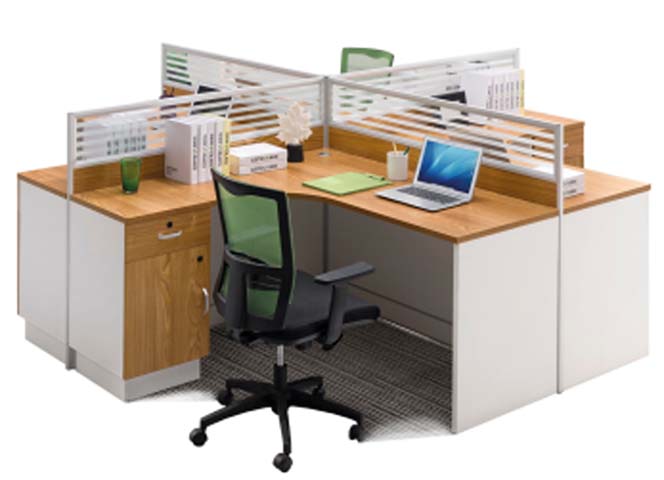

The Four-Person Cross-Shaped Panel Office Workstation is a clustered office system designed for four users who need individual work surfaces, controlled sight lines, and integrated storage in one coordinated footprint. Its cross layout places four inward-facing desks around a central post, giving each user a defined position while keeping the overall arrangement compact and orderly. Visually, the workstation combines wood-grain laminate worktops with white and oak-laminate storage, light-grey steel framing, and mixed divider panels. The desktop screens use a translucent frosted upper section with horizontal louver slats and a solid lower modesty board. These panels sit 450 mm above the work surface, separating adjacent users without creating a fully enclosed cubicle. The result is a low-panel cluster that preserves airflow, overhead visibility, and easy access while providing a degree of personal privacy. Construction is based on 25 mm melamine-faced particleboard for the worktops, finished with a 50 mm finished top thickness and 2 mm impact-resistant PVC edging. Storage cabinets use 18 mm white and oak melamine-faced particleboard with matching edge banding. The divider structure is supported by 40 by 20 mm rectangular, light-grey powder-coated steel uprights and rails, connected with steel screen connectors. The main support section is 80 mm with a 2 mm metal wall, and leveling feet are included for positioning on uneven floors. Each position can include a floor-standing storage pedestal with a 140 mm drawer and a 500 mm door compartment. Silver drawer pulls, black lock inserts, and cabinet hardware complete the storage units. Cable management is incorporated through 80 mm cable openings and a cable tray with 120 mm depth, supporting tidy routing around the central cluster. Each main seat provides 680 mm high and 900 mm wide knee clearance. The system is supplied with a black-framed task chair featuring a green mesh back, padded seat, fixed armrests, chrome gas lift, twin-wheel casters, and a black nylon five-star base. The chair swivels, adjusts in height, and reclines within a 650 mm footprint. Rated support includes 80 kg distributed worktop load per seat, 15 kg per pedestal drawer, 20 kg per fixed cabinet shelf, and a 120 kg recommended chair user weight. The complete workstation has a net weight of 260 kg. This layout is well suited to open-plan administrative teams, data-entry groups, customer-support areas, call centers, and shared operations floors where visual separation, supervisor sightlines, ventilation, and personal storage must be balanced. Procurement planning should allow for assembly and multi-carton delivery; reference details indicate two cartons per set, with a 40-minute assembly time. Packaging records also list alternative gross-pack details, so shipment configuration should be confirmed at order stage.

Four-Person Cross-Shaped Panel Office Workstation with Storage Pedestals Specifications
