PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation seating capacity	2 users
Worktop distributed load capacity	100 kg
Task chair user weight capacity	120 kg
Workstation net weight reference	145 kg
Partition lateral stability load	20 kg per panel
Drawer slide durability	50,000 cycles
Hinge and moving-hardware durability	100,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Storage cabinet carcass	18 mm melamine-faced particleboard in off-white and wood-grain finish
Partition panels	Light-gray framed panel with smooth opaque infill and aluminum-look top rail
Under-desk modesty panels	Rigid gray vertical panels forming the rear knee-bay enclosure
Hardware	Silver horizontal pull handle, drawer lock hole, hinges, cabinet connectors, and panel joining posts
Frame and support structure	Powder-coated metal or aluminum-look extrusion frame with floor-standing panels
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated work configuration	Two side-by-side work positions share a central divider while retaining individual curved knee openings.
Storage arrangement	Each workstation zone is supported by fixed cabinetry with at least one lockable drawer and a lower door compartment.
Privacy and screening	Low-level panels and a central vertical divider reduce visual distraction while preserving sightlines above 1100 mm.
Cable management	Desk ports, rear panel channels, and under-worktop clearance provide routing for laptop power and data cables.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suitable for two-person clerical, administration, or customer-service stations where privacy panels and individual storage are required.
Procurement configuration	Recommended as a bench-cluster module that can be repeated in rows using matching divider panels and shared cable routes.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CURVED-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CURVED-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CURVED-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

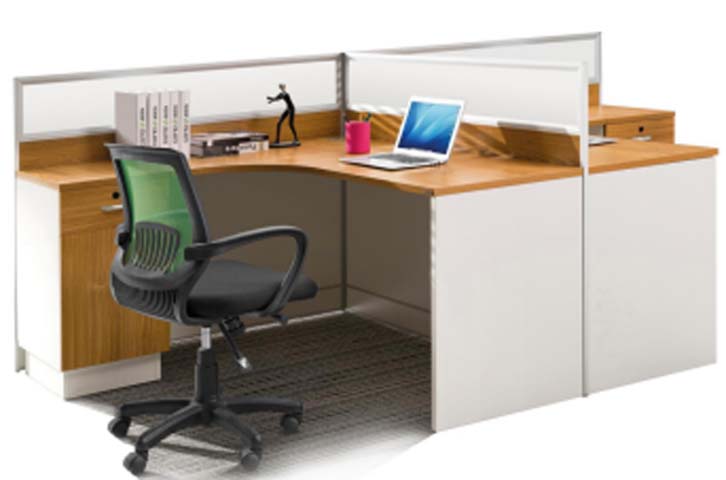

The Two-Person Curved Panel Office Workstation is an unbranded workspace system designed for two side-by-side users, with model reference WS-2P-CURVED-2800. Its layout combines wood-grain laminate work surfaces with light-gray framed partitions, a central vertical divider, and individual curved knee openings, creating a structured bench-style arrangement that separates users without closing the space above. The low-level panels reduce visual distraction while retaining sightlines over the screen, giving the workstation a balanced appearance suited to shared environments. Construction is based on a powder-coated metal or aluminum-look extrusion frame with floor-standing panels. The finished worktop is 50 mm thick, while primary panels are 25 mm thick and the load-bearing top may use a 40 mm composite build-up. Work surfaces and storage fronts use wood-grain laminate, partition infills are smooth and opaque, and the top rail has an aluminum-look finish. Storage cabinet bodies are made from 18 mm melamine-faced particleboard in off-white and wood-grain finishes, with rigid gray modesty panels enclosing the rear knee bays. Hardware includes silver horizontal pull handles, a drawer lock hole, hinges, cabinet connectors, and panel joining posts. Each user zone is supported by fixed cabinetry containing at least one lockable drawer and a lower door compartment. The drawer slides are rated for 50,000 cycles, while hinges and moving hardware are rated for 100,000 cycles. The worktop has a distributed load capacity of 100 kg, and each main seat position offers 680 mm high and 900 mm wide knee clearance. The support leg uses an 80 mm main section with 2 mm metal wall, and each panel is rated for a 20 kg lateral stability load. Cable management is handled through 80 mm desk ports, rear panel channels, an under-worktop cable tray with 120 mm depth, and clearance beneath the work surface for power and data routing. This workstation is appropriate for open-plan clerical, administration, or customer-service areas that require individual storage and modest screening. It can also be repeated as a bench-cluster module in rows using matching dividers and shared cable routes. Procurement teams should plan for a 145 kg net workstation weight, packaged as one set with reference documentation noting two cartons and logistics data also listing four cartons and 180 kg gross weight. The main top package measures 2500 by 1050 by 350 mm, with the return or pedestal packed separately, and reference assembly time is 40 minutes per set. Matching plastic mesh task chairs have a user weight capacity of 120 kg and may be specified as part of the seating package.

Two-Person Curved Panel Office Workstation with Storage Pedestals Specifications
