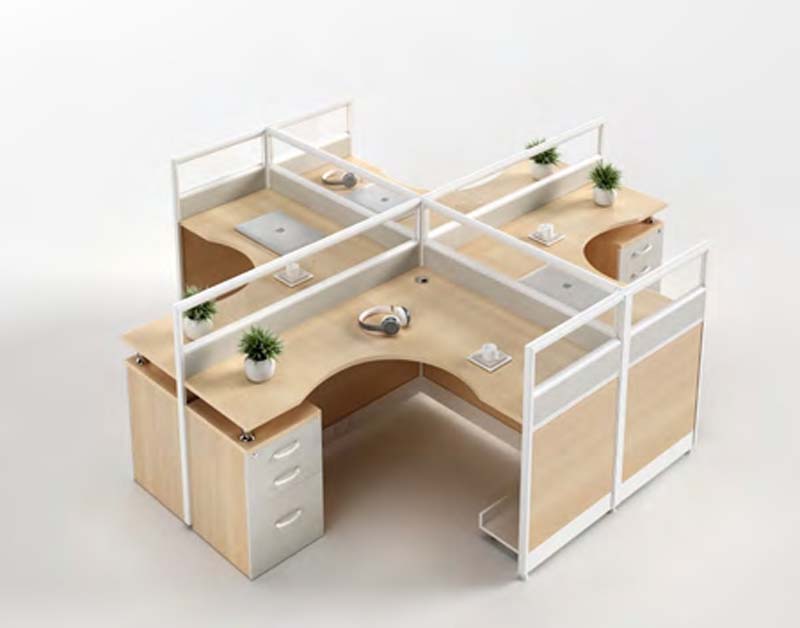

Product supplier4-Person Cross-Shaped Cubicle Workstation with Integrated Pedestals, 18mm E1 grade particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2400 × 1100 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation weight | 280 kg | |
|---|---|---|
| Desktop static load capacity per seat | 100 kg | |
| Partition panel lateral impact resistance | 150 N | |
| Recommended maximum user weight per seat | 110 kg | |
| Seam stitch pitch on fabric panels | 3 stitches per 10 mm | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | 18mm E1 grade particleboard core | |
|---|---|---|
| Work surface finish | 0.6mm thick light oak melamine veneer | |
| Partition frame | 1.2mm thick powder-coated white square steel tubing | |
| Lower partition panels | Fabric-wrapped 9mm MDF core panels | |
| Upper partition panels | 5mm frosted semi-transparent acrylic panels | |
| Drawer pedestal carcass | 16mm light oak/light grey melamine particleboard | |
| Drawer slides | 3-section cold-rolled steel ball-bearing slides | |
| Desk leveling feet | 15mm diameter nylon adjustable feet | |
| Cable grommets | ABS plastic round desk ports | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | 4 individual L-shaped workstations arranged in cross layout | |
|---|---|---|
| Storage function | 1 three-drawer pedestal per workstation, mounted under outer desk edge | |
| Cable management | One pre-installed round cable grommet per work surface | |
| Privacy function | 1100mm high partitions with solid lower section | |
| Visual openness feature | Frosted acrylic upper partition section | |
| Leveling adjustment | Adjustable nylon feet at all base support points | |
| Ergonomic cutout | Curved front desktop edge at knee position | |
| Assembly structure | Knock-down bolted connection between frames and panels | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office application | Suitable for 4-person team work zones in corporate open offices | |
|---|---|---|
| Call center application | Ideal for high-density customer service work areas | |
| Small business startup office | Suitable for small teams requiring integrated work and storage | |
| Government administrative office | Appropriate for civil service clerical workstations | |
| Educational institution staff room | Suitable for school administrative staff work areas | |
| Recommended configuration | Pair with ergonomic mid-back office chairs and under-desk cable trays |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture work surface dimensions | EN 527:2011 | |
|---|---|---|
| Office furniture stability testing | EN 14073:2004 | |
| Office furniture storage unit safety | EN 14074:2004 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Office desk performance standard | ANSI/BIFMA X2021 | |
|---|---|---|
| Office panel system performance | ANSI/BIFMA X2020 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Office desk dimensional standard | GB/T 3326 | |
|---|---|---|
| Wood-based panel furniture safety | GB 18584 | |
| Office furniture structural strength | GB/T 10357.1 |
Standardized tender description text
This product must meet the following technical requirements: 1. Office desk dimensional standard: GB/T 3326; 2. Wood-based panel furniture safety: GB 18584; 3. Office furniture structural strength: GB/T 10357.1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
