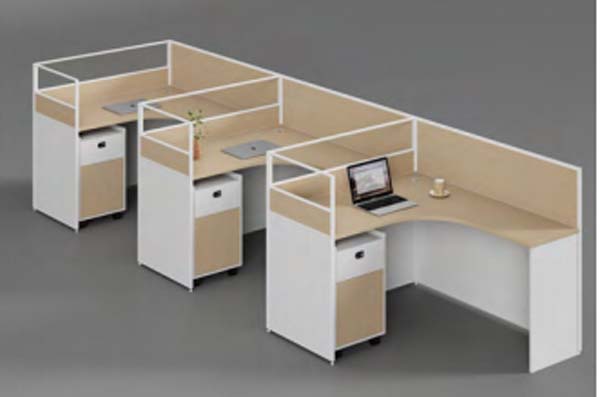

3-Person Curved Corner Modular Office Cubicle Workstation Set with Mobile Locking Pedestals (model CW-3P-LW1200) is listed under L-Shaped Office Desk. Dimensions: 3400 × 2740 × 1200 mm. Materials: 25mm E0-grade particleboard with melamine laminate, wear-resistant, stain-resistant finish. Load capacity: 30 kg. Product Features: two-tone,light,wood/white,finish,partial-height,privacy,partitions,modular,linear,3-bay,layout,integrated,mobile,storage,pedestals. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | CW-3P-LW1200 |
| Overall dimensions (W × D × H) | 3400 × 2740 × 1200 mm | overall set footprint | 3400 x 2740 x 1200 mm |
| standard work surface height | 750 mm | per-seat L-shaped work surface | 1400 x 1200 mm |
| privacy partition height | 1200 mm | seated knee clearance height | 650 mm |
| knee clearance depth | 550 mm | mobile pedestal dimensions | 400 x 500 x 600 mm |
| divider frame tube thickness | 2.0 mm | worktop panel thickness | 25 mm |
| pedestal caster diameter | 50 mm | work surface edge radius (curved corner) | 300 mm |
| Primary Component Thickness | 40 mm according to load-bearing role | Hardware / Moving-part Clearance | 5 mm operating clearance |
| total set net weight | 150 kg | per worktop static load capacity | 30 kg |
| pedestal drawer static load per drawer | 15 kg | surface abrasion resistance | 2000 cycles |
| leveling foot adjustment range | 15 mm | caster rolling durability | 20000 cycles |
| recommended maximum user weight per seat | 150 kg | warranty period | 5 years |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| work surface | 25mm E0-grade particleboard with melamine laminate, wear-resistant, stain-resistant finish | partition frame | 2.0mm thick white powder-coated steel tubular frame, rust-resistant treatment |
| privacy divider panels | 18mm thick MDF core with light wood grain melamine veneer, matte finish | upper partition trim | White steel square tube frame forming open upper railing for partial visual privacy |
| mobile pedestal body | 18mm thick melamine-faced particleboard with steel drawer slides, lockable top drawer | pedestal casters | 50mm diameter nylon swivel casters, two locking casters per unit |
| desk support feet | White powder-coated steel end panels with integrated adjustable nylon leveling feet | edge banding | 2mm thick PVC edge banding on all exposed panel edges, impact-resistant |
| hardware | Zinc-plated steel cam locks, connector bolts, and drawer slides, corrosion-resistant | Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | modular bay configuration | Three connected L-shaped curved work bays arranged in a linear in-line row |
| seated privacy partition | 1200mm high dividers separating adjacent workstations to reduce visual distraction | mobile storage pedestal | One 3-drawer lockable pedestal per seat, mounted on casters for under-desk repositioning |
| cable management access | Pre-punched desk grommets for routing power and data cables from work surface to floor | floor leveling adjustment | Adjustable feet on desk base panels to stabilize units on uneven office flooring |
| pedestal mobility lock | Two lockable casters per pedestal to fix storage unit position during use | reconfigurable layout | Modular connecting hardware allows rearrangement of bays for different office floor plans |
| ergonomic curved front edge | Rounded curved desk front edge reduces leg pressure during prolonged seated work | Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| open plan office areas | Suitable for medium to large open office floors creating defined individual workspaces without full wall construction | call center and administrative departments | Ideal for high-density staff seating requiring balanced privacy and easy team communication |
| startup and co-working spaces | Reconfigurable modular design supports flexible workspace rearrangement as team size changes | government and corporate back-office areas | Durable commercial-grade construction supports 8+ hours of daily heavy use |
| small business team work zones | All-in-one bundled set provides turnkey workstations for 3 staff with integrated storage | recommended pairing | Match with ergonomic mid-back office chairs, monitor arms, and under-desk cable trays for full workspace setup |
| applicable floor surface | Suitable for carpet, vinyl tile, and polished concrete office flooring with leveling foot adjustment | maximum recommended layout expansion | Add additional matching bays to form 6, 9 or larger linear workstation clusters |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3400 × 2740 × 1200 mm | |
|---|---|---|
| overall set footprint | 3400 x 2740 x 1200 mm | |
| standard work surface height | 750 mm | |
| per-seat L-shaped work surface | 1400 x 1200 mm | |
| privacy partition height | 1200 mm | |
| seated knee clearance height | 650 mm | |
| knee clearance depth | 550 mm | |
| mobile pedestal dimensions | 400 x 500 x 600 mm | |
| divider frame tube thickness | 2.0 mm | |
| worktop panel thickness | 25 mm | |
| pedestal caster diameter | 50 mm | |
| work surface edge radius (curved corner) | 300 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total set net weight | 150 kg | |
|---|---|---|
| per worktop static load capacity | 30 kg | |
| pedestal drawer static load per drawer | 15 kg | |
| surface abrasion resistance | 2000 cycles | |
| leveling foot adjustment range | 15 mm | |
| caster rolling durability | 20000 cycles | |
| recommended maximum user weight per seat | 150 kg | |
| warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| work surface | 25mm E0-grade particleboard with melamine laminate, wear-resistant, stain-resistant finish | |
|---|---|---|
| partition frame | 2.0mm thick white powder-coated steel tubular frame, rust-resistant treatment | |
| privacy divider panels | 18mm thick MDF core with light wood grain melamine veneer, matte finish | |
| upper partition trim | White steel square tube frame forming open upper railing for partial visual privacy | |
| mobile pedestal body | 18mm thick melamine-faced particleboard with steel drawer slides, lockable top drawer | |
| pedestal casters | 50mm diameter nylon swivel casters, two locking casters per unit | |
| desk support feet | White powder-coated steel end panels with integrated adjustable nylon leveling feet | |
| edge banding | 2mm thick PVC edge banding on all exposed panel edges, impact-resistant | |
| hardware | Zinc-plated steel cam locks, connector bolts, and drawer slides, corrosion-resistant | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular bay configuration | Three connected L-shaped curved work bays arranged in a linear in-line row | |
|---|---|---|
| seated privacy partition | 1200mm high dividers separating adjacent workstations to reduce visual distraction | |
| mobile storage pedestal | One 3-drawer lockable pedestal per seat, mounted on casters for under-desk repositioning | |
| cable management access | Pre-punched desk grommets for routing power and data cables from work surface to floor | |
| floor leveling adjustment | Adjustable feet on desk base panels to stabilize units on uneven office flooring | |
| pedestal mobility lock | Two lockable casters per pedestal to fix storage unit position during use | |
| reconfigurable layout | Modular connecting hardware allows rearrangement of bays for different office floor plans | |
| ergonomic curved front edge | Rounded curved desk front edge reduces leg pressure during prolonged seated work | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan office areas | Suitable for medium to large open office floors creating defined individual workspaces without full wall construction | |
|---|---|---|
| call center and administrative departments | Ideal for high-density staff seating requiring balanced privacy and easy team communication | |
| startup and co-working spaces | Reconfigurable modular design supports flexible workspace rearrangement as team size changes | |
| government and corporate back-office areas | Durable commercial-grade construction supports 8+ hours of daily heavy use | |
| small business team work zones | All-in-one bundled set provides turnkey workstations for 3 staff with integrated storage | |
| recommended pairing | Match with ergonomic mid-back office chairs, monitor arms, and under-desk cable trays for full workspace setup | |
| applicable floor surface | Suitable for carpet, vinyl tile, and polished concrete office flooring with leveling foot adjustment | |
| maximum recommended layout expansion | Add additional matching bays to form 6, 9 or larger linear workstation clusters |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: Safety and strength requirements for commercial office work surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture: Office work chair dimensional coordination for work surface height compatibility | |
| EN 14073-2:2004 | Office storage furniture: Safety requirements for mobile pedestal storage units | |
| EN 717-1:2004 | Wood-based panels: Formaldehyde emission determination by chamber test method for panel materials |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products: Safety and performance standard for commercial office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units: Safety and performance standard for mobile office pedestal cabinets | |
| ANSI/BIFMA X7.1-2022 | Formaldehyde and TVOC emissions standard for office furniture materials |
Standards applicable to China-market projects
| GB/T 3325-2017 | Metal office furniture: General technical requirements, applicable to steel frame and partition components | |
|---|---|---|
| GB/T 5237.1-2017 | Wrought aluminum alloy extruded profiles for architecture, applicable if aluminum frames are used | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels used in interior decoration, applicable to worktop panels | |
| GB 18583-2008 | Limit of harmful substances in adhesives for interior decoration, applicable to panel assembly adhesives | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables: Strength and durability, applicable to work surface load testing |
This product must meet the following technical requirements: 1. GB/T 3325-2017: Metal office furniture: General technical requirements, applicable to steel frame and partition components; 2. GB/T 5237.1-2017: Wrought aluminum alloy extruded profiles for architecture, applicable if aluminum frames are used; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in interior decoration, applicable to worktop panels; 4. GB 18583-2008: Limit of harmful substances in adhesives for interior decoration, applicable to panel assembly adhesives; 5. GB/T 10357.1-2013: Furniture mechanical performance test for tables: Strength and durability, applicable to work surface load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
