PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	1600 x 1400 x 1100 mm
Desktop height from floor	750 mm
Single user desktop depth	600 mm
Privacy divider height above desktop	350 mm
Knee clearance height under desktop	670 mm
Mobile pedestal dimensions	400 x 550 x 600 mm
Cable grommet diameter	60 mm
Desktop panel thickness	25 mm
PVC edge band thickness	2 mm
Steel support leg tube section	60 x 30 x 1.2 mm
Modesty panel height	400 mm
Caster diameter on mobile pedestal	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	113 kg
Unit net weight	160 kg
Recommended user capacity	2 people
Surface abrasion resistance	2000 cycles
Drawer slide cycle rating	50000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	E1 grade particleboard core with thermally fused melamine finish
Edge protection	2mm thick impact-resistant PVC edge banding
Support frame	1.2mm thick powder-coated steel rectangular tubing
Privacy divider	Fabric-wrapped acoustic fiberboard panel
Mobile pedestal construction	Melamine faced particleboard cabinet with integrated key lock
Pedestal casters	Hard nylon swivel casters, 2 with locking brake

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Rear desk grommets plus under-desk wire channel
Mobile pedestal storage	3 lockable drawers (stationery + hanging file)
Frame leveling	Adjustable foot glides on all steel legs
Modular connection	Pre-drilled bracket system for linking adjacent workstations

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Face-to-face layout for small teams in corporate or co-working spaces, supporting daily computer work
Startup and SME offices	Cost-effective modular workstation for 2 staff, with integrated filing storage to save floor space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable for structural performance testing
EN 1335-2:2009	Office chair safety (for companion seating, not included with desk)
EN 71-3:2019	Migration of certain elements, applicable for surface coating safety checks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable for load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable for mobile pedestal load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and cabinet construction
GB/T 3327-2016	Office desk performance test methods, applicable for stability and load verification
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable for E1 grade substrate verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction;
2. GB/T 3327-2016: Office desk performance test methods, applicable for stability and load verification;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1 grade substrate verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-FTF-WG-1600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-FTF-WG-1600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-FTF-WG-1600Open Export Tool

Quick Actions

Post an RFQ

Product Description

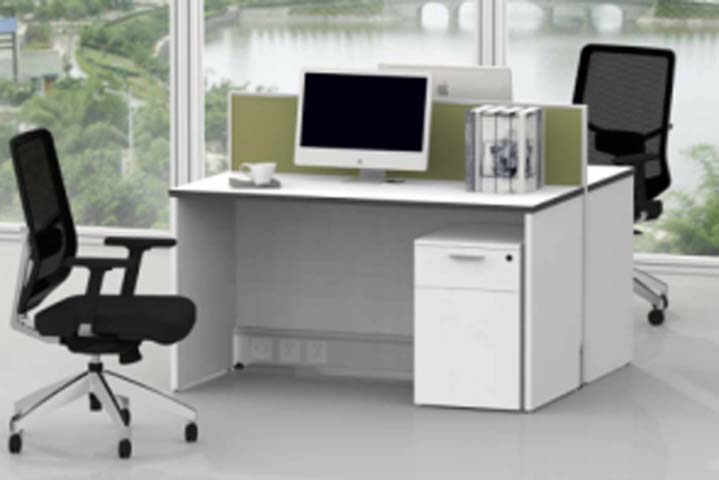

This 2-person face-to-face office workstation delivers a balanced, space-efficient setup for dual-user work environments, finished in a clean white-gray palette that complements modern interior schemes. Its symmetrical face-to-face layout positions two individual work surfaces opposite one another, separated by a fabric-wrapped privacy divider that rises above the desktop to create subtle visual separation between users without blocking open sightlines across the broader space. The unit sits on a sturdy support frame, with adjustable foot glides on all legs to accommodate uneven flooring, and includes a matching mobile pedestal that tucks neatly under either work surface to keep circulation paths clear. The workstation is constructed with durable, commercial-grade materials selected for long-term daily use. Each 25mm thick desktop features an E1 grade particleboard core finished with thermally fused melamine, edged with 2mm impact-resistant PVC banding to protect against scuffs and impact damage from regular use. The support structure uses powder-coated steel rectangular tubing for consistent structural stability, while the central privacy divider is formed from an acoustic fiberboard core wrapped in fabric. The included mobile pedestal uses the same melamine-faced particleboard construction as the desktops, fitted with hard nylon swivel casters (two with locking brakes) for easy repositioning, and an integrated key lock for secured storage. Practical functional features support seamless daily office use. Rear cable grommets paired with an under-desk wire channel keep power and data cords organized and out of sight. The mobile pedestal holds three lockable drawers, sized to hold stationery supplies and hanging file folders, eliminating the need for separate standalone storage units. A pre-drilled bracket system allows adjacent workstations to be linked together to create larger connected work layouts as team needs evolve. The desktop supports a static load capacity suited to standard office equipment including monitors, laptops, and desk accessories, with rated wear resistance for regular contact with office items, and drawer slides engineered for repeated, long-term use under standard storage loads. This workstation is well suited for open-plan corporate office zones, co-working spaces, and startup or small-to-medium enterprise offices where floor space efficiency is a priority. Its face-to-face configuration supports both focused individual computer work and quick, casual collaboration between the two paired users, and its modular design allows teams to scale seating arrangements incrementally. When planning procurement, note that each unit ships across multiple cartons, requires on-site assembly, and is delivered as an unbranded product, making it a flexible option for projects requiring consistent, cohesive workstation setups without brand-specific design constraints. Teams planning larger installations can leverage the pre-configured connection points to build uniform rows of dual workstations that maintain consistent layout and visual flow across entire work floors.

FurnDim

2-Person Face-to-Face Office Workstation with Privacy Divider and Mobile Pedestal Specifications

WS2-FTF-WG-1600
